Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 60Hz 120/240 Volt 186FA 5000 Watt Diesel Generator
US$ 300 - 530
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Saint
Model Number:
SMLD6500SE, Saint Meilan
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
AC Gasoline and Diesel Welder Electric GeneratorUS$ 510 - 670MOQ: 1 Set -
China Manufacturer !! Portable Diesel Generator 6kwUS$ 470 - 550MOQ: 1 Set
-
5KW Groupe Electrogene 6kva Power Silent Electric Factory Diesel Generator Set GensetUS$ 530 - 1,100MOQ: 1 Set
-
Low Price Small Electric DynamosUS$ 460 - 1,000MOQ: 1 Set
-
GF1 Quanchai 1-cylinder Portable Diesel GeneratorUS$ 475 - 2,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Saint
Model Number
SMLD6500SE, Saint Meilan
Output Type
AC Three Phase
Speed
1500RPM/1800RPM
Frequency
50/60Hz
Rated Power
5kva--150kva
Rated Voltage
110V/240V, 220V/380V, 230V/400V, 240V/415V
Rated Current
20-2000A
Specifications
Portable Generator1 Copper wire
2 Speed control
3 Machine manufacturing
4 EPA for US & Canada standard

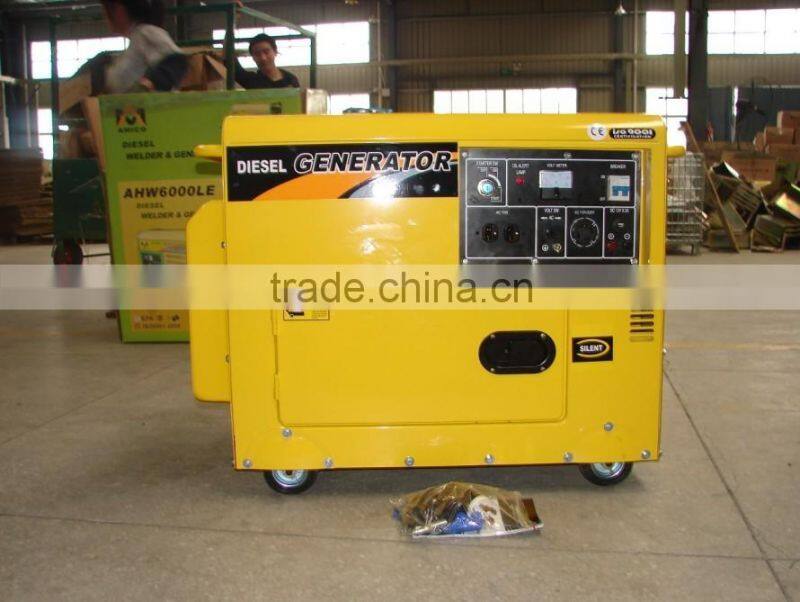

60Hz 120/240 volt 186FA 5000 watt diesel Generator

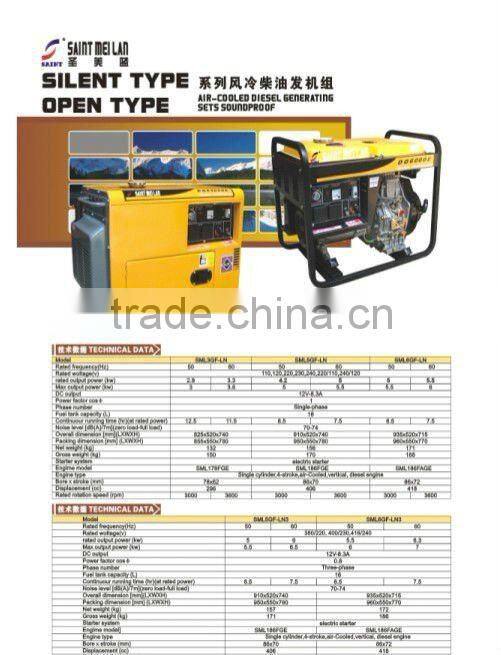

Open and Soundproof
| DIESEL GENERATORS | ||||
| OPEN FRAME Series | ||||
| Model | DG2200/E | DG3600/E | DG5000/E | DG6000/E-3 |
| FOB Fuzhou port,China | ||||
| Frame Type | Open | Open | Open/silent | Open/silent |
| Frequency(Hz) | 50 / 60 | 50 / 60 | 50 / 60 | 50 / 60 |
| Voltage(V) | 110~240 | 220/380 110/190 | ||
| Rated Power (kVA) | 1.8 / 2.0 | 2.8 / 3.0 | 4.5 / 5.0 | 4.5 / 5.0 |
| Max.powert(kVA) | 2.0 / 2.2 | 3.0 / 3.3 | 5.0 / 5.5 | 5.0 / 5.5 |
| Phase | Single | 3-phase | ||
| Power factor | 1.0 | 1.0 | 1.0 | 0.8 |
| Diesel Engine Type | 170F/FE | 178F/FE | 186F/FE | 186F/FE |
| Max. Power Output (hp) | 4.0HP | 6.0HP | 9.0HP | 9.0HP |
| Diesel Engine Type | Air-cooled, 4-stroke,Vertical,Single-cylinder, Direct injection combustion. | |||
| Bore*stroke(mm*mm) | 70*55 | 78*62 | 86*70 | 86*70 |
| Displacement (cc) | 211 | 296 | 406 | 406 |
| Compression rate | 20:01 | 20:01 | 19:01 | 19:01 |
| Ignition System | Explode Ignition | |||
| Lube oil system | Pressure splash Type | |||
| Starting System | Recoil or Electric | |||
| Lube oil capacity(L) | 0.75 | 1.1 | 1.65 | 1.65 |
| Fuel Tank Capacity(L) | 12.5 | 12.5 | 12.5 | 12.5 |
| Dimension(L*W*H)(mm) | 630*475*560 | 700*475*580 | 720*490*620 | 720*490*620 |
| N.W/G.W (kg) | 60/65 | 78/83 | 91/96 | 91/96 |
| 20ft(set) | 180 | 160 | 105 | 105 |
silent :144 pieces for 40ft container
open:108 pieces for 20ft container
Certificate:SONCAP,CE,COI,SGS,BV,EPA
Characteristics:
1. Powered by air-cooled 4-stroke diesel engine.
2. 12-volt DC auxiliary charging (car/boat battery).
3. Injection nozzle with electric control clique.
4. Low oil alert system shuts down the engine automatically.
5. Wheels for easy move.
6. Key operated ignition switch for the standard electric starter.
7. Standard equip with 24Ah dry battery.
8. Hydraulic-Magnetic circuit breaker.

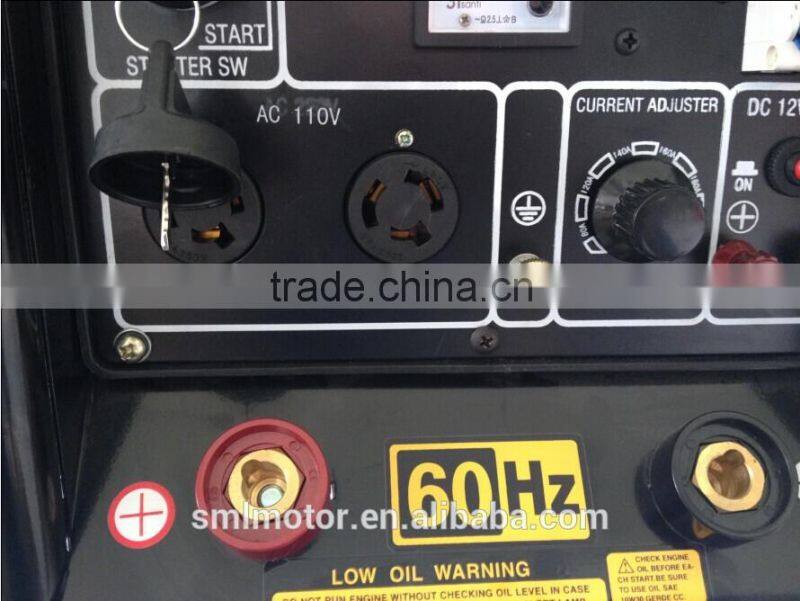

American /EU /UK plug optional:
Diesel Generator,Gasoline Pump,Welder, Pump,Protable Genset,Trailer

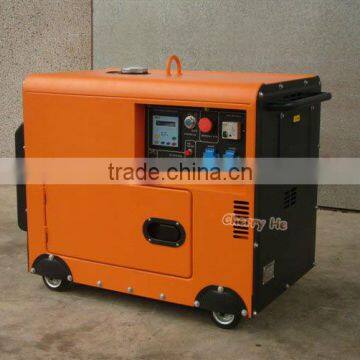

Silent type

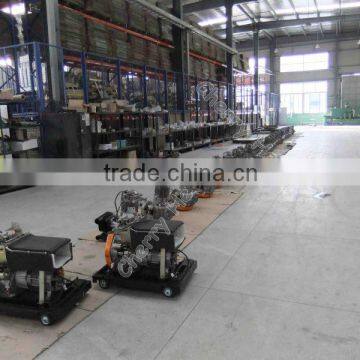

Factory near Fuzhou sea port, reduce delivery time to your country
