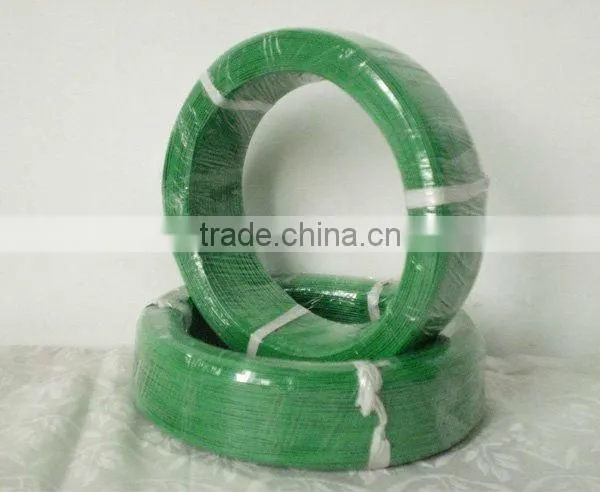

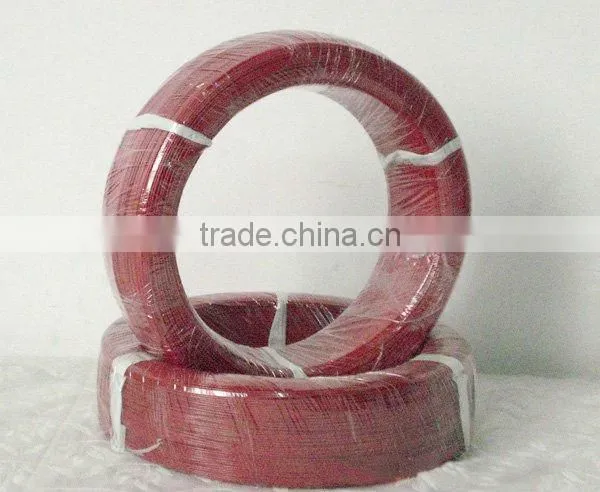

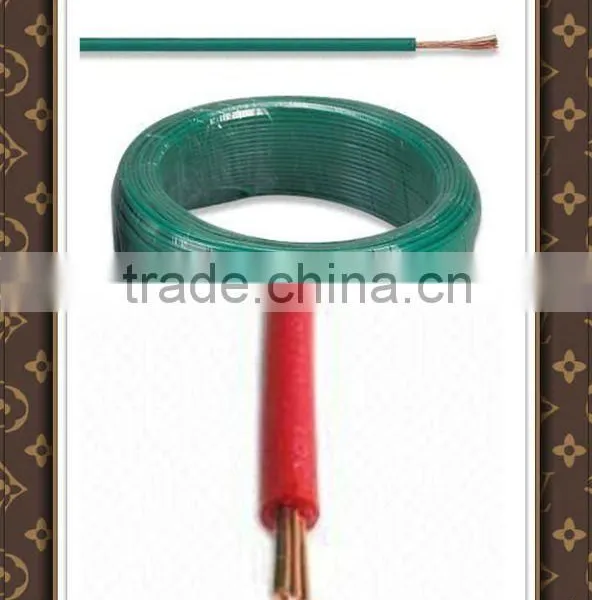

450/750 v Copper Core Pvc Flexible H05V-k Wire/ H07V-k Wire
US$ 0.12 - 9.86
MOQ: 10 Kilometers
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
taifa
Model Number:
H07V-k wire / H05V-k wire
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Supply Best Price and Floor Price CU Conductor Single Core CableUS$ 0.12 - 9.89MOQ: 10 Kilometers -
Hot Selling and Good Price ACSR Conductor TO ASTM B232US$ 5 - 9,999MOQ: 20 Kilometers
-
0.6/1kv Cu&al Conductor /pvc Insulated /SWA/pvc Sheathed Power Cable(NYCVVY Cable)US$ 8 - 99MOQ: 1 Kilometer
-
Quality Single Core Xlpe Insulation BS5467 CU STA XLPE CableUS$ 0.01 - 13.8MOQ: 1 Kilometer
-
BSEN60228 Bare Copper CableUS$ 0.01 - 25.4MOQ: 1 Kilometer
Place of Origin
Henan, China
Brand Name
taifa
Model Number
H07V-k wire / H05V-k wire
Type
Insulated
Application
Other, building
Conductor Material
Copper
Conductor Type
Stranded
Insulation Material
PVC
Specifications
1. Good quality & nice packing2. Small MOQ & competitive price
3. Delivery on time
4.free samples
flexible power wire,H07V-k wire
Technical data
- manufactured acc. to HD 21.3
- rated voltage U0/U:
- for H05V-K - 300 / 500 V
- for H07V-K - 450 / 750 V
- test voltage:
- for H05V-K - 2 kV
- for H07V-K - 2.5 kV
- insulation resistance at 70 oC, min 1x1010 Ω.cm
- maximum conductor temperature: + 70 oC
- max. conductor temperature at short circuit for 5 s : +160 oC
- temperature of environment: - 30oC to +50oC
- minimum temperature during installation: - 5oC
- minimum bending radius : (6xcable diameter..OK)
- for diameters up to 10 mm : 10D
- for diameters above 10 mm : 15D
(D - cable diameter)
- flame test: flame-retardant acc. to IEC 60332-1
Approval
Cable design
- Flexible multiwire annealed copper conductors ctor class 5 according to IEC 60228
- insulation: PVC compound type TI1 according to HD 21.1
Core identification
- black, blue, brown, grey, orange, pink, red, turquoise, violet, white, green and yellow
- a double-coloured insulation as a combination of above indicated colours is permissible
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2000
Factory Size
10,000-30,000 square meters
Total Employees
501 - 1000 People
