Hot Selling and Good Price ACSR Conductor TO ASTM B232

Name: Hot Selling and Good Price ACSR Conductor TO ASTM B232
Brand: taifa
SKU: 129218583

US$ 5 - 9,999 MOQ: 20 Kilometers

Key Specifications

Place of Origin:

Henan, China

Brand Name:

taifa

Model Number:

ACSR conductor TO ASTM B232

Henan Taifa Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name taifa

Model Number ACSR conductor TO ASTM B232

Type Bare

Application Overhead

Conductor Material Aluminum

Conductor Type Stranded

Insulation Material Other, bare

Specifications

ACSR bare conductor:
1)ISO9001-2000
2)BS215-2-70
3)IEC 61089
4)BS215-1-70

selling and good price ACSR conductor TO ASTM B232

1.Standard:ASTM B 232,BS215-1,DIN 48204,IEC 61089

2.Application:Aerial ACSR Cables is widely used as bare overhead power transmission and distribution lines.

3.Specification:Aerial ACSR Cables is composed by concentric-lay-stranded galvanized steel wires and aluminium wires

4.Code name:Sparrow,quail,pigeon,swan,etc

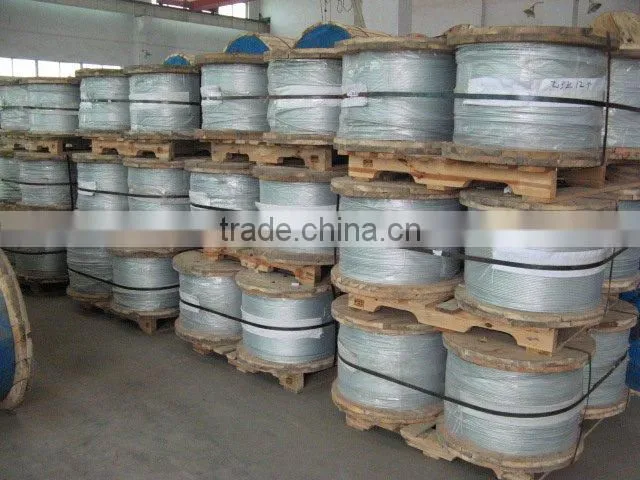

5.Packing:Wooden drum or iron-wooden drum.

Customer's special specification also can be satisfied.

ACSR

USA Sizes-ASTM B232

Code Name	Area					Stranding and diameter			Approximate Overall diameter		Linear Mass				Rated Tensile strength		Maximum D.C Resistance At 20
	Al		Steel	Total	Al		Steel	Al		Steel	Total
	AWG or MCM	mm²	mm²	mm²	mm		mm	mm		Kg/km		Kg/km	Kg/km	daN		Ohm/km
Turkey	6	13.29	2.19	15.48	6/1.68		1/1.68	5.04		37		17	54	524		2.1586
Swan	4	21.16	3.55	24.71	6/2.12		1/2.12	6.36		58.0		27	85	832		1.3557
Sparrow	2	33.61	5.61	39.22	6/2.67		1/2.67	8.01		92.0		44	136	1270		0.8535

British Sizes BS215-1

Code Name	Nominal Al Area	Stranding and wire diameter			Sectional Area of aluminium		Total Sectional Area		Overall Diameter		Linear Mass		Calculate Breaking Load		Calculate D.C Resistance At 20		Final Modulus of elasticity		Corefficient Of linear expansion
	mm²	Al	Steel	mm²		mm²		mm		Kg/km		daN		Ohm/km		hbar		/
Mole	10	6/1.50	1/1.50	10.62		12.39		4.50		43		414		2.706		7900		19.1x10-6
Squirrel	20	6/2.11	1/2.11	20.94		24.43		6.33		85		788		1.368		7900		19.1x10-6
Gopher	25	6/2.36	1/2.36	26.24		30.62		7.08		106		961		1.093		7900		19.1x10-6

German Sizes DIN 48204
