Good Performance and ZR H05V2-K H07V2-K H05V2-U H07V2-R Wire

Name: Good Performance and ZR H05V2-K H07V2-K H05V2-U H07V2-R Wire
Brand: Taifa
SKU: 129218367
Availability: InStock

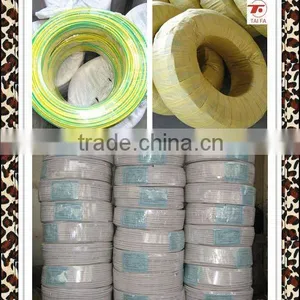

Good Performance and ZR H05V2-K H07V2-K H05V2-U H07V2-R Wire thumbnail-1

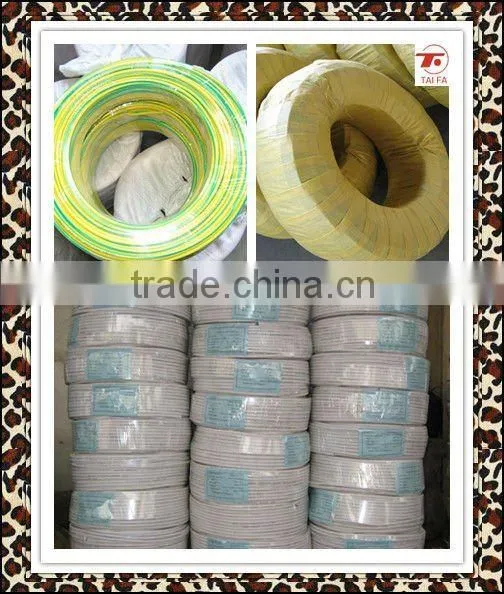

Good Performance and ZR H05V2-K H07V2-K H05V2-U H07V2-R Wire photo-1

US$ 1 - 20 MOQ: 15 Kilometers

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

Taifa

Model Number:

H05V2-K H07V2-K H05V2-U H07V2-R

Contact Supplier Request Quote Chat Now

Henan Taifa Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name Taifa

Model Number H05V2-K H07V2-K H05V2-U H07V2-R

Type Insulated

Application Overhead

Conductor Material Copper

Conductor Type Solid

Insulation Material PVC

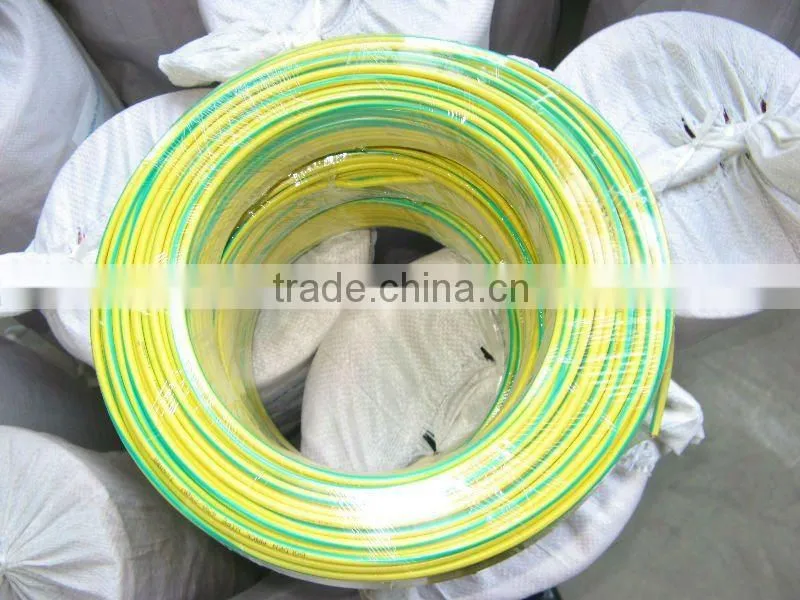

Good performance and ZR H05V2-K H07V2-K H05V2-U H07V2-R wire

PVC wire belong to the series of laying electric wires,which is mainly suitable for laying at the fixed places,used as connectors of drive,lighting,electric equipments,instrument and telecommunication equipments

2.Standards
The products adopt GB 5023.11997450/750V or below PVC Wire,JB 8734.15-1998 450/750V or under PVC insulated cables,electric wires and flexible wiresand Q/ZEL 02-2002Piastic insulated electric wires and cables.

3.Products

Type	Name	Laying place and requirement	Long term working temperature
227IEC01/05 BV BLV	Copper conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC01/05 BV BLV	Aluminum Conductor PVC insulated wires	Fixed laid indoors,conduits etc.	70
227IEC07 BV-90	Heat resistant copper conductor PVC insulated wires at 90	Mainly be laid at the places of high temperature environment and can be laid indoors,conduits.	90
BVR	Copper conductor PVC insulated flexible wire	Be for laying permanent place where flexible required	70
227IEC10 BW	Copper conductor PVC insulated PVC sheathed round wires	Fixed laid,fit for the places with high mechanical protection and moisture place.Can be laid in the air or underground.	70
BLW	Aluminum conductor PVC insulated PVC sheathed round wires
BWB	Copper conductor PVC insulated PVC Sheathed flat wires
BLWB	Aluminum conductor PVC insulated sheathed flat wires
227IEC02RV 227IEC06RV	Copper conductor PVC insulated flexible connector	Mainly used at middle and linht stylemoving electronics,home appliances,power and lighting and the places where flexible required.	70
227IECC42 RVB	Copper conductor PVC insualted flat flexible connector
RVS	Copper conductor PVC insulated flexible twisting connector wire
227IEC52 RW 227IEC53 RW	Copper conductor PVC insulated PVC sheated round flexible connector(light and common type)

Comprehensive Data table of BV BLV Type PVC insualted wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20		Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Cu	Al	Min insulated resistance at 70MΩ/km	Cu	Al
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Type BVR 450/750V copper conductor PVC insulated flexible wire

Nominal sectional area mm²	Conductor No/Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20	Min insulated resistance at 70MΩ/km	Weight Kg/km
2.5	9/0.41	0.8	4.2	7.41	0.011	33.0
4	19/0.52	0.8	4.8	4.61	0.009	48.0
6	19/0.64	0.8	5.6	3.08	0.0084	68.0
10	49/0.52	1.0	7.6	1.83	0.0072	115.0
16	49/0.64	1.0	8.8	1.15	0.0062	176.0
25	98/0.58	1.2	11.0	0.727	0.0058	272.0
35	133/0.58	1.2	12.5	0.524	0.0052	384.0
50	133/0.68	1.4	16.5	0.387	0.0051	510.0
70	189/0.68	1.4	16.5	0.268	0.0045	714.0
95	259/0.68	1.6	19.5	0.139	0.0035	965.0
120	259/0.76	1.8	22.0	0.153	0.0032	1210.0
150	259/0.85	1.8	25.0	0.124	0.0032	1510.0

Sincerely looking forward to your attention, more specification details about this type or others please contact me freely; maybe I’ll give you a big surprise.
