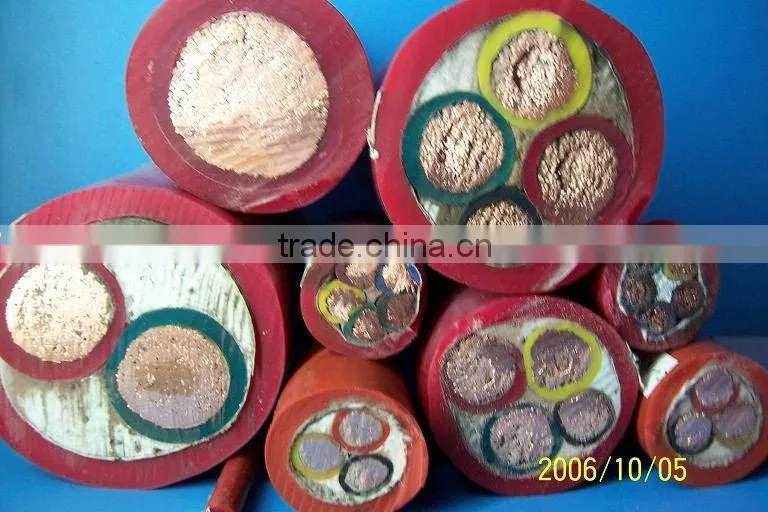

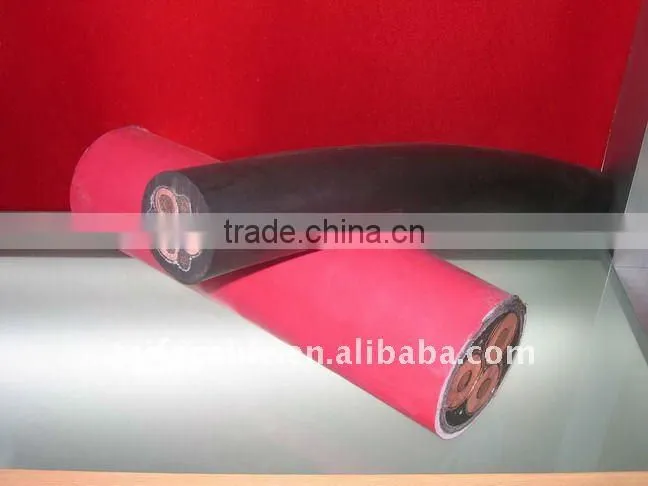

VDE standard Rubber Insulation Electric Cable H05VV-F H05VVH2-F cable
PVC EPR Insulation Electric Cable
1.Standards: VDE DIN
2.Voltage: 0.6/1kv
3.Insulation: XLPE/PVC/EPR
4.Construction: 0.75mm²-400mm² single core~6cores.
5.Color: Black, or as per your requirement
Applications
Rubber insulated wires and cable is suitable for power device with moving installation and rated voltage up to and including 450/750V.
Characteristics of EPR Rubber Cable
1. Rated power frequency voltage U0/U: 450/750V, 300/500V and 300/300V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
5. a. D>25mm The minimum bending radius is over 6 times of cable diameter.
b. D≤25mm The minimum bending radius is over 4 times of cable diameter.
Note: (D-Diameter of the cable)
Type and Specifiction
| Type | Name | Type | Rated voltage (V) | Cross-section (mm²) | No. of cores | Applications |
| YQ | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for light duty | YQ | 300/300 | 0.3-0.75 | 2--5 | Used for light portable electric equipment and tools |
| YQW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for light duty | YQW | ||||
| YZ | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for middle duty | YZ YZW | 300/500 | 1.5-6 | 2--5 | Used for various portable electric equipment and tools |
| YZW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for middle duty | |||||
| YC | NR/SBR rubber insulated NR/SBR rubber sheathed flexible cables (wires) for heavy duty | YC | 450/750 | 1.5-120 | 2--5 | Used for various portable electric equipment which |
| YCW | NR/SBR rubber insulated neoprene rubber sheathed flexible cables (wires) for heavy duty | YCW | can bear large mechanical force effect | |||
| YH | NR/SBR rubber sheathed arc welding cable | YH | - | 10-185 | 1 | For arc welding |
| YHF | Neoprene rubber sheathed arc welding cable | YHF |
Note: suffix W means cable has the properties of weather and oil resistance, suitable for the places outdoors and contaminated by the oil.
