Home > Electrical & Electronics > Optical Fiber, Cable & Wire > Electric Wire & Cable > Supply Copper Conductor Rubber Insulation Sheath Cable H05RR-F Rubber Cable

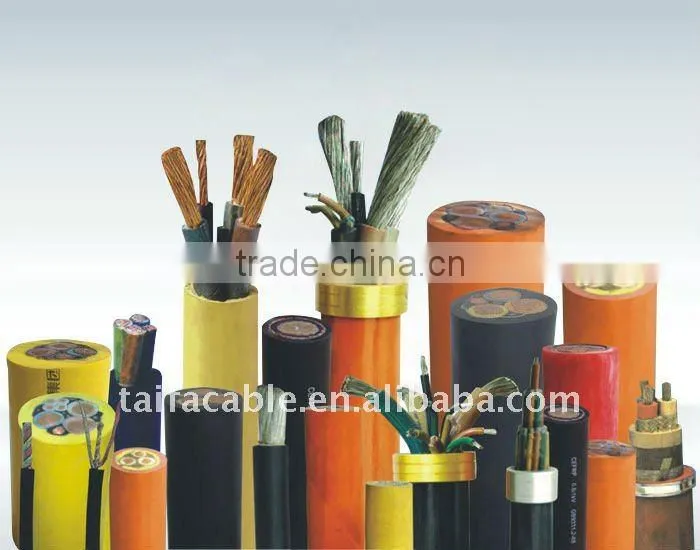

Supply Copper Conductor Rubber Insulation Sheath Cable H05RR-F Rubber Cable

Name: Supply Copper Conductor Rubber Insulation Sheath Cable H05RR-F Rubber Cable
Brand: taifa
SKU: 129217481

Supply Copper Conductor Rubber Insulation Sheath Cable H05RR-F Rubber Cable thumbnail-1

Supply Copper Conductor Rubber Insulation Sheath Cable H05RR-F Rubber Cable photo-1

US$ 0.1 - 99.99 MOQ: 1000 Meters

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

taifa

Model Number:

rubber cable

Contact Supplier Request Quote Chat Now

Henan Taifa Cable Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name taifa

Model Number rubber cable

Insulation Material Rubber

Type Low Voltage

Application Marine

Conductor Material Copper

Jacket Rubber

Supply copper conductor rubber insulation sheath cable H05RR-F Rubber cable

Product Description

1. Products applications:

Rubber cable is suitable for connection with household appliances, electric tools and various mobile electrical equipments of rated voltage up to and including 450/750V.

2. Products standards: BS EN 50525-2-21

3. Products types & names:

--H05RR-F Ordinary rubber sheathed cord.

--H05RN-F Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord (1-4 cores).

--H07RN-F Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable.

4. Products characteristics:

--Long-term working temperature of cables: EPR insulated cables should not be higher than 65°C,EPT/EPDM insulated cables should not be higher than 90°C.

--Such cables are more flexible and easy to move electrical appliances.

Secification

1 with 20-experiance in the cable & wire field

2 good reputation

3 best price and fast delivery

Characteristics

1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 300/300V.

2. Maximum permitted operating temperature of conductor is 60°C.

3. Permitted lowest working temperature is -35°C.

4. Cables can be used at places contaminated by mineral oil and fuel oil.

5. D>25mm

The minimum bending radius is over 6 times of cable diameter.

D≤25mm

The minimum bending radius is over 4 times of cable diameter.

(D-Diameter of the cable)

H05RN-F H05RR-F
No. of conductor	Conductor		Insulation thickness (mm)	Sheath thicness (mm)	Overall diameter (mm)	Max Conductor resistance at 20(Ω/km)
No. of conductor	Normal area(mm2)	Constructio (No./mm)	Insulation thickness (mm)	Sheath thicness (mm)	Overall diameter (mm)	Bare	Tinned
2	0.75	24/0.20	0.6	0.8	6.4±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	6.8±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.0	8.7±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.2±0.3	7.98	8.21
3	0.75	24/0.20	0.6	0.9	6.8±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	7.2±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.0	8.54±0.2	13.3	13.7
	2.5	49/0.25	0.9	1.1	10.8±0.3	7.98	8.21
	4.0	56/0.30	1.0	1.2	13.3±0.4	4.95	5.09
	6.0	84/0.30	1.0	1.4	15.4±0.5	3.30	3.39
4	0.75	24/0.20	0.6	0.9	7.7±0.2	26.0	26.7
	1.0	32/0.20	0.6	0.9	8.0±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.1	10.1±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.2	12.1±0.4	7.98	8.21
	4.0	56/0.30	1.0	1.3	14.8±0.5	4.95	5.09
	6.0	84/0.30	1.0	1.5	17.0±0.5	3.30	3.39
5	0.75	24/0.20	0.6	1.0	8.5±0.2	26.0	26.7
	1.0	32/0.20	0.6	1.0	8.9±0.2	19.5	20.0
	1.5	30/0.25	0.8	1.1	11.0±0.3	13.3	13.7
	2.5	49/0.25	0.9	1.3	13.4±0.4	7.98	8.21
