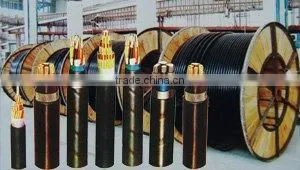

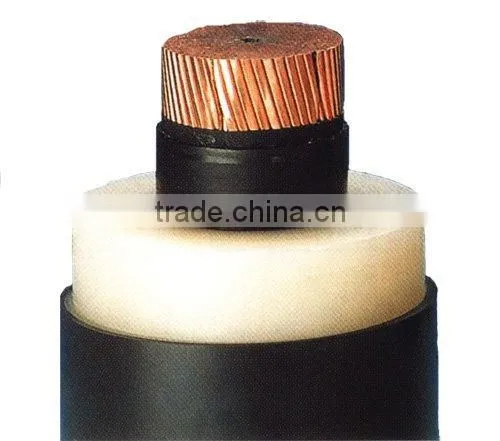

MV Power Cable single Core 12KV 400mm2 CU/XLPE/CTS/PVC
It applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 12/20KV. For outdoor and indoor installation in damp and wet locations, laid directly is the ground(when well protect in ducts, in trenches and in steel support brackets.
Product details:
Name: 12/20kV, Cu/XLPE/STA/PVC 3*240mm2
Conductor shape: Compression Circular
Standard: IEC 60502-1997
Or equivalent DIN, BS, AS/NZS, JIS, ASTM, IS, etc.
Package: Steel or wooden Drum
Additional Options: Halogen free, flame retardant, Low smoke, Anti-termite.
Technical details:
Conductor: Conductor cross section of 800mm2 or below is stranded through compacting round core, with better roundness and higher compacting coefficient. Conductor cross section more than 800mm2 is made by segment of Milliken method to minimize skin connecting and alternating current impedance and increase power transmission capacity of cable.
Insulation: XLPE.
Product line: CCV
Metallic screen/sheath: Copper wire and tape
Armor: Steel tape/wire
Outer sheath: PVC, MDPE, HDPE, LDPE
Characteristic of use:
- Allowable max. long-time operation temperature of cable conductor: 90°C
- Allowable Max. short circuit temperature of cable conductor (max. sustaining period not exceeding 5s): 250 °C
- Allowable Min. bending radius when laying cable, generally 20 times of the cable diameter
Main Cross sections for 26/35kV Power Cable:
Single core or three cores: 50mm2, 70mm2, 95 mm2, 120 mm2, 150 mm2, 185 mm2, 240 mm2, 300 mm2, 400 mm2
Quality and service:
Our motto: “Reputation based, Quality prioritized”, we wins customers trust for following reasons:
1, Quality control strictly follows ISO9001:2008 and ISO14001:2004, while guarantee that all products we supplied are totally new and unused. They are made of best material by first-class process techniques while tested and qualified by all specified testing items.
2, The Company promises to offer high-quality after-sale service to our customers. The service for cable fixation, installation and testing are available at customer request, if necessary technicians are sent to give instructions to the customers. After make sure it is the problem on quality we will repair or replace the defected products, the concerned expense or loss will be at our side.
3, The Company guarantees to deliver products in compliance with the bidding documentation.
4, The Company promises to offer cooperation and service according to the binding contract and requirements of supervision, testing for products.
1. Uo/U: 450/750V, 0.6/1KV, 1.8/3KV, 3.6/6KV, 6/10KV, 8.7/15KV, 12/20KV, 18/30KV, 21/35KV, 26/35KV
2. Standard applied: IEC, GB, BS, VDE, AS/NZS, UL or as per requirement
3. Working temperature: 70~125 °C
4. Conductor: solid or stranded pure annealed copper or aluminum
5. Insulation: XLPE or PVC or PE or LSZH
6. Cores: 1~5 cores, 3+1 cores, 3+2 cores, 4+1 cores for low voltage, 1 core or 3 cores for MV power cable
7. Cross section area: 1.0~630 sqmm for single core, 1.0~300 sqmm for multicores
8. Armoure: armore type is optional, SWA (steel wire armored) or STA (steel tape armored) for multicores, AWA (aluminum wire armored) or ATA (aluminum tape armored) for single core
9. Sheath: PVC or PE or Low smoking and halogen free compounding, etc.
10. Color: black or as per requirement
11. Flame retardant or Fire resistance or Low smoking and halogen free or other properties can be available
12. Wooden drum package or as per request
13. Certificates: ISO9001, ISO14001, OHSMS18001, CE, CB, CCC, SAA, etc
14. OEM can be available
15. Taifa cables have very good sales over the world, enjoying a very good reputation based on top quality and most competitive price and 5-star service.
| Type |
Name
|
Application | |
|
Cu Conductor |
Al Conductor |
||
|
YJV YJY |
YJLV YJLV |
XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
|
YJV22 YJV23 |
YJLV22 YJLV23 |
XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable |
For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
|
YJV32 YJV33 |
YJLV32 YJLV33 |
XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable |
For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
|
YJV42 YJV43 |
YJLV42 YJLV43 |
XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable |
Able to bear positive pressure and pulling force |
|
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|||
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
||||
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|||
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|||
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
