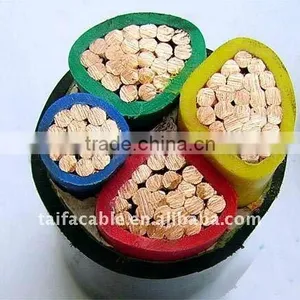

Made In China PVC Insulated House Wiring Specifications Electrical Cable Price
PVC Insulated Power Cable can be produced and provided according to Chinese standard GB/T12706-2002(equivalent to IEC 60505). The factory can also manufacture the products that are based on British Standard(BS) and other standards. In addition, under the requirement of customers we can design and manufacture the products that have special performance. The products are used in fixed laying on transmission and distribution electrical lines of 50 HZ AC rated voltage up to 6 kV.
Specific Property for Using
1. The long-time permissible working temperature of cable conductive core is not more than 70C.
2. During short circuit(max permanent time is not more than 5 seconds), the max temperature of cable conductor is not more than 165C.
3. The difference level of laying cable is not restricted. When laying the cable, ambient temperature is not lower than 0C.
4. They have good chemical stability, and properties of acid resistance, alkali resistance, salt resistance, oil resistance, solvent resistance and flame resistance.
5. Light weight, good bending property and easy installation and maintenance.
Technical Requirement
3.1 Type and Name
Type Name VV VLV Copper(aluminum)Conductor, PVC insulated and Sheathed Power Cable VY VLY Copper(aluminum)Conductor, PVC insulated, PE Sheathed Power Cable VV22VLV22 Copper(aluminum)Conductor, PVC insulated, Steel-tape Armoured, PVC Sheathed Power Cable VV23VLV23 Copper(aluminum)Conductor, PVC insulated, Steel-tape Armoured, PE Sheathed Power Cable VV32VLV32 Copper(aluminum)Conductor, PVC insulated, Fine Steel-wire Armoured, PVC Sheathed Power Cable VV33VLV33 Copper(aluminum)Conductor, PVC insulated, PE Sheathed Power Cable VV42VLV42 Copper(aluminum)Conductor, PVC insulated, Thick Steel-wire Armoured, PVC Sheathed Power Cable VV43VLV43 Copper(aluminum)Conductor, PVC insulated, Thick Steel-wire Armoured, PE Sheathed Power Cable
Application:
XLPE insulation PVC sheath power cable is used indoor or outdoor, in tunnel, cable furrow or pipe. It able to bear external mechanical forces, but the attractive force during laying.
Standards: IEC502, IEC332-3
Conductor: Cu
Insulation: PVC (Premature Ventricular Contraction )
Sheath: PVC (Premature Ventricular Contraction)
Sheath Color: Black or Gray (Bespoke cable)
Bending Radius:
Single core: 20D ± 0.05, multi-core: 15D ± 0.05
Temperature Rating: 0°C to 90°C
Flexible Cables
1.Flexible Cables in different technical specifications are available with us.
2.These cables have a contact construction, they are rugged, but flexible for industrial use and have high temperature insulation.
3.Our range of Multicore Flexible Cables can be availed in different types of insulation like Standard .
4.Heat resistant PVC up to105° C and Standard PVC Of FRLS, which finds varied application in the electrical industry.
5.Available in standard width, these multicore flexible cables are offered at competitive prices.
Features
1. Service Conditions for Flexible cables
This product is suitable for A.C voltage 450/750V or below domestic appliances,power-operated tlls and various portable electric equipments .
2. Performance Characteristics for Flexible cables
1) YZ model rated voltage U0/U is 300/500 V, YC model is 450/750 V .
2) Long time allow working temperature of wire core is not more than 60 .
3) W model cable has the property of durability , so it is suitable for outdoor work touching oil pollution .
4) ZR-model cable has the property of fire-resistance.
3. Model Name and Usage for Flexible cables
Other special characteristics: design and manufacture according to customers' request
The flexible cable is made from copper conductor, rubber insulation and rubber sheath.
1.The rubber sheathed flexible cable with rated voltage up to 450/750v is in accordance with the standard GB5013-1997.
2.Rubber insulated flexible wire and cable with rated voltage up to 450/750v is in accordance with the standard JB8735-1998.
4.Application
1.The long time permissible working temperature of conductor is 60 degree.
2.The product is applied to the drive devices, household electric instruments,
3. electrical equipments and electromotive tools at AC rated voltage up to and including 450/750v.
5.Features:
1) General rubber sheathed flexible cable
2) Moderate-size rubber sheathed flexible cable,
3) Heavy rubber sheathed flexible cable
4) Welder cable (rubber cable for electric welding machine)
6.Why choose us
1. We are a leading manufacturer specialized in the field of cable for more than 10 years.
2. We obtain the profession team in cable development & advanced, matured technology in production and quality control. Our daily production capacity is more than 100, 000 meters.
3. Guaranteed with the reliable quality and aftersale services, you will be delighted to find that imported directly from us is so easy and simple as you buy from you local suppliers but with very competitive prices and more choice.
4. Our Policy is Competitive price, Fast delivery, first-class service.
Name |
Laying Site and Requirements |
Long-time Permissible Working Temperature of Conductor(°C) |
Copper Conductor,PVC Insulated Wire |
Fixed laid in the circumstance of indoor, conduit etc. |
70 |
Aluminium Conductor,PVC Insulated Wire | ||
|
Heat Resistant Copper Conductor,PVC Insulated Wire at 90
|
Fixed laid in the circumstance of high temperature environment and can be laid indoor, conduit etc.
|
90 |
Copper Conductor,PVC Insulated Flexible Wire |
Fixed laid where flexibility is required. |
70 |
Copper Conductor PVC Insulated and PVC Sheathed Round Wire |
Fixed laid where high mechanical protection and moisture are required. They can be laid in the air or underground. |
70 |
Aluminium Conductor PVC Insulated and PVC Sheathed Round Wire | ||
Copper Conductor PVC Insulated and PVC Sheathed Flat Wire | ||
Aluminium Conductor PVC Insulated and PVC Sheathed Flat Wire | ||
Copper Conductor,PVC Insulated Flexible Connector |
Mainly used at middle-light type movable euipments, instrument and meters, household appliances, power and lighting and the places where flexibility is required. |
70 |
Copper Conductor,PVC Insulated Flat Flexible Connector | ||
Copper Conductor,PVC Insulated Flexible Twisting Connector | ||
Copper Conductor PVC Insulated and PVC Sheathed Round Flexible Connector(Light and Common Type) |
| Conductor | Insulation |
Electrical characteristic |
||||
AWG |
Conductor construction NO.* ΦMM |
Diameter mm |
Insulatin thickness mm |
Over diameter mm |
Condutor resistance 20°Cohm/km |
Permissible ampacity 20°C-AMR |
28 |
7*0.120 |
0.40 |
0.25 |
0.90 |
227.0 |
1.01 |
26 |
7*0.160 |
0.49 |
0.33 |
1.15 |
143.0 |
1.61 |
24 |
11*0.160 |
0.61 |
0.33 |
1.27 |
89.30 |
2.57 |
22 |
17*0.160 |
0.76 |
0.33 |
1.42 |
56.21 |
4.36 |
20 |
21*0.180 |
0.95 |
0.33 |
1.61 |
35.20 |
6.94 |
18 |
34*0.180 |
1.21 |
0.33 |
1.87 |
22.20 |
11.01 |
16 |
26*0.254 |
1.50 |
0.33 |
2.13 |
14.00 |
17.52 |
14 |
41*0.254 |
1.88 |
0.50 |
2.85 |
8.45 |
25.36 |
12 |
65*0.250 |
2.33 |
0.60 |
3.53 |
5.31 |
28.68 |
10 |
105*0.250 |
2.96 |
0.70 |
4.36 |
3.34 |
|
