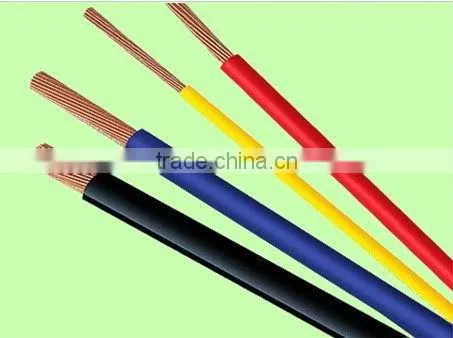

Best quality 2.5mm2 4mm2 6mm2 10mm2 16mm2 PVC insualted eleltric wire NYAF NYYHY cable
Application:
Nyyhy Nyaf cables are used for general purpose, as building wire for power, lighting and control.wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.
It applies to electrical power transmission and distribution lines with AC rated voltage UO/U up to and including 0.6/1KV. For outdoor and indoor installation in damp and wet locations, laid directly in the ground where excessive mechanical stresses are present in sloping and moving terrains and in vertical or inclined laying, as well as in locations susceptible to sliding.
Detailed Spec.:
1. Cores and sections
1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 and so on.
No. Of Core and Sectional Area(mm2) : 1 Core 1.5-800 25-800 25-1200 25-1200 35-1200 50-1200 50-1200 50-1200 2 Core 1.5-185 25-185 3 Core 1.5-400 25-400 25-400 25-400 35-400 50-400 50-400 50-400 4 Core 2.5-400 25-400 5 Core 2.5-400 25-400
2. Construction:
Conductor: Solid or stranded copper Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC) Filler: Polypropylene filament with lapped binding tape Binder: Binding tape Inner sheath: Polyvinyl chloride (PVC) Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA) Sheath: Polyvinyl chloride (PVC)
3. Nominal Section Area(mm2) :1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300 400 500 630 800
4. Operating Features: 1)The maximum conductor operating temperature: 90°C During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C Environment temperature should be no lower than 0°C for laying the cable. 2)Bending Radius of the Cable: Single Core Cable: Non Armored Cable 20D, Armored Cable 15D Cores Cable: Non Armored Cable 15D, Armored Cable 12D. Remarks: D means practical external diameter of the cable
5. Features
XLPE insulated power cabledo not has excellent electric, mechanical properties,but also has powerful resistance against chemical corrosion,heat resistance and enviromental stress resistance. Its structure is simple. The long period operating temperature is +90 °C. It is conveninet to use and can be laid with no restriction of different level.
XLPE insulated steel wire armoured power cable: XLPE/PVC insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology(peroxide, silane and irradiation crosslinking). The flame-retardant cable covers all kinds of low-smoke low-halogen low-smoke halogen free, and non-smoke nonhalogented and three classes of A, B, C.
Data sheet:
Conductor |
Thickness Of insulation |
Thickness Of Sheath |
Overall dia. |
Current rating |
Min. insulation resistance (at 70°C) |
Cable weight (Approx.) |
Standard Length |
||
|
Nominal cross- sectional area sq. mm |
No.& dia. of wires No./mm |
mm |
mm |
mm |
in air A |
in ground A |
Mohm-km |
kg/km |
m |
1 |
1/1.13 |
1.5 |
1.8 |
8.6 |
18 |
23 |
0.0207 |
80 |
100/C |
1 |
7/0.40 |
1.5 |
1.8 |
8.8 |
18 |
23 |
0.02 |
80 |
100/C |
1.5 |
1/1.38 |
1.5 |
1.8 |
9 |
23 |
29 |
0.0184 |
90 |
100/C |
1.5 |
7/0.50 |
1.5 |
1.8 |
9.2 |
23 |
29 |
0.0175 |
90 |
100/C |
2.5 |
1/1.78 |
1.5 |
1.8 |
9.4 |
30 |
38 |
0.0157 |
100 |
100/C |
2.5 |
7/0.67 |
1.5 |
1.8 |
9.8 |
30 |
38 |
0.0146 |
100 |
100/C |
4 |
1/2.25 |
1.5 |
1.8 |
10 |
40 |
49 |
0.0135 |
130 |
100/C |
4 |
7/0.85 |
1.5 |
1.8 |
10.5 |
40 |
49 |
0.0124 |
130 |
100/C |
6 |
7/1.04 |
1.5 |
1.8 |
11 |
51 |
62 |
0.0107 |
160 |
100/C |
10 |
7/1.35 |
1.5 |
1.8 |
12 |
68 |
82 |
0.0088 |
210 |
500/D |
16 |
7/1.70 |
1.5 |
1.8 |
13 |
91 |
107 |
0.0074 |
280 |
500/D |
25 |
7/2.14 |
1.5 |
1.8 |
14.5 |
120 |
138 |
0.0061 |
390 |
500/D |
35 |
19/1.53 |
1.5 |
1.8 |
16 |
149 |
168 |
0.0053 |
500 |
500/D |
50 |
19/1.78 |
1.5 |
1.8 |
17 |
179 |
198 |
0.0046 |
660 |
500/D |
Shipping:
1.Sample will send by DHL,UPS,FEDEX,TNT,EMS etc, you can choose any one.
2.For the big quantity you can choose your sea delivery company.
Feedback:
We will start the production and leave feedback once payment has been received from you after we reach the agreement.
If you have an issue with your purchase we will always be happy to discuss this and look to find an amicable resolution.
Please don’t worry about it and the quilty of cable.
