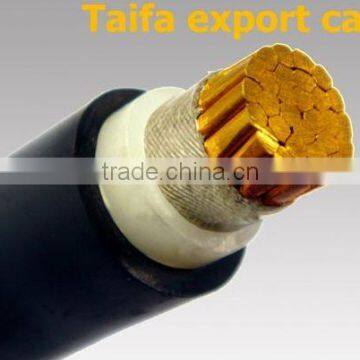

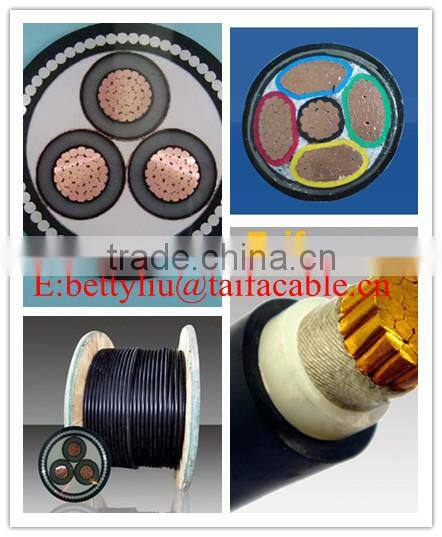

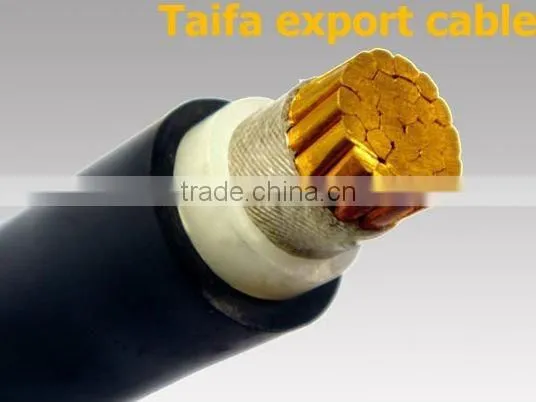

Bset Quality Copper Core XLPE insulated Power Cable 120mm2 150mm2 185mm2
Used for power transmission and distribution line with voltage rated at 35kV and below.
Compared with PVC Insulated Power Cable, xlpe power cable boasts not only characteristics of excellent electricity, mechanism, heat and aging-resistant, environment stress-resistant and chemical corrosion-resistant, but also simple structure, light weight, no restriction by laying drop, and high temperature allowance for long-term working.
Standards
International: IEC 60502-2, IEC 60228
China: GB/T 12706.2-2008
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 0.6/1kV, 1.8/3kV, 6/10kV, 8.7/10kV, 8.7/15kV, 12/20kV, 21/35kV, 26/35kV
Maximum Conductor Temperature: under normal (90°C), emergency (130°C) or short circuit no more than 5 s (250°C) conditions.
Min. Ambient Temp. 0°C, after installation and only when cable is in a fixed position
Min. Bending Radius: 20 x cable O.D for single-core non-armoured cables
15 x cable O.D for single-core armoured cables
15 x cable O.D for multi-core non-armoured cables
12 x cable O.D for multi-core armoured cables
Certificates
CE, RoHS, CCC, KEMA and more others at request
1. U0/U: 600/1000V
2. Standard applied: BS6346
3. Max working temperature: 70°C
4. Conductor
Class 2 stranded plain copper conductors Class 1 solid plain copper conductor
5. Insulation: XLPE
6. Armour: Galvanized steel wire
7. Cores: One to Five cores
8. Cross section area: 1.5mm2-630mm2
9. Bedding: PVC bedding
10. Sheath: PVC Sheath
11. Color: Black,or as per request
12. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available

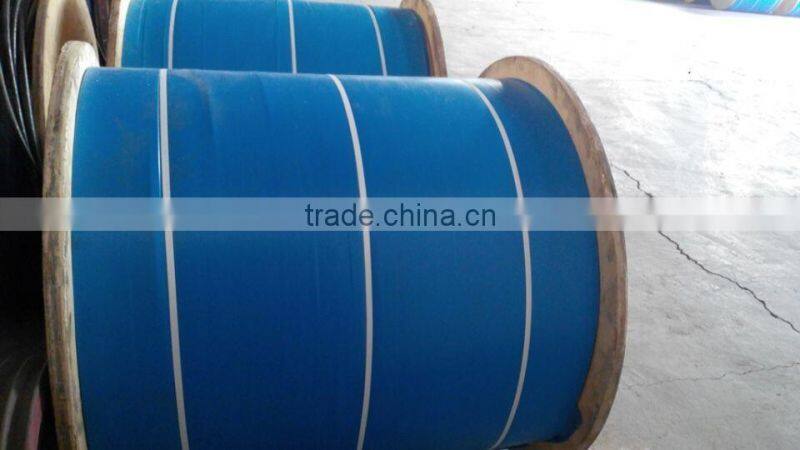

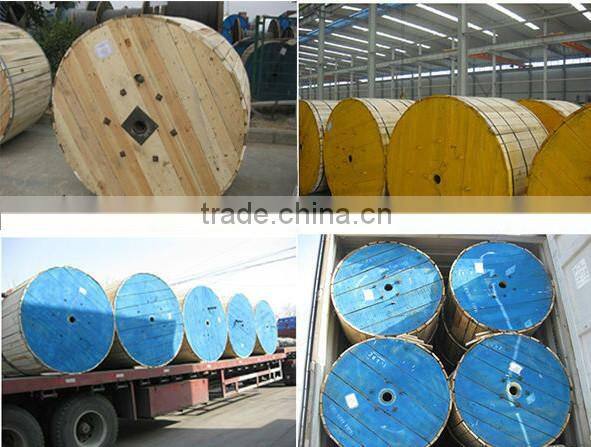

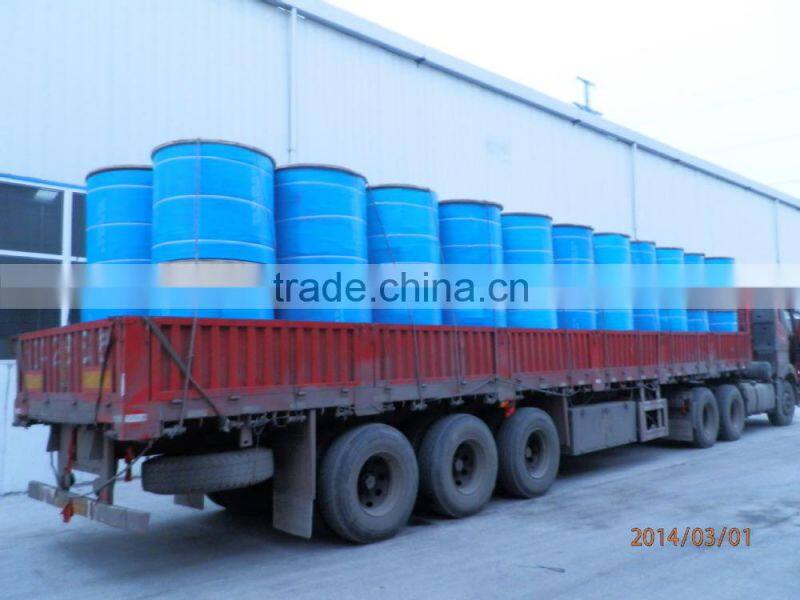

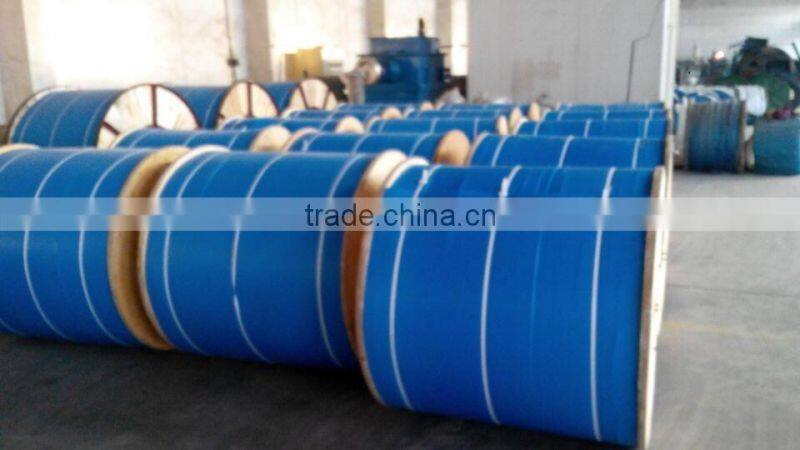

13. Packed in drum or as per request
14. Certification: Third party test reports available
15. OEM can be available
16. Henan Taifa is a reliable, large factory, has a good selling around world, enjoying a good reputation based on top quality and most competitive price and best service
1. xlpe underground electrical power cable 240 sq mm application:
Fire-resistant XLPE Insulation PVC sheah power cable is used indoor or outdoor, in tunnel, cable furrow or pipe.
1, Cross-section area can be up to 800sq.mm(copper or aluminum conductor)
2, Conductor long-time operating temperature is 90 degrees.
3, In short circuit conductor highest temperature should be not more than 250 degree
2. xlpe underground electrical power cable 240 sq mm Description:
Standard: IEC 60502
Conductor: Cu/ Aluminum
Conductor Screen: Semi-conductive
Insulation: XLPE(Cross-linked Polyethylene)
Insulation Screen: Semi-conductive
Armour: Steel Wire/ Steel Tape Armoured
Sheath: PVC or LSZH
Sheath color: Black
Bending Radius:
Single core: 20D±0.05, multi-core: 15D ±0.05
3. xlpe underground electrical power cable 240 sq mm parameter sheet:
|
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|||
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
||||
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|||
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|||
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
| Model | Name | Application of Power Cable | Cable Cores | Section area (mm) | |
| Copper Core | Aluminum Core | ||||
| YJV | YJLV | CU/AL Conductor, XLPE Insulated, PVC Sheathed Power Cable | XLPE insulation PVC/PE sheathed power cables are used for laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces and pulling forces. Single core cable can't laying in magnetic ducts . |
1C 2C 3C 4C 5C 3+1C 3+2C 4+1C |
1.5 | 1000 |
| YJY | YJLY | CU/AL Conductor, XLPE Insulated, PE Sheathed Power Cable | |||
| YJV22 | YJLV22 | CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power Cable | XLPE insulation PVC/PE sheathed steel-tape armored power cables can be buried directly .Able to bear external mechanical forces but large pulling forces. | ||
| YJV23 | YJLV23 | CU/AL Conductor, XLPE Insulated,Steel-Tape Armored,PVC Sheathed Power Cable | |||
| YJV32 | YJLV32 | CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PVC Sheathed Power Cable | XLPE insulation armoured power cables can apply to shafts,water and soil. Able to bear moderate pulling forces. | ||
| YJV33 | YJLV33 | CU/AL Conductor, XLPE Insulated,Thin Steel-Wire Armored,PE Sheathed Power Cable | |||
| YJV42 | YJLV42 | CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PVC Sheathed Power Cable | Steel-wire armored,PVC/PE Sheathed Power Cables are apply to shafts,water and soil.Able to bear large pulling forces. | ||
| YJV43 | YJLV43 | CU/AL Conductor, XLPE Insulated,Thick Steel-Wire Armored,PE Sheathed Power Cable | |||
