Factory direct sale XLPE Insulated Power Cable With Rated Coltage 11kv XLPE power cable
armoured power cable 240 sq mm, power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting .
1. U0/U: 600/1000V
2. Standard applied: BS6346
3. Max working temperature: 70°C
4. Conductor
Class 2 stranded plain copper conductors Class 1 solid plain copper conductor
5. Insulation: XLPE
6. Armour: Galvanized steel wire
7. Cores: One to Five cores
8. Cross section area: 1.5mm2-630mm2
9. Bedding: PVC bedding
10. Sheath: PVC Sheath
11. Color: Black,or as per request
12. Flame retardant or fire resistance or Low smoking and Halogen free or other property can be available

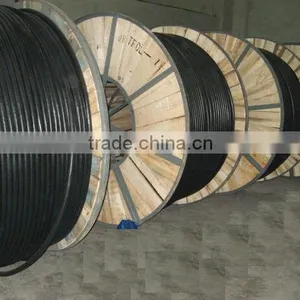

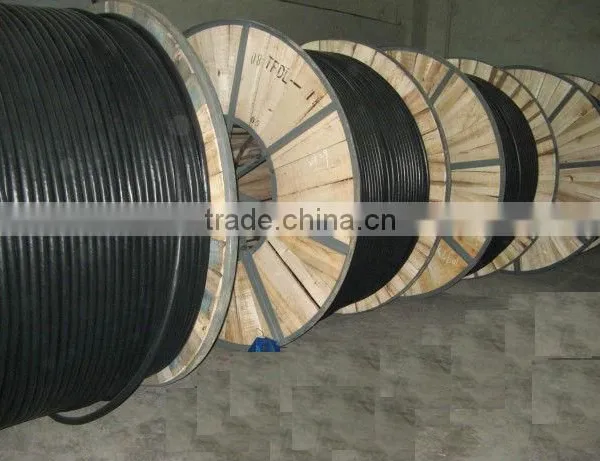

13. Packed in drum or as per request
14. Certification: Third party test reports available
15. OEM can be available
16. Henan Taifa is a reliable, large factory, has a good selling around world, enjoying a good reputation based on top quality and most competitive price and best service
1. xlpe underground electrical power cable 240 sq mm application:
Fire-resistant XLPE Insulation PVC sheah power cable is used indoor or outdoor, in tunnel, cable furrow or pipe.
1, Cross-section area can be up to 800sq.mm(copper or aluminum conductor)
2, Conductor long-time operating temperature is 90 degrees.
3, In short circuit conductor highest temperature should be not more than 250 degree
2. xlpe underground electrical power cable 240 sq mm Description:
Standard: IEC 60502
Conductor: Cu/ Aluminum
Conductor Screen: Semi-conductive
Insulation: XLPE(Cross-linked Polyethylene)
Insulation Screen: Semi-conductive
Armour: Steel Wire/ Steel Tape Armoured
Sheath: PVC or LSZH
Sheath color: Black
Bending Radius:
Single core: 20D±0.05, multi-core: 15D ±0.05
3. xlpe underground electrical power cable 240 sq mm parameter sheet:
|
1st class |
0.6/1 |
1.8/3 |
3.6/6 |
6/10 |
8.7/15 |
12/20 |
18/30 |
21/35 |
|||
2nd class |
1/1 |
3/3 |
6/6 |
8.7/10 |
12/15 |
18/20 |
- |
26/35 |
||||
1 Core |
Section area(mm2) |
1.5-800 |
25-800 |
25-800 |
25-800 |
35-800 |
50-800 |
50-800 |
50-800 |
|||
2 Core |
Section Area(mm2) |
1.5-185 |
/ |
/ |
/ |
/ |
/ |
/ |
/ |
|||
3 Core |
Section area(mm2) |
1.5-400 |
25-400 |
25-400 |
25-400 |
35-400 |
50-400 |
50-400 |
50-400 |
|||
4 Core |
Section Area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
|||
5 Core |
Section area(mm2) |
2.5-400 |
25-400 |
/ |
/ |
/ |
/ |
/ |
/ |
