rgbw smd5050 4 in 1 led strip 5050 addressable rgbw led strip
- Control IC included, supporting numerous color-change effects
- Pcontrol by SD controller, Arduino, DMX512, Artnet
- Flexible PCB 5V low voltage input
- PCB Color: White
- Absolutely addressable , each IC built inside RGB LED
- 5M per roll, Customer’s size available also
| Product Name | Addressable RGBW/RGBWW led pixel strip |
| IC Chip | SK6812 |
| LED Chip | Epistar 5050 RGBW 4 in 1 LED chip |
| LED Qty | 60LEDs/m |
Luminance(MCD: K/M) |
RGBW: 6000-7000, RGBWW: 2700-3200 |
| Wavelength | R:620-630, G:515-525, B:460-470 |
| Voltage | DC5V |
| Power(/m) | 20±1W |
| IP Rate | non-waterproof, silicon tube waterproof, heat-shrink tube waterproof |
| Printed circuit board thickness | 0.25mm |
| Pixel pitch(mm) | P16mm |
| Connector | 3pin JST male and female connectors, waterproof male and female connector |
The excellent light and user-friendly designs make LED strip perfect for numerous applications, i.e cove
lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.
They can be a good choice for lights for hotels, restaurants, night clubs, coffee/wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc

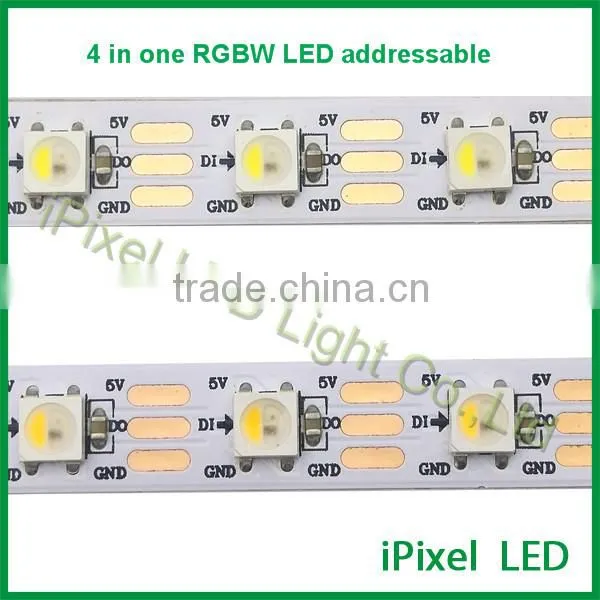

From this picture, you can see this strip is R G B W(WW) 4 in 1 LED chip, there have an IC built in this 5050 Chip,
so it's addressable full color tape, it's dc5v, 60leds/m .
and it's 1IC & 1LED chip, so can be cuttable each LED, and cut the length as your customized length.

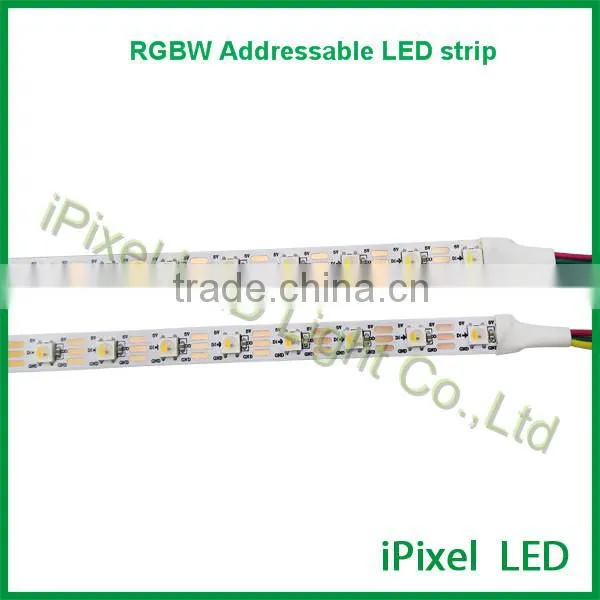

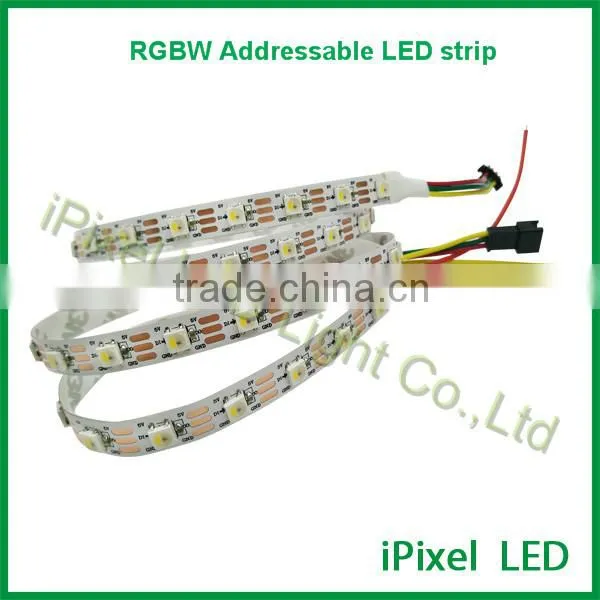

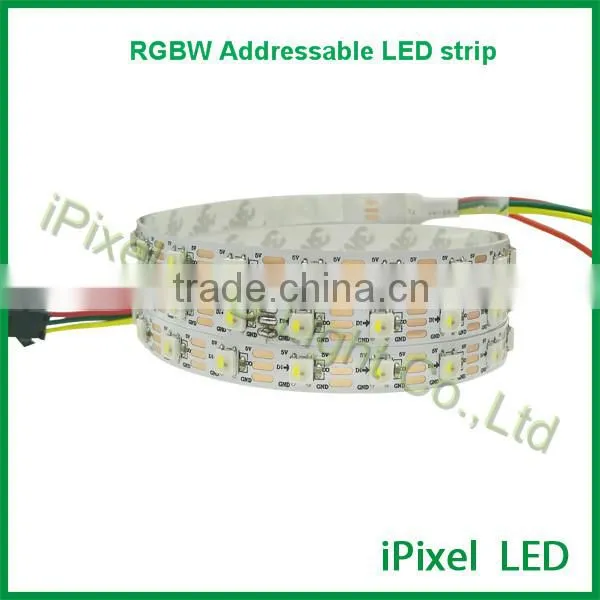

This is non-waterproof IP20 version, you can see it with 3M adhesive back side, and the both end is heat shrink tube for protect weld pad, it's very easy to install.
Of course we can work it with waterproof version, such as siclin tube waterproof, and heat-shrink waterproof version.

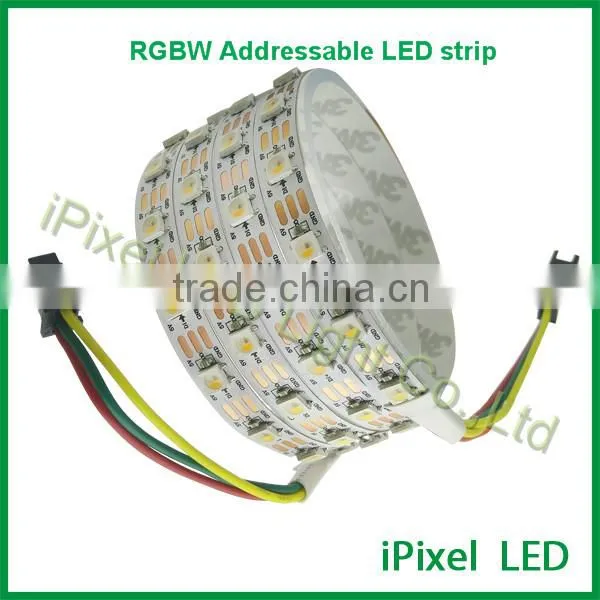

this version also with 3M adhesive back side, and you can also select silicon clip and screw for install. it's up to you .

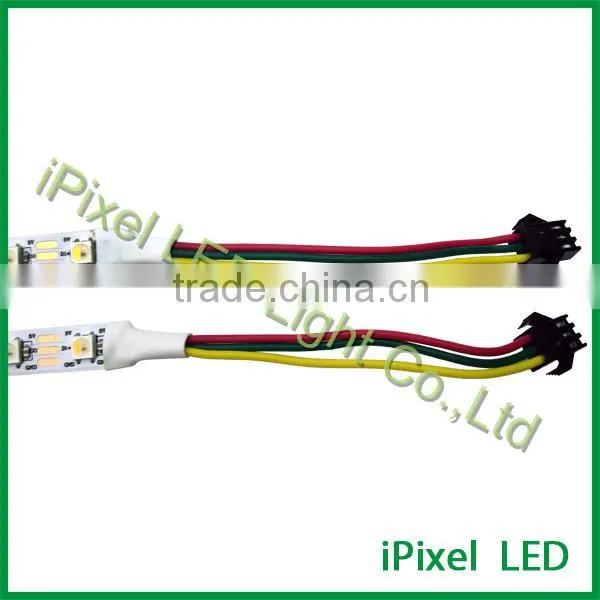

From this picture, you can see very clearly this tape with 3pin JST male and female connectors. also it can be
waterproof connectors.
This 3 weld point means GND-, DC5V+, DAT.
The compared between RGBW/RGBWW led strip and addressable RGBW/RGBWW led strip
| Type | RGBW/RGBWW led tape | Addressable RGBW/RGBWW led tape |
| LED Chip | SMD5050 RGBW(WW) 4 in 1 LED chip | SMD5050 RGBW(WW) 4 in 1 LED chip |
| IC chip | no IC chip | with SK6812 IC built-in |
| Voltage | DC12/24V | DC5V |
| Cuttable | per 3/6 LEDs per group | each LED |
| Connector | 5pin connector | 3pin connector |
| PCB Width | 12mm | 10mm |
| Color | RGBW, RGBWW | Addressable RGBW/RGBWW |
RGBW/RGBWW flexible led strip
Addressable RGBW/RGBWW flexible led strip
