144 Leds APA102 Dc5v Addressable Strip

144 Leds APA102 Dc5v Addressable Strip thumbnail-1
144 Leds APA102 Dc5v Addressable Strip thumbnail-2
144 Leds APA102 Dc5v Addressable Strip thumbnail-3
144 Leds APA102 Dc5v Addressable Strip photo-1
144 Leds APA102 Dc5v Addressable Strip photo-2
144 Leds APA102 Dc5v Addressable Strip photo-3
US$ 16 - 20 MOQ: 1 Meter
Key Specifications
Get Latest Price
LED Light Source:
SMD5050 Epistar Chip
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen baoan port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD5050 Epistar Chip
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 29
Lamp Luminous Flux(lm) 18-20lm/led
Color Temperature(CCT) 2700K-7000K
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 20000
Lamp Body Material PVC
Certification CE
Emitting Color Changeable
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S144102
feature

1. Addressable full color led strips ——APA102C IC built-in.

2. Individually control —— 1 IC & I LED chip.

3. Standard Reel Length: 5meter/roll, also can be customized.

4. Cutted: 1 integrated RGB LEDs per segment, can be cutted per 1LED.

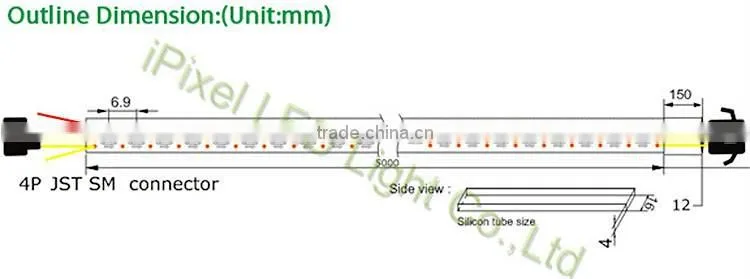

                    you can cut this stuff pretty easily with wire cutters, there are cut-lines

                    every 0.65''/0.7cm(1 LED each), Solder to the 0.1'' copper pads and you're good to go.

5. Power supply: You must use a 5V DC power supply to power this striup,

                              do not use higher than 6V or you can destroy the entire strip.

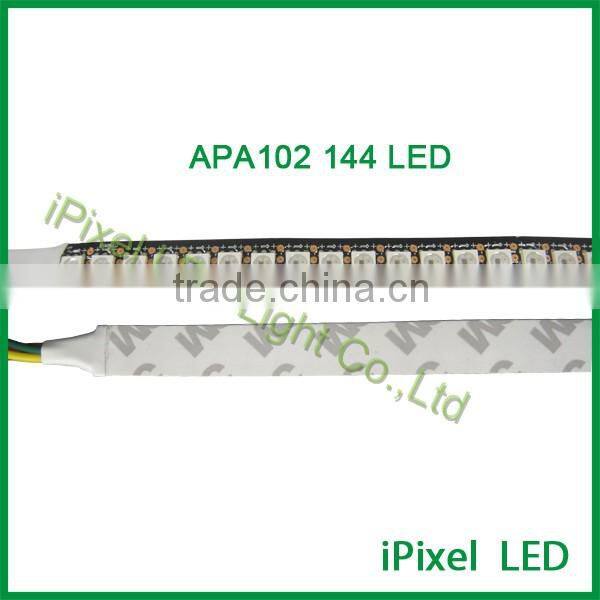

6. Sticky: non-waterproof: with 3M adhesive on back side for sticky;

                  waterproof: screw+silicon clip, or 3M adhesive back side.

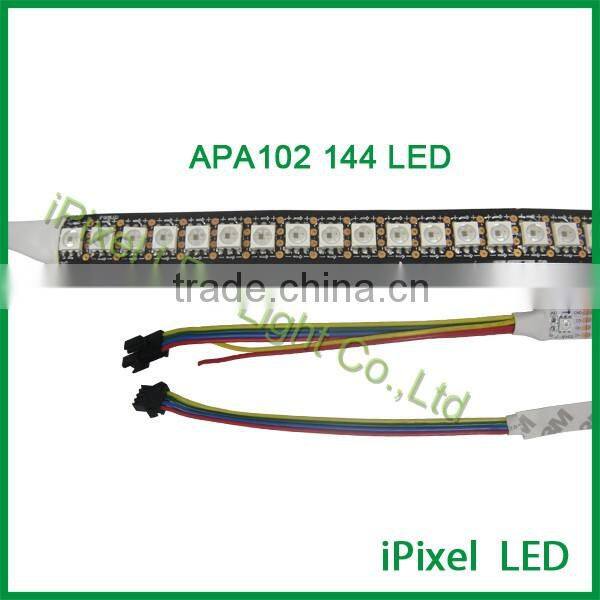

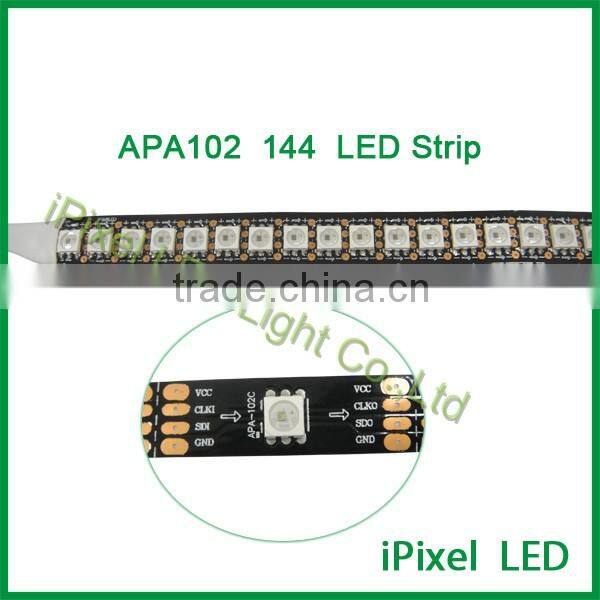

7. Connectors: 4PIN JST female and male connectors, DAT, CLK, DC5V+, GND-.

these LEDs have 2 wires (input and output) for sending data - one clock pin and one data pin. That means you need two pins, not one, to control DotStars. Because the clock and data is seperated, you can use any processor speed or type to control these strips, and you don't have to worry about being careful with the timing.

8. Type:

This is the 60 LED-per-meter version, We have 30 LED/m, 60 LED/m and 144 LED/m.

          Waterproof——white PCB; Waterproof——black PCB

          Non-waterproof ——white PCB; Non-waterproof——black PCB

9. LED Brightness: Red ~600mcd, Green ~500mcd, Blue ~150mcd

10. Brand: iPxel LED

Applicaton
LED chip  SMD 5050RGB led chip
IC chip  APA 102(APA102 built in 5050 RGB led strip )
LED Quantity 144 leds/m
Input Voltage DC5v
Watts 35.6w/m
IP Rate ip65
PCB Color white/black
View Angle 140 °

Standard Reel Length

 5m/roll ,also can be customized
PCB Width 10mm
Operating Temperature -20 ~ +40°C
Storage Temperature -40 ~ +80°C
pictures

144 leds APA102 dc5v addressable strip144 leds APA102 dc5v addressable strip144 leds APA102 dc5v addressable strip144 leds APA102 dc5v addressable strip144 leds APA102 dc5v addressable strip

FAQ



1. What are the advantages of iPixel LED and its items?

A. iPixel LED is one of professional Pixel LED light manufactures.

B. We keep focus on the LED with IC which could change the color, we don't produce any spot light, pane

   or bube....

C. We already had worlfd wide customers and most of them located in Euro and North America and Mexico

D. We had 5 years experience with the pixel LED and a sales team



2. Could you  provide the OEM or ODM service?

We had rich experience in OEM or ODM service according to customer demad to design and delelop

the products. Actually, 90% of our item are customized.

Pease visit our website to view the DIY products.



3. Can you design a animation before we do business ?

 We have a animation and program designer in company, even if we dont had business before,

 we will be happy to do a animation design or program file for you and it will be free.

 It's a part of business to help someone built something.



4. Do all items produced by your company?

90% our products are make production in our workshop by ourselfs.

We sorcing the different controllers, LED power supply etc from supplier.



5. How much tax should i pay for custom when we buy goods from you?

Different country had different inport policy, you need to figure out with custom

we don't have a exact anwer about this, but most of country 25% on the invoice value
