Addressable Ws2812b 4mm PCB Width Led Strip for Some Special Project

Addressable Ws2812b 4mm PCB Width Led Strip for Some Special Project thumbnail-1
Addressable Ws2812b 4mm PCB Width Led Strip for Some Special Project thumbnail-2
Addressable Ws2812b 4mm PCB Width Led Strip for Some Special Project photo-1
Addressable Ws2812b 4mm PCB Width Led Strip for Some Special Project photo-2
US$ 1 - 9.9 MOQ: 5 Meters
Key Specifications
Get Latest Price
LED Light Source:
Epistar 3535 SMD LEDs
Type:
Flex LED Strips
Input Voltage(V):
DC5V
Contact Supplier Request Quote Chat Now
Shenzhen IPixel LED Light Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source Epistar 3535 SMD LEDs
Type Flex LED Strips
Input Voltage(V) DC5V
Lamp Power 14.4W/M
Lamp Luminous Flux(lm) 20-22LM
Color Temperature(CCT) Addressable
Working Temperature(℃) -40, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
Certification CE
Emitting Color Other, IC RGB full color, addressable RGB
Place of Origin Guangdong, China
Brand Name iPixel LED
Model Number S602812-4

addressable ws2812b 4mm PCB width led strip for some special project





Product Description

Part Number

S602812-4

Light Source

Epistar 3535 SMD LEDs

Beam Angle

120 deg

Operating Voltage

DC5V

Watts

15W

Standard Reel Length

1meter/roll, also can be customized

Pcb Width

4mm

LED Pitch

16mm

Emitting Color

RGB

IC(PCS/LED)

WS2811

Current(A/1m)

3A

MCD per(1m/60LED)

R:24000 G:42000 B:11400

IP Rate

IP20/IP65

Pixel Resolution(Dot/ square meter )

3600

Operation Temperature -40℃-40℃

-40℃-40℃

Storage Temperature -10℃-50℃

-10℃-50℃



Product Features

- Control IC included, supporting numerous Color-change effects;
- Pcontrol by SD controller,Arduino,DMX512,Artnet;
- Flexible PCB 5V low voltage input;
- PCB Color: White;
- Absolutely addressable ,each IC built inside RGB LED;
- 5M per roll,also Customer’s length available









Detail Images

You can see from this picture, it with very narrow PCB width, just 4mm.

the have 3 point each weld pad, DC5V+, GND, DAT

and it's addressable, and you can cut each LED by yourself.

addressable ws2812b 4mm PCB width led strip for some special project

you can check the back side from this picture, we will stick the 3M adhesive on back side, you can stick the strip by yourself, very convenient

and the both end covered the heat shrink tube

addressable ws2812b 4mm PCB width led strip for some special project

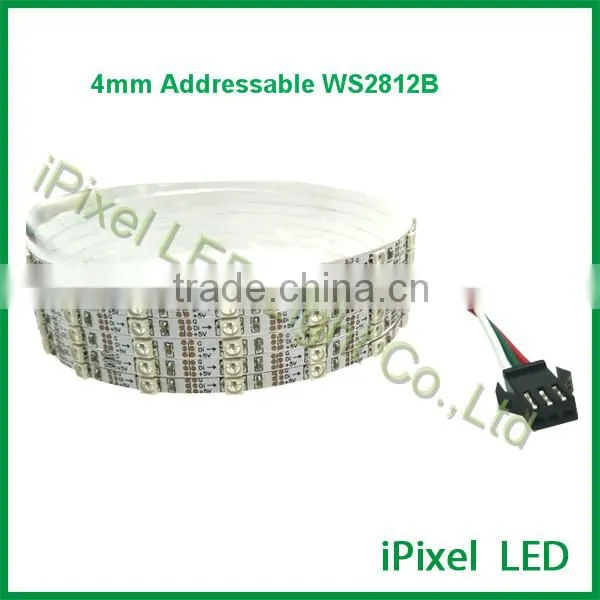

Yes use 3PIN JST female and male connectors

addressable ws2812b 4mm PCB width led strip for some special project

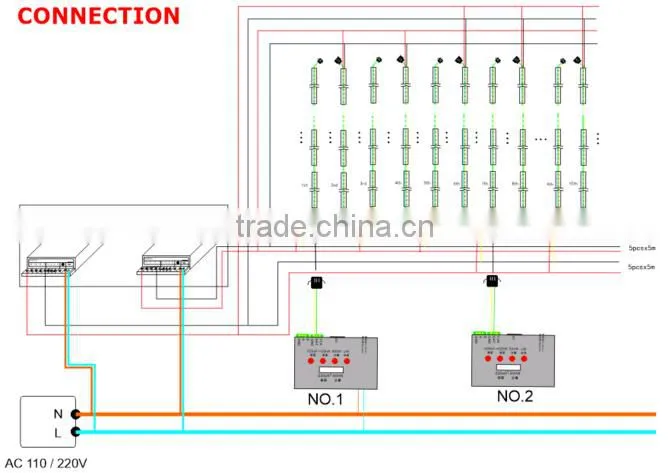

Connection Map



SPI signal: LED Strip+LED power supply +LED controller

DMX control: LED Strip+LED pwer supply+DMX Controller+DMX decoder

LED controller: T- series SD card controller, RF remote controller, DMX controller, Arduino.

(offline / PC online)

LED power suppply: power supply, T- series, A- series power supply...(waterproof / non-waterproof)

 addressable ws2812b 4mm PCB width led strip for some special projectaddressable ws2812b 4mm PCB width led strip for some special project
