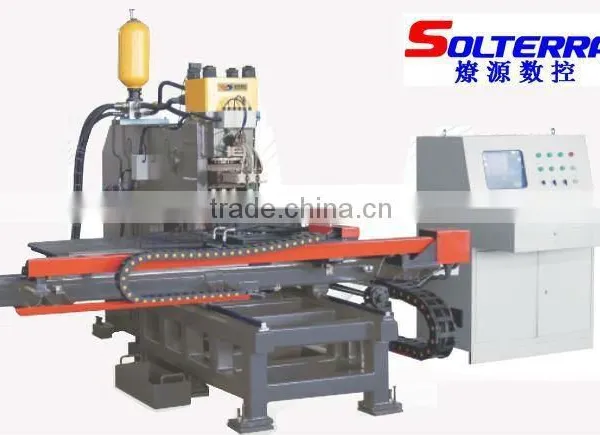

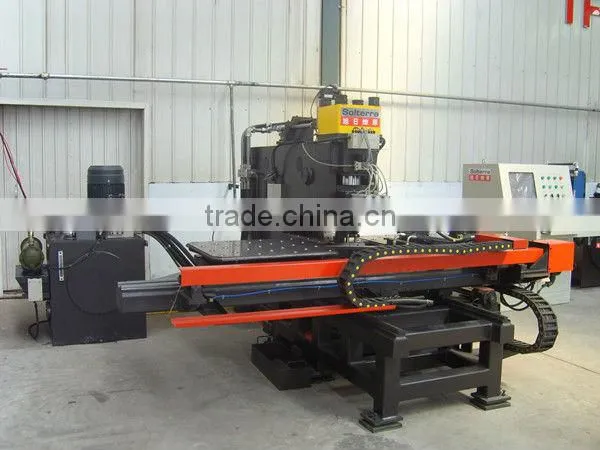

Large Plates CNC Plates Punching Machine
Detailed Product Description
1.Certificates: CE, ISO9001 2.After-sale Services: available to service machinery overseas
3.CNC Punching Machine for Plates
Product Details .
| Name | Large Plates CNC Plates Punching Machine |
| Model | CPP-100 |
| Brand | SOLTERRA |
| Warranty | The Warranty time is One year, Engineers available to the services |
| Certificates | ISO9001:200,SGS |
| Delivery time | With 34 working days |
| Package details | High quality wooden case |
Equipment Featurs
1.C shape framework features , great rigidity and provides spacious working area.
2.There are three working stations.Stations can change automatically.The clamp system is suitable for workpiece with different thicknesses.There
is stop locater at zero position.Workpiece is supported by woking table with rolling balls.
3.X and Y axis are divided by servo motor and ball screw,the punching position is controlled by bi-axis CNC controlling system.
4.The processing data,which can be used repeatedly,can be input into the controlling system and the processing can be done automatically.
Equipment Advantages
- Integrated machine with mechanical,electrical and hydraulic system.PLC control and servo motor drive.
- Modular assembling for main functional part,easy maintenance,and with self-diagnostic function.
- Punching and marking operations are on one plate with less labor force and high stable working accuracy.
- For programming,either input punching diameter ,position and quantity of workpiece or directly share the data souce with design department on the local network.
Main Technical Specifications
No. |
Item |
Specifications |
Unit |
Note |
|||
1 |
Punching force |
1000 |
kN |
||||
2 |
Marking force |
800 |
kN |
||||
3 |
Thickness range of punching |
6-20/25 |
mm |
||||
4 |
Max.diameter of workpiece |
1500×775 |
mm |
||||
5 |
Max.diameter of punching hole |
26 |
mm |
b=40N/mm2≤16 |
|||
6 |
Min.margen of punching hole |
25 |
mm |
Apertore≤25.5mm |
|||
7 |
No. of stations |
3 |
number |
||||
8 |
Diamensions of character |
14×10×19 |
Mm |
||||
9 |
No. of characters |
10 |
number |
Two lines |
|||
10 |
Speed of axis XY |
12 |
m/min |
||||
11 |
Process precision |
Accord with GB/T2694-2003 |
Criterion |
||||
12 |
Hydraulic system pressure |
(low pressure)
|
5.5 |
Mpa |
|||
(high pressure) |
25 |
Mpa |
|||||
13 |
Air supply pressure |
0.5~0.8 |
Mpa |
||||
14 |
Total power |
≈20 |
kW |
||||
15 |
Overall dimensions |
3020×2522×1880 |
mm |
||||
16 |
Weight of machine |
6(t) |
|||||
