Punching Machines/APLH-2020 CNC Angle Marking,Punching&Shearing Line

Name: Punching Machines/APLH-2020 CNC Angle Marking,Punching&Shearing Line
Brand: SOLTERRA
SKU: 129206679
Availability: InStock

US$ 143,077 - 143,077 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Power Source:

Hydraulic

Jinan Liaoyuan Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Power Source Hydraulic

Place of Origin Shandong, China

Brand Name SOLTERRA

Model Number APLH-2020

Specifications

1.India Branch Office
2.ISO9000 Quality Management Certificate
3.Well-Known Brand

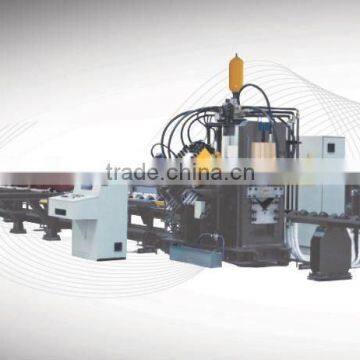

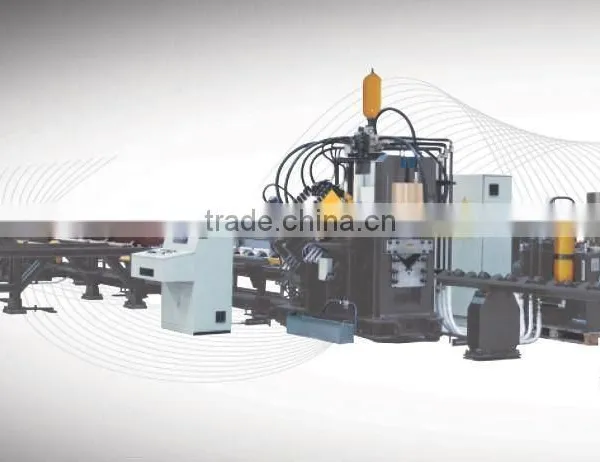

APLH-2020 CNC Angle Marking,Punching&Shearing Line

Features

The machine is professional automatic equipment for marking, punching and shearing in iron tower manufacturing industry.
CNC automatic production line offers highpunching speed and high stability.

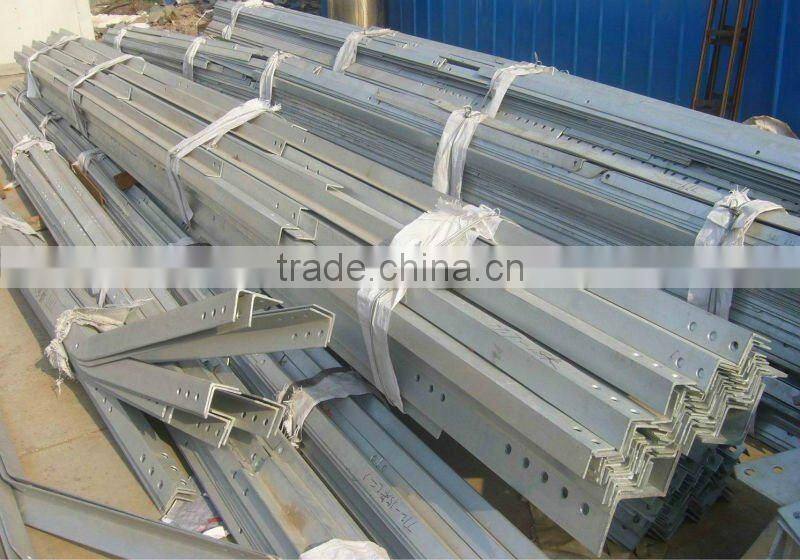

The angle bar can be processed into finished angle in one time as passing through the machine.
The machining process is numerically controlled and the operation is very convenient.It can achieve automation,high precision,multi-species and mass production.
Friendly computer interface is easy to operate.It can accept certain processing program which is made by lofting softrware.And it also supports manual programming.

Advantages

The machine is composed of transverse conveyor,rotating loading system,infeed conveyor,CNC infeed carriage,marking unit,shearing unit,unloading conveyor as well as hydraulic,electrical and pneumatic system,etc.
Veasatile triple tooling on each side which can install three kinds of punches with different diameters.Versatile triple tooling can move together controlled by CNC which is to change the punching stadia.
Double-blade shearing ensures perfect cutting section.The clearance can be conveniently adjusted.
Marking unit adopts a closed frame with good rigidity.Four sets of character boxes are fixed on the marking unit which can be selected by program.Marking stadia can be at will.
The workpiece is infeeded by the CNC carriage with high positioning precision.The infeed carriage is driven by servo motor.The photoelectric encoder feds back the information.Closed loop control.The clamp arm moves up and down with high rigidity.It is driven by ball screw and guided by linear guideway.
The support device of the ounching unit is driven up and down by hydraulic cylinder.
The rotating loading system is driven by the reducer with high working stability.
The hydraulic system mainly serves for punching,shearing,marking,marking device movement,pressing and supporting workpiece,and tansposition of character boxes.The hydraulic pipeline is ferrule connected.

Main Technical Specifications

Model	APLH-2020
Function	Punching,marking,shearing
angle size(mm)	63×63×4~200×200×20(Q235-Aor16mn)
Nominal marking force(kN)	550/1040
Nominal punching force(kN)	1090
Nominal shearing force(kN)	1810
Max.punching capability(mm)	26×20
piece(m)	14
Adjustment of stadia(mm)	20~170
No. of punches on each side(number)	3
No.of character groups(group)	4
No. of characters per group(number)	10/18
Diamentions of character(mm)	14×10×19
Shearing mode	Double-blade shearing
No. of CNC axis(number0	3
Max. feeding speed(m/min)	40
Total power(kW)	43.5
Overall dimentions(m)	32×7×2.2
Weight of machine(t)	Approx16
