China Supplier CNC Punching Drilling Machine for Steel Plate CPD100
- 12 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | CNC or Not: | CNC | Drilling Speed: | 100-1000 rpm |
Place of Origin: | Shandong, China | Brand Name: | SOLTERRA | Model Number: | CPP100 |
Voltage: | 380V | Power(W): | 25kw | Dimension(L*W*H): | 3030*2522*2750 |
Weight: | 6500kg | Certification: | SGS ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

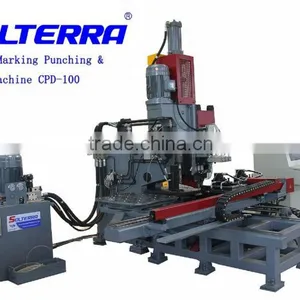

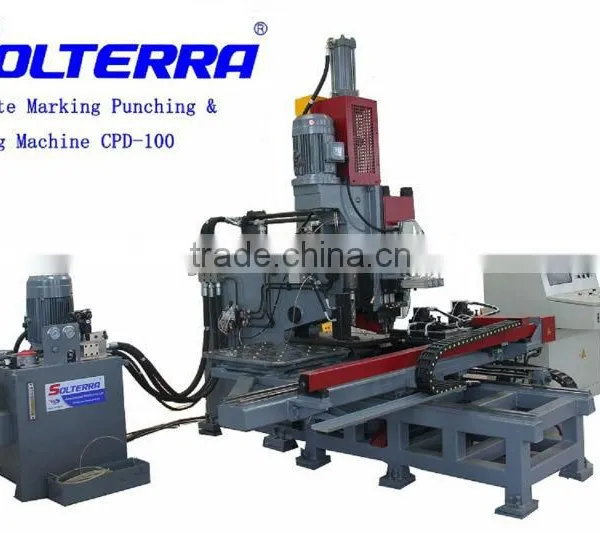

CNC Punching Drilling Machine for Steel Sheet CPD-100
Product Description
Main Function & Features:
1. Modular assembling for main functional parts, easy maintenance;
2. Punching, printing and drilling operations on one plate;
3. Efficient drilling operation by fast approach, slow working and fast return program;
4. On programming, either input punching diameter, location and quantity of workpiece, or network locally with design department to interchange data base;
5. Constant workpiece accuracy and good operating condition
Technical Parameters:
For punching application: | |
Punching force (kN) | 1000 |
Marking force (kN) | 800 |
Thickness range of workpiece(mm) | 6~25 |
Max. workpiece dimension(mm) | 1500x800 |
Number of station | 3 |
Max. punching diameter(mm) | 31.5 |
Min margin distance from punching center (mm) | 25 |
Number of letter | 14 or 18 |
Size of letter (mm) | 14x10 or 16x10 |
Machining precision | GB2694-2003 |
Overall dimension(mm) | 3020*2522*1875 |
For drilling application: | |
Max. drilling thickness (mm) | 25 |
Max. drilling diameter (mm) | 40 |
Speed of main spindle (r/min) | 100~750 |
Feeding speed of main spindle (mm/min) | 20~280 |
Stroke of main spindle (mm) | 180 |
Power of main spindle (kW) | 5.5 |
The Promotion at India Fair

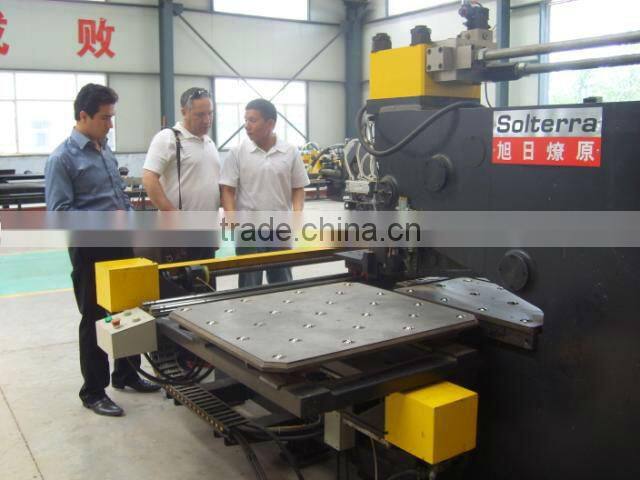

The Client Come for Inspection

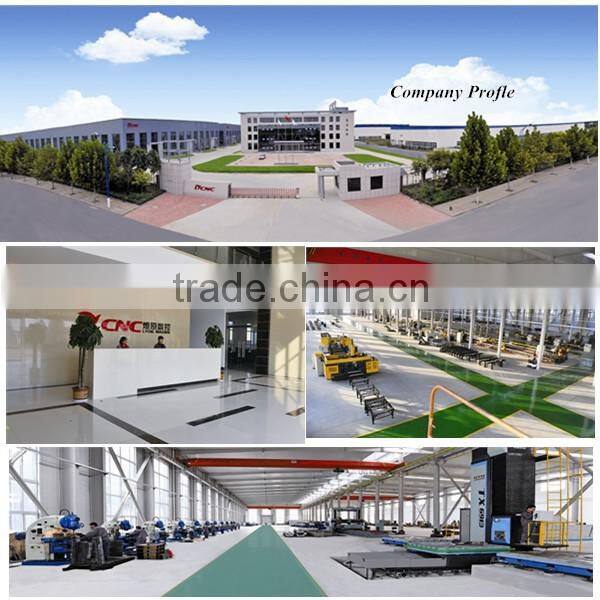

Company Information
Establised in 1991 year, Jinan Liaoyuan Machine is one of the most earlist enterprice in producing CNC angle bar marking punching shearing line , CNC steel sheet punching drilling machine, CNC H I U beam drilling line .

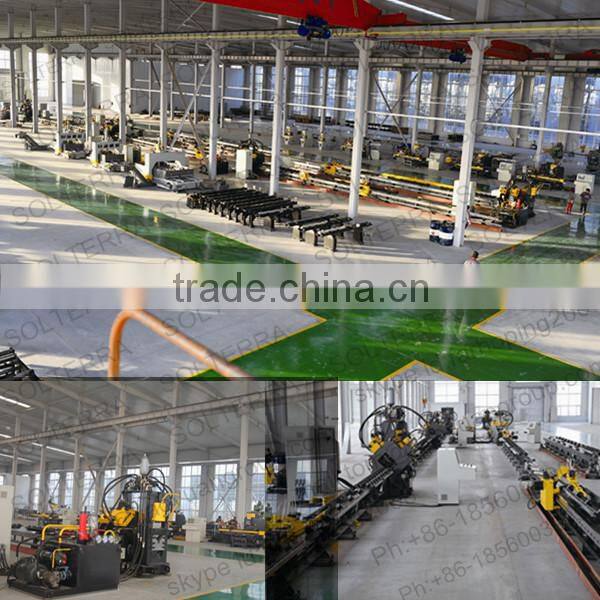

Worshop Inside
Machine exhibited

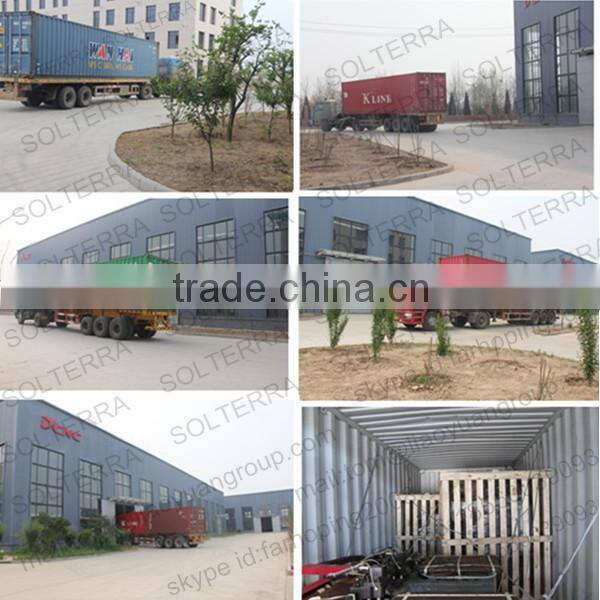

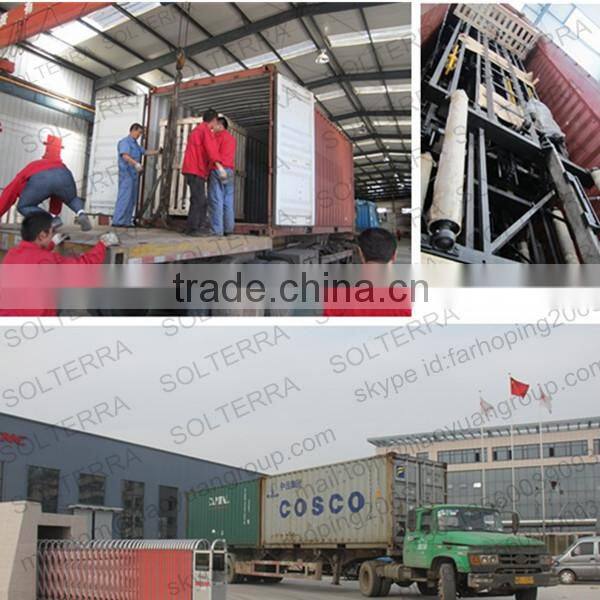

Packaging and Shipping
Our Services
FAQ
Question 1. Are you a Manufacturer or a trading company?
Answer 1.We are the manufacture, integrating with design, machining and assembling.
Q 2. What is the minimum quantity for order ?
A2: One set
Q3. Do you have stock product ready to deliver?
A 3. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4 The machine is mostly delivery by sea, but by rail way or road for some exception. For some urgent part or shipping document we delivered by Courier like TNT, FEDEX,DHL,UPS,EMS, and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have the after-sales service department,they will provide training program for operation and trouble shouting during installation. And they will visit the customer regularly for service.
Q6, What's delivery time for the machines.
A 6, Within 20 days after payment
Q7, Do you inspect the finished products?
A7, Yes, Each part of the machine will be inspected before or after assembling by QC department, We believe only quality can produce quality.
