Semi auto cnc angle line for angle steel punching machine
- 20 Set / Sets per Month
- Qingdao
- T/T Credit Card
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- DOING supply photovoltaic solar panels recycling machine
- four-axis welding machine for commercial sink panel and bowl
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
Product Details
Place of Origin: | Shandong, China | Brand Name: | Solterra | Model Number: | APLS-1612 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.Simply machine for angles punching for iron towerc system , servo motor
3.Branch office in India
4.ISO and CE

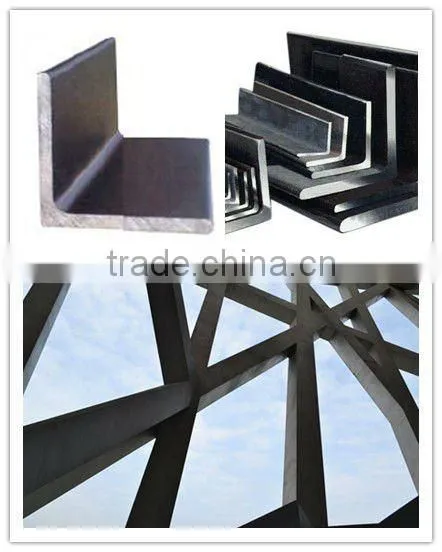

APLS-1612 SEMI CNC Angle Punching Line for steel towers ,angle steel
Features

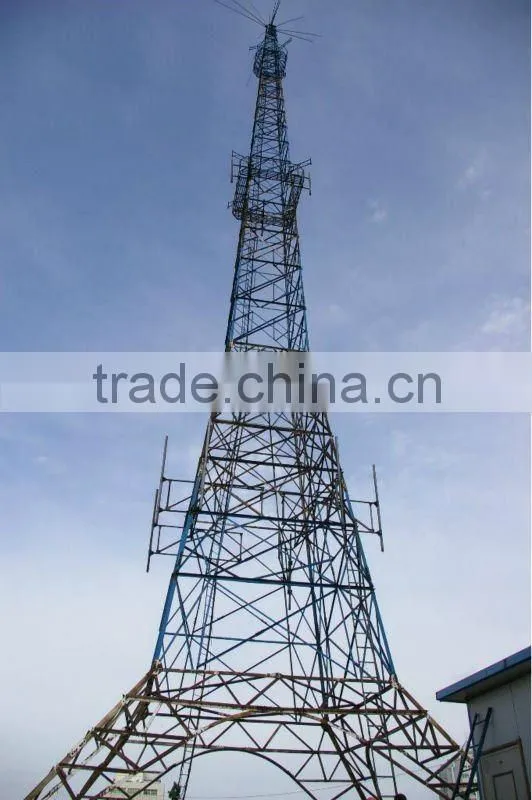

1. Simply machine for angles punching in iron tower industry
2. No necessary to mark line before punching
3. CNC system for holes distance and staida
4. Punching two different holes only angle pass through press one time
5. Directly transfer from CAD/CAM
6. Max. size of angle (mm): 40×40×3~160×160×12
7. Max. diameter of punching (mm): Φ26
Advantages
1 The machine is equipped with two punches for different holes. Hole’s dimension can be selected by computer program.There are two stripper for preventing angles from lifting.
2 AC servo motor via ballscrew can make angles transverse movement for changing of stadia. Pneumatic cylinder presses angle against baffle-plate for ensuring the precision of stadia.
3 There are liner guide and rack throughout the infeed rollerway. CNC carrier can be driven by AC servo motor on the liner guide, which ensures accurate punching for angles.
4 Only input the hole's data of workpiece into computer or plug the disc about machining information into computer, then edge distance, hole distance, stadia, holes' quantity, hole’s diameter can be controlled automatically.
.
Main Technical Specifications
Model | APLS-1612 |
Functions | Punching |
Angle size | L40×40×3~L160×160×12 |
(mm)Max. diameter of punching | Φ26 |
No. of punches | 2 |
(mm) Stadia of punching | Length of side:40~63 Stadia:20 |
Length of side70~100Stadia~32Length of side~110~100 Stadia~42 | |
Min. edge distance of punching | 25 |
(KN) Nominal force of punching | 800 |
(m/min) Positioning speed of servo motor | |
Programming mode | Input by keyboard, RS232 interface and USB interface |
Precision | Accord with GB2694 |
Overall dimensions L×W×H | 18.9×2.3×2.6 |
Weight of machine(t) | 8 |

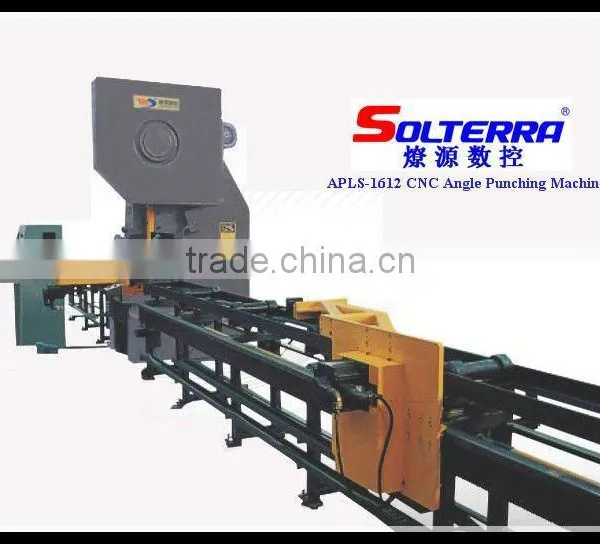

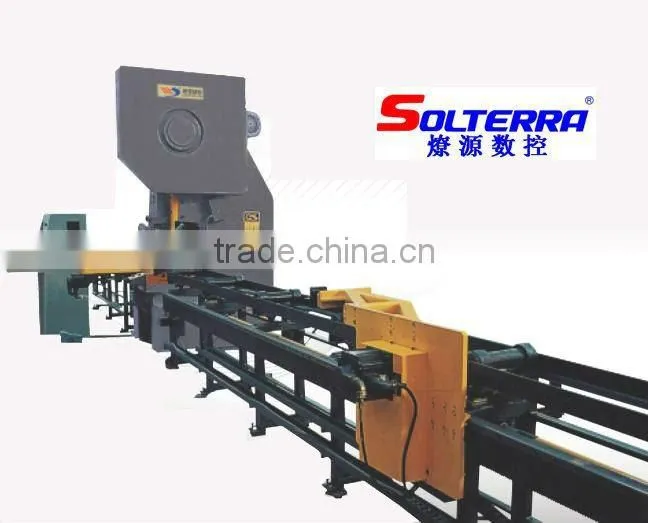

The picture of the machine
High quality and reasonable price !
The best after sales service !
Professional solutions!
