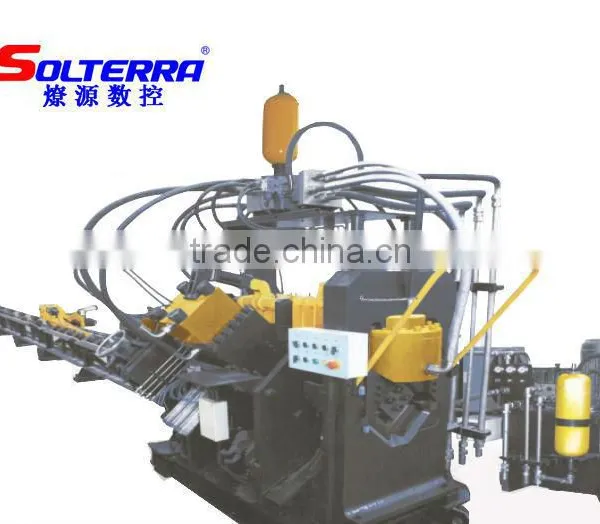

CNC Angle Iron Punching Cutting (Single-blade) Machine APLD-1412
Product Description
Features:
1) Versatile triple tooling on each side. The angle bar can be processed into finished angle in one time as passing through the machine.
2) Single-blade shearing
3) The machining process is numerically controlled and the operation is very convenient. It can achieve automation, high precision, multi-species and mass production.
4) The upper computer adopts friendly compute r interface which is easy to operate. It can accept certain processing program which is made by special software. And it also supports manual programming.
Advantages:
1) Versatile triple tooling or each side which can install three kinds of punches with different diameters. Three sets can move together controlled by CNC which is to change the punching stadia.
2)Single-blade shearing ensures smooth cutting section and lowers the consumption of material.
3) Marking unit adopts a closed frame with good rigidity. Four sets of character boxes are fixed on the marking unit which can be selected by program. Marking stadia can be set at will.
4) CNC infeed carriage is driven by servo motor. The photoelectric encoder feeds back the information. Closed loop control ensures high positioning precision.
5) Hydraulic system mainly serves for punching, marking pressing and selecting of character boxes.
6) Control system consists of upper computer, CNC system, servo motor, PLC and outside detection switch etc. Proceeding program can be generated automatically as long as the operator inputs the dimensions of workpiece. The program data can also be made by lofting software and be stored, called up, displayed and communicated as per the workpiece number.
Main Technical Specifications
| Model | APLD-1412 |
| Angle size(mm) | 56×56×4--140×140×12(Q420) |
| Max. punching capability(D×T mm) | 25.5×12 |
| Nominal punching force(kN) | 960 |
| Nomimal marking force(kN) | 1040 |
| Nominal cutting force(kN) | 1800 |
| No. of character groups | 4 |
| No. of characters per group | 15 |
| Character size(mm) | 14×10×19 |
| Stadia adjustment(mm) | 20-110(stepless adjustable) |
| No. of punches on each side | 3 |
| Max. feeding speed(m/min) | 40 |
| No. of CNC axis | 3 |
| Overall dimensions(m) | 26×7×3 |
| Total power(kW) | 31.4 |
| Weight(t) | 16 |
Company Information
Establised in 1991 year, Jinan Liaoyuan Machine is one of the most earlist enterprice in producing CNC angle bar marking punching shearing line , CNC steel sheet punching drilling machine, CNC H I U beam drilling line .
Worshop Inside
Machine exhibited
Packaging and Shipping
Our Services
FAQ
Question 1. Are you a Manufacturer or a trading company?
Answer 1.We are the manufacture, integrating with design, machining and assembling.
Q 2. What is the minimum quantity for order ?
A2: One set
Q3. Do you have stock product ready to deliver?
A 3. In order to satisfy with the customer for fast delivery, we have certain amount of machines in stock, you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4 The machine is mostly delivery by sea, but by rail way or road for some exception. For some urgent part or shipping document we delivered by Courier like TNT, FEDEX,DHL,UPS,EMS, and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have the after-sales service department,they will provide training program for operation and trouble shouting during installation. And they will visit the customer regularly for service.
Q6, What's delivery time for the machines.
A 6, Within 20 days after payment
Q7, Do you inspect the finished products?
A7, Yes, Each part of the machine will be inspected before or after assembling by QC department, We believe only quality can produce quality.
