CNC Angle Line for angle towers telecome transmission towers
Features:

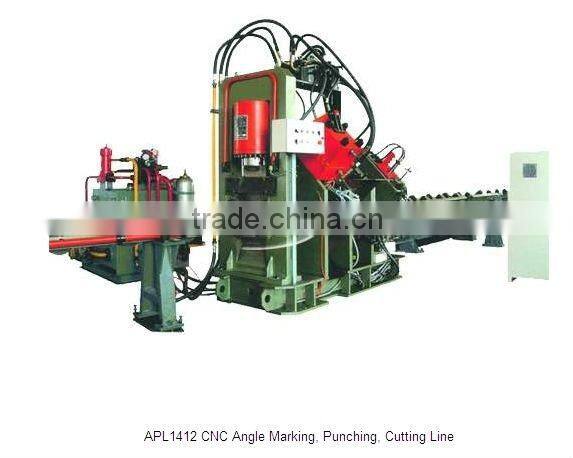

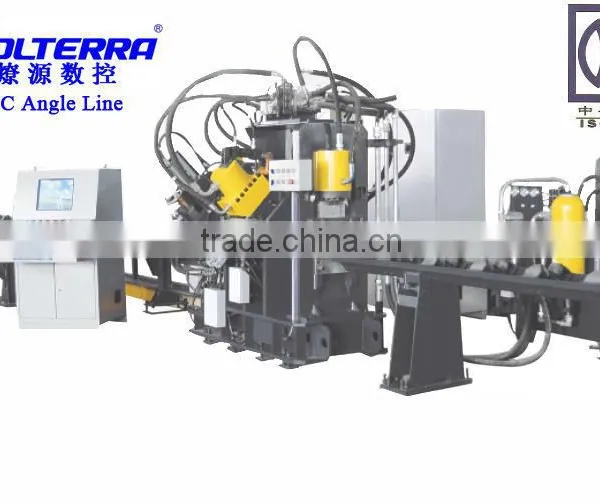

The production lines professional automatic equipment for marking,punching and shearing of angle steel of electric power and telecommunication angle steel tower. Processing size: angle steel type L63x63x4 L200x200x20,length within 14M. It includes 6 units, material loading unit, feeding unit, main body, finished products conveyor unit, hydraulic power unit,and electric control unit.
Advantages:
1) Good rigidity, compact structure, optimal workpiece arrangement and high using rate of workpiece.
2) Marking, punching and shearing are automatically operated with high efficiency.
3) Friendly computer interface can show workpiece’s figure, easy for operation.
4) Easy programming,only need to input the data of workpiece,including size,hole diameter, stadia accuracy and quantity. Or use the programming data created by lofting software.
5) Many solutions are adopted to resolve problems such as infeeding difficulty and stadia accuracy error which are caused by angle steel deformation.
6) With CNC and serve motor achieves it high efficiency and stable working accuracy.
7) The key hydraulic pneumatic and electrical elements are all imported from Germany, Japan, and South Korea etc.
Main Technical Specifications:
Model |
APL-2020 |
APL-1412 |
Angle size |
63×63×4~ 200×200×20 |
40×40×3~ 140×140×12 |
|
Max. punching capability Diameter×Thickness |
Φ26×20 |
Φ26×20 |
(KN)Nominal punching force |
1000 |
600 |
(KN)Marking force |
700 |
700 |
(KN)Shearing force |
1400 |
900 |
(m)Max. length of workpiece |
14 |
12 |
(m)Max. length of finished product |
10 |
10 |
No. of punches of every side |
3 |
2 |
No. of character group |
4 |
4 |
(mm)Dimensions of character |
14×10×19(According to demands of customers |
|
Number of CNC axis |
3 |
|
Shearing mode |
(Doubel-blade Shearing) |
|
(m/min)Feeding speed |
30 |
60 |
Processing precision |
Meeting the requirement of GB2694-81 |
|
Programming model |
Keyboard enter, RS232interface enter, CAD |
|
(m)Overall dimensions |
32×7.5×2.35 |
25×6.5×2.2 |
(t)Net weight |
20 |
12 |
