CNC Angle Steels Punching Marking and Shearing Line Machine Made In China
This Machine is popular for processing angle steels and tower industry
Detailed Product Information:
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company dedicate to offer Iron tower and steel struction equipment.
Brief Product Introduction
| Name | CNC Angle Line Machine for Marking Punching and Cutting |
| Model | APLH-2020 |
| Brand | SOLTERRA |
| Warranty | The Warranty Time is One year, Engineers available to the Service |
| Certificates | ISO9001,SGS |
| Delivery time | Within 6 weeks after confirming the order |
| Payment terms | L/C,T/T |
This machine is popular for tower industry.
Range of Angle size:63x63x4~200x200x20(Q235-A or 16Mn)
Equipment Features
- The machine is professional automatic equipment for marking, punching and shearing in iron tower manufacturing industry.
- CNC automatic production line offers highpunching speed and high stability.
- The angle bar can be processed into finished angle in one time as passing through the machine.
- The machining process is numerically controlled and the operation is very convenient.It can achieve automation,high precision,multi-species and mass production.
- Friendly computer interface is easy to operate.It can accept certain processing program which is made by lofting softrware.And it also supports manual programming.
Machine Advantages
- The machine is composed of transverse conveyor,rotating loading system,infeed conveyor,CNC infeed carriage,marking unit,shearing unit,unloading conveyor as well as hydraulic,electrical and pneumatic system,etc.
- Veasatile triple tooling on each side which can install three kinds of punches with different diameters.Versatile triple tooling can move together controlled by CNC which is to change the punching stadia.
- Double-blade shearing ensures perfect cutting section.The clearance can be conveniently adjusted.
- Marking unit adopts a closed frame with good rigidity.Four sets of character boxes are fixed on the marking unit which can be selected by program.Marking stadia can be at will.
- The workpiece is infeeded by the CNC carriage with high positioning precision.The infeed carriage is driven by servo motor.The photoelectric encoder feds back the information.Closed loop control.The clamp arm moves up and down with high rigidity.It is driven by ball screw and guided by linear guideway.
- The support device of the ounching unit is driven up and down by hydraulic cylinder.
- The rotating loading system is driven by the reducer with high working stability.
- The hydraulic system mainly serves for punching,shearing,marking,marking device movement,pressing and supporting workpiece,and tansposition of character boxes.The hydraulic pipeline is ferrule connect.
Main Technical Specifications
Model |
APLH-2020 |
Function |
Punching,marking,shearing |
angle size(mm) |
63×63×4~200×200×20(Q235-Aor16mn) |
Nominal marking force(kN) |
550/1040 |
Nominal punching force(kN) |
1090 |
Nominal shearing force(kN) |
1810 |
Max.punching capability(mm) |
26×20 |
piece(m) |
14 |
Adjustment of stadia(mm) |
20~170 |
No. of punches on each side(number) |
3 |
No.of character groups(group) |
4 |
No. of characters per group(number) |
10/18 |
Diamentions of character(mm) |
14×10×19 |
Shearing mode |
Double-blade shearing |
No. of CNC axis(number0 |
3 |
Max. feeding speed(m/min) |
40 |
Total power(kW) |
43.5 |
Overall dimentions(m) |
32×7×2.2 |
Weight of machine(t) |
Approx16 |

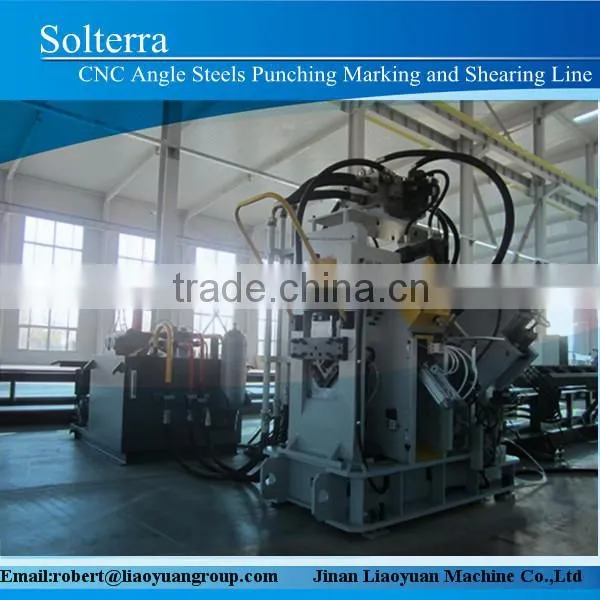

Machine Images
Processing Object
