Specifications
1. milling the aluminum mullion/transom and reinforced mullion2.SGS&ISO9001
3.Factory built in 1991
4.Machine in story.
Hot Selling Aluminum Windows End Milling Machine
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package are all in accordance with your request.
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
5.Product Video Can be sent to you for check.
Equipment Features:
1. Used for milling the aluminum mullion/transom and reinforced mullion.
2. Large milling capacity, multi-pieces profile milling in one cycle.
3. Universal milling blades can be adjusted I up/down, left/right direction to fit for different processing requirements and ensure the efficient working.
4. Can work for the reinforced mullion in one cutting/milling cycle.
5. Large diameter tools with high and stable milling speed to guarantee the working quality.
Main specification and Technical Parameter:
Power supply |
380V50HZ |
Total power |
8.8KW |
Motor rotary speed |
2800r/min |
Air pressure |
0.5-0.8Mpa |
Diameter of main shaft |
Φ32mm |
Diameter of milling cutter |
Φ250mm |
Diameter of blade |
Φ355mm |
Worktable journey |
0-1560mm |
Worktable dimension |
530×320mm |
Motor adjustable journey |
0-85mm |
Max size of processing tenoning |
40mm |
Contour dimension |
3240×970×1670mm |
Cutting surface roughness |
12.5μm |
Weight |
About 650kg |

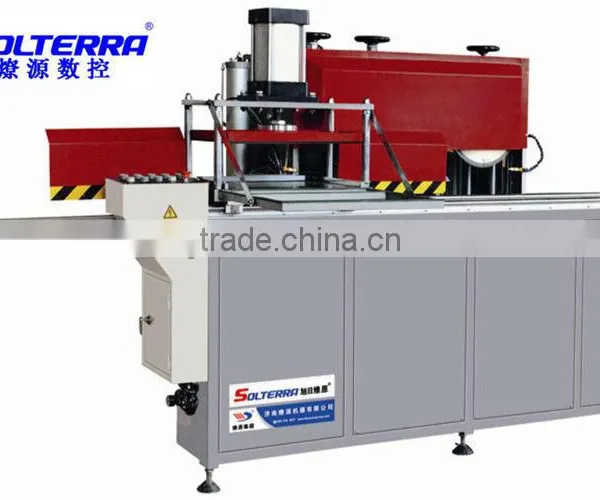

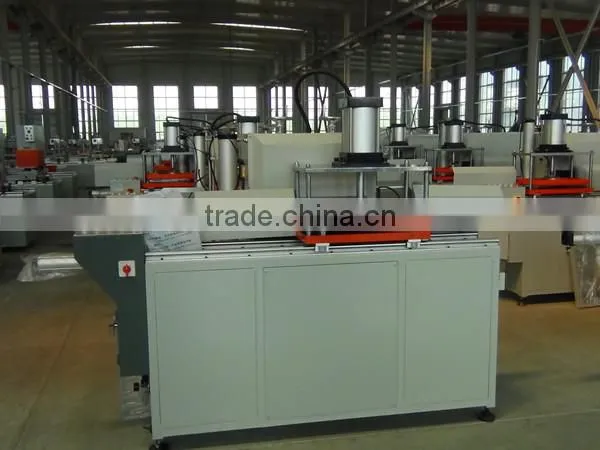

Machine Images
Liaoyuan Machine belongs to Jinan Liaoyuan Group, which was established in the 1990s. Liaoyuan
Machine is located in Jinan city of China, originally started to make pvc/aluminum window & door
machine from 1991 year. We are the only one chinese company who enjoy the capacity from spare
parts casting, machine design, technology innovation and machine assembling, which are totally achieved
at your factory.
In more than 20 years of development, Liaoyuan Machine has energetically explored the resource
development space to realize rapid development. Nowadays, Liaoyuan Machine has been developed
into a large machine tool production enterprise with a land area of four hectares, a workshop area
of 15,000 square meters, more than 350 employees, more than 100 sets of professional production
equipment and annual designing and production ability of more than 700 sets of machine tools. In
1998, Liaoyuan Machine was granted the authorized import & export license by the Commission
of Foreign Trade and Economic Cooperation of China.
