Specifications
double head Aluminium cutting saw/Aluminum Window Cutting Machine/CNC aluminum double head Automatic cut/aluminum cutting saw/

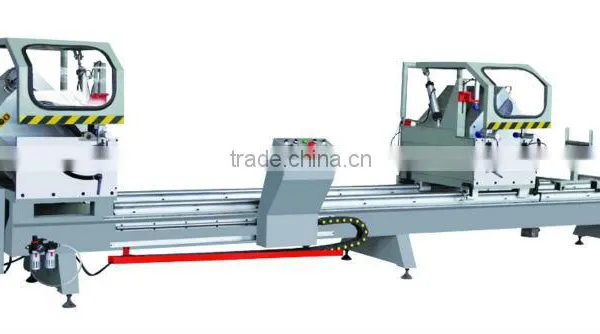

1. Aluminum Profile CNC Double-head Precision Cutting Saw
2. CE, ISO9000:2000;
3. 20 years industry experience.
Features and functions:
1. It has feature of easy operation, reliable performance, advanced technique and convenient maintenance
2. Imported carbide saw blade gives accurate processing and high efficiency
3. Two heads can work together or single, when together work, one time can cut off the required length and angle
Technical parameter:
Power supply 380V 50Hz
Saw motor power 2x2.2Kw
Rotary Speed 2800r/min
Air pressure 0.5-0.8Mpa
Air consumption 60L/m
Cutting length max 4200mm min 375mm
Cutting width max 135mm
Cutting height 90° :max 300mm 45°: max200mm
Cutting angle 90°, 45°,67.5°(optional)
Cutting speed stepless speed regulation 0-0.3m/min
Blade specification Φ500XΦ30X4.4 Z=120
Repeat locating length <=0.2mm
Cutting profile surface plane <=0.1mm
Cutting angle tolerance ±0.5′
Cutting profile surface roughness Ra 12.5μm
Overall dimension 5500X1750X1950mm
Weight 1800kg
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
