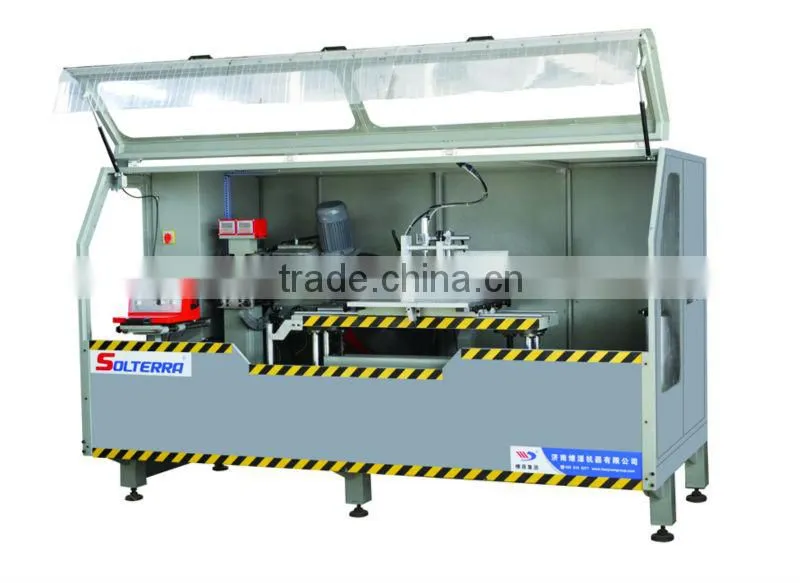

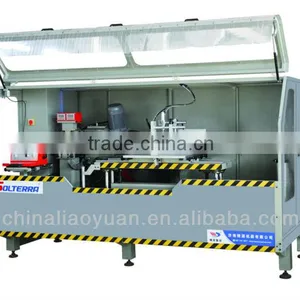

notch cutting saw for aluminum curtain wall LJK-500

Specifications

1. aluminum profile notch cutting saw for curtain wall making LJK-500
2. CE/ISO9001-2008
3. since1991







1. aluminum profile notch cutting saw for curtain wall making LJK-500
2. CE/ISO9001-2008

3. since1991



Features and functions:



1. This is the new machine designed for the aluminum curtain-wall and lighting skylight processing with the special angle at the profile end surface

2. Equipped with magnetic ruler control system, realized cutting angle and worktable height digital display

3. Convenient worktable and locating device adjustment, can achieve special end surface angle processing

4. The blade saw can swing between -45°--+45°



Technical parameter:





Power supply	380V/50Hz
Cutting motor power	2×2.2KW
Motor rotary speed	2800r/min
Air pressure	0.5-0.8Mpa
Air consumption	60L/min
Saw blade swinging range	-60º-- +60º
Cutting depth	150mm
Cutting feeding speed stepless speed regulation	0-3m/min
Overall dimension	3140mm×1380mm×1800mm
Saw blade specification	Φ500mm×4.4mm×Φ30mm Z=120
Weight	about 1500kg





Quality Guarantee:







 The Seller shall provide all spare parts needed, be responsible for spare parts replacement  and TWELVE(12) months guarantee.



After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.











Technical service:



The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
