ALUMINUM CURTAIN WALL CNC 3 AXIS MACHINE CENTER
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Product Details:
Detailed information of CNC 3 axis Machine center are as followed:
Super quality! Lowest price!! Best service!!!
As a Manufaturer, We are looking forward to finding the agents of our products all over the world!!
Equipment Features:
1. The machine is designed for processing launder, milling and mounting hoe, lock hole in the aluminum profile and other industry aluminum materials.
2. Believable quality, Complete serve control system and electric principal axis is from This Lenze, German.
3. CAD-CAM operation system is special designed by WEGOT. Operate and learn easily.
4. Drilling, milling and tapping can be finished clamping one time.
5. High quality steel tube is adopted in the machine frame after hot processing which is better stabilization and rigidity.
6. Toole stock is 14 points and from Taiwan which is timesaving when change tools.
7. Double locating device makes the machine working continuously with profile input alternately.
8. Sensor for machine head and operating persons make sure the safety of worker.
9. Tool lock seat makes it easy to change tool.
Main Specification and Technical Parameter
| X-way range | 7000mm |
| Y-way range | 1400mm |
| Z-way range | 600mm |
| X-way speed | 0-60m/min |
| Y-way speed | 0-30m/min |
| Z-way speed | 0-20m/min |
| main shaft rev./power | 0-18000rpm/5.5kw |
| Gyrating Range | ~-90°~0°~+90° |
| Cutter Magazine | 12 cutter positions,cutter auto change is avalible in the program |
| cutter max length | 165mm |
| saw blade diameter | Φ 80mm~ Φ 150mm |
| Air pressure | 0.5-0.8mpa |
| Power Supply | 380V/50HZ |
| Total Power | 10kw |
| clamp | 6 |
| Lubricating&cooling | Auto Lubricating&spray cooling |
| Work Area(W*H*L) | 650mm*200mm*7000mm |
| Overall Dimension(W*H*L) | 11300mm*2350mm*2550mm |
| Weight | 4500kg |

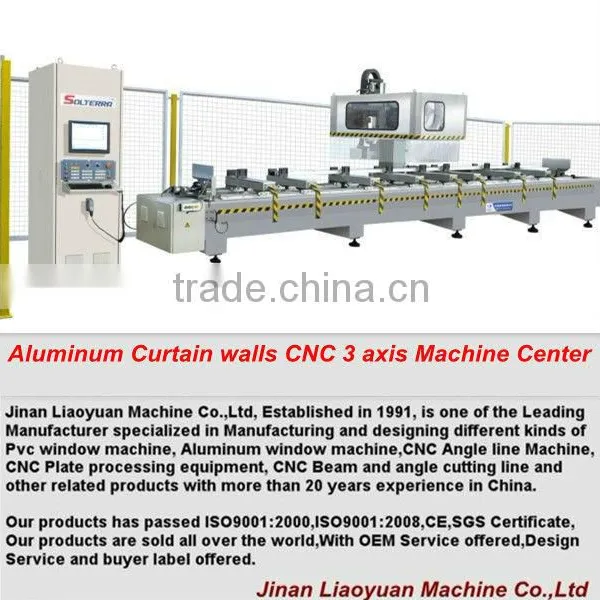

Machine Images
Company Profile
Established in 1991, Jinan Liaoyuan Machine Co.,Ltd is one of the most earliest enterprises in equipment machining industry. After more than 20 years unremitting efforts, now we has developed into a modern large comprehensive high-tech enterprise with four main businesses, covering industrial equipment manufacturing, aluminum casting and machining, no-ferrous metal casting, window-door & curtain wall processing machinery, and integrating with scientific research, manufacturing, sales and international trade.
Annual Exhibition
Contact Information
Question 1. Are you a Manufacturer or a trading company?
Answer 1. We are not a trading company,We are the top Machine Manufacturer,Which involves Raw materail casting,Machine body processing,Machine assembling,Painting,Machine quality Inspecting and etc.
Q 2. What is the minimum quantity for order ?
A2: Normaly One Set. and We will give some discounts if you can buy one complete set of Machine.
Q3. Do you have stock product ready to deliver?
A 3. We have many machines in stock, So We can guarantee the fast delivery time and make sure you can check the machine on LIVE-DEMONSTRATION at any time.
Q4. How do you deliver the finished products?
A 4, For FCL, We delivered by Sea
For LCL, We delivered by Sea and by Plane for only urgent requirement
For Spare Parts,We delivered by Courier,TNT, FEDEX,DHL,UPS,EMS, and Etc.
Q5,How can you guarantee the after-sales service?
A 5, We have a first-class engineers for the machine installation, tranining, and after-sales, we also have branch office in ovesea to keep the good after-sales service,They have a professional work team with exquisite experience.
Q6, What's delivery time for the machines.
A 6, We will arrange the shipment within 6 days after receiving the payment.
Q7, Do you inspect the finished products?
A7, Yes, Each step of production products will be camed out inspection by QC department before shipping.
