Specifications
1.Aluminum double head cutting machine2.ISO,CE,SGS
3.Factory built in 1991.
4.Machines in stock, fast delivery time
Alu-alloy Profile Double Head Cutting Saw Machine
This Machine is popular for processing aluminum and upvc windows
Brief Product Information
| Name | Alu-alloy Profile Double Head Cutting Saw Machine |
| Model | LJZ2A-450x3700 |
| Brand | SOLTERRA |
| Certificates | ISO9001,SGS |
| Warranty | The Warranty Time is One year, Engineers available to Service |
| Delivery time | 30 days for 5 sets, 50 days for 10 sets |
| Payment terms | L/C,T/T,Western Union |
1.High quality, Fair Price, Fast Delivery.
2.OEM Service, Trail Order
3.The Color, The logo, The package according to your request,
4.We are the Manufacturer,We have many engineers for the solutions for the new market to keep the trend of the world.
Jinan Liaoyuan Machine Co.,Ltd is a fast growing company for Aluminum windows and doors.
As a factory, We are looking forward to finding the agents of our products all over the world!!
Features and functions:
1. The linear guiding pair ensures steady processing accuracy
2. Saw blade rotates smoothly due to high accuracy main spindle
3. Uniform speed feeding and smooth motion are due to hydraulic damping cylinder
4. It has feature of easy operation, reliable performance, advanced technique and convenient maintenance, etc
5. Right cutting head moving is driven by motor
6. Imported carbide saw blade is of accurate processing and high efficiency
7. The Improved Safety cover is more reliable and safety for operation.
8. The digital measurement display is optional
Main Specification and technical Parameter
| Name | Specification |
| Power supply | 380V 50Hz |
| Air pressure | 0.5-0.8Mpa |
| Cutting motor power | 2x1.5Kw |
| Rotary Speed | 2800r/min |
| Air consumption | 60L/m |
| Blade specification | Φ450XΦ30X4.4 Z=120 |
| Cutting length | max 3700mm min 580mm (45°)Max 3700mm min 400mm(90°, 135°) |
| Cutting width | max 120mm |
| Cutting height | max 200mm |
| Cutting speed | 0-3m/min |
| Cutting profile surface roughness | Ra 12.5μm |
| Overall Dimension | 4500x1170x1400 |
| Weight | app 1500Kg |

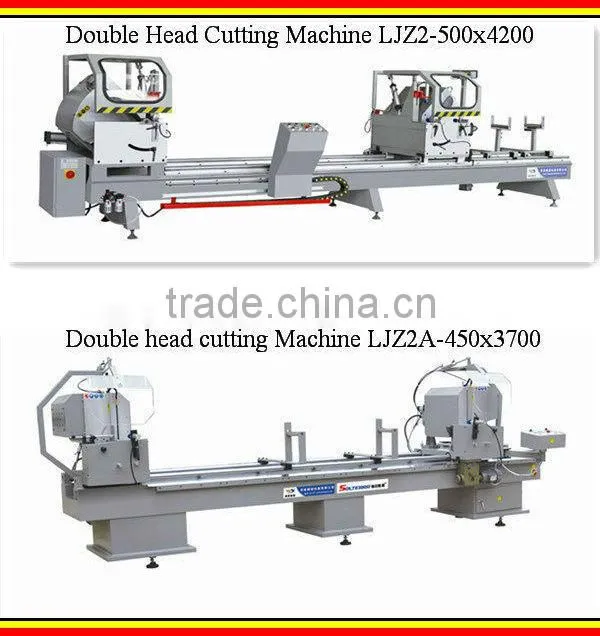

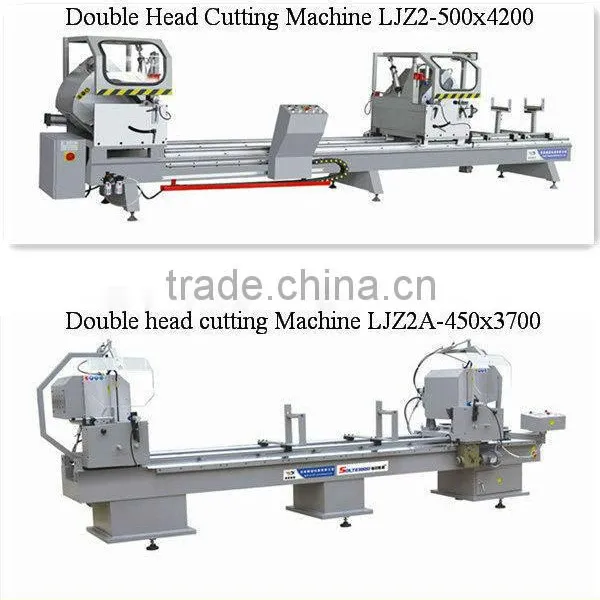

Machine Images
Auminum window processing equipments
Package and shipping
Company Profile
Jinan Liaoyuan Machine Co.,Ltd Attend Annual Exhibition
With Fully ISO9001 Approved, For more information about the certificate,please
feel free to contact me!!
After-sale service
Contact Information:
