Specifications
1.CNC Three-axis Processing Center2.India Office
3.ISO9001:2000
4.Well-known Brand
2012 HOT SALE CNC Three-axis Processing Center With ISO approved Detail

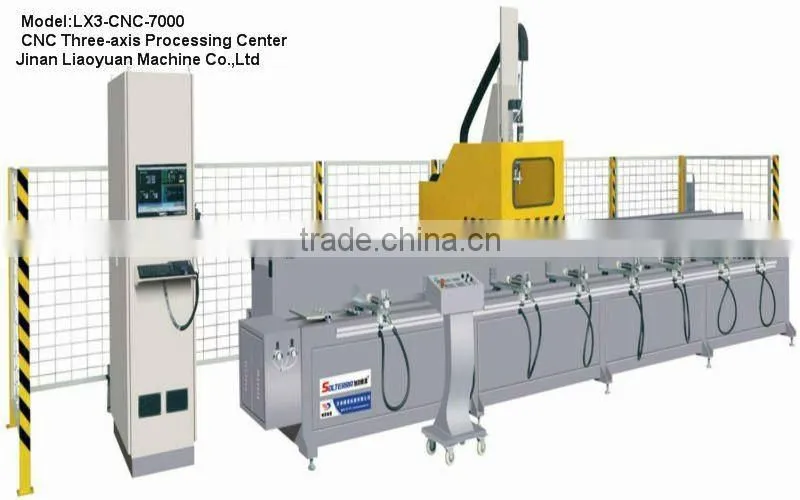

CNC Three-axis Processing Center for Alumnium Profile, win-door&Curtain wall Machinery
ITEM: LX3-CNC-7000
Equipment Features:
- This Machine is designed for processing Water slot, taping, milling, mountain hole, locking hole and other slots for diversified curtain walls, alumnium doors and windows.
- It adopts high-speed electric axis, which is imported from italy. it is extremely efficient and can swing in ±90°
- it adopts high-quality industrial computer control system, the system has favorable user manipulate interface program in graphics mode and processing interface. This processing interface can show related dates directly.
- It adopts hhigh-quality servo-motor, roller linear guide pair to ensure high precisio.
- The cutter storage supply 12 cutter positions, the cutter can change quickly and automatically.
- With half-close safeguard device to ensure the personal safety of the operator.
- This position of clamping device can be located freely.
Main Specification and Technical Parameter
| X-way range | 7000mm |
| Y-way range | 1400mm |
| Z-way range | 600mm |
| X-way speed | 0-60m/min |
| Y-way speed | 0-30m/min |
| Z-way speed | 0-20m/min |
| main shaft rev./power | 0-18000rpm/5.5kw |
| Gyrating Range | ~-90°~0°~+90° |
| Cutter Magazine | 12 cutter positions,cutter auto change is avalible in the program |
| cutter max length | 165mm |
| saw blade diameter | Φ 80mm~ Φ 150mm |
| Air pressure | 0.5-0.8mpa |
| Power Supply | 380V/50HZ |
| Total Power | 10kw |
| clamp | 6 |
| Lubricating&cooling | Auto Lubricating&spray cooling |
| Work Area(W*H*L) | 650mm*200mm*7000mm |
| Overall Dimension(L*H*W) | 11300mm*2350mm*2550mm |
| Weight | 4500kg |
About Us.
We are One of the leading Manufacture specialized in Manufacturing and designing different kinds of PVC window and door machine, Upvc Window and door machine, Aluminum Window and door machine. Steel tower equipment, Transmission tower, CNC Punching Machine, CNC Plate Marking Machine and steel structure equipment in china with experience more than 20 years. Our product has passed ISO9001:2008 Quality Management System Certificate and products are sold all over the world, with OEM Service offered, Design Service offered and Buyer label Offered.
Specific Advantages:
1. India Branch Office.
2. Fully ISO Quality Management System Certificate Approved.
3. One year Product Warranty, with professional technician and good after-sales service.
4. Factory established in 1991, more than 20 years' experience in servicing the Win-Door&Curtain wall machinery.
5. Product from Factory, High Quality and competitive price.
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE (12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical Service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
Liaoyuan Machine Attend India Annual Exhibition
Liaoyuan Machine Attend India Annual Exhibition 2
Liaoyuan Machine Attend India Annual Fair
Liaoyuan Machine Attend India Annual Fair
Jinan Liaoyuan Future Industrial Park Under Construction
Fully ISO Quality Management System Approved, For more information,please feel free
to contact me!!
