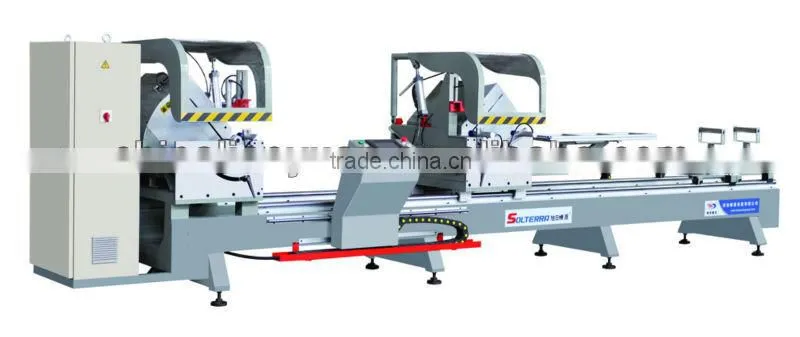

Help CenterDouble Head Cutting Saw for Aluminum Profile LJZ2-CNC-500x4200
Related Products
-
Aluminium Profile Tenon Milling MachineNegotiableMOQ: 1 Set -
High Quality CNC Milling Machine for Sale LZX-CNC-3200NegotiableMOQ: 1 Set
-
China Suppliers Aluminum Windows End Milling Machine For SaleNegotiableMOQ: 1 Set
-
Aluminium Window Corner Crimping MachineNegotiableMOQ: 1 Set
-
Aluminium PVC Windows Copy Routing Milling MachineUS$ 2,150 - 2,680MOQ: 1 Set
Specifications
CNC aluminum double head cutting saw/aluminum cutting saw/double head Aluminium cutting saw/Aluminum Window Cutting Machine/
1. Aluminum Profile CNC Double-head Precision Cutting Saw
2. CE, ISO9001-2008;
3. 20 years industry experience.
Features and functions:
1. The machine features pneumatic drive, linear and steady feeding.
2. Saw blade feeding adopts rectangle guideway and hydraulic damping cylinder which assure the cutting precision and very steady.
3. The cutter is alloy saw blade with high precision and long service life.
4. The imported CNC system features easy operation and reliable.
5. Connect with computer, the data and profile information can be automatically transferred.
5. It features wide cutting range, high productivity and is suit for batch production.
Technical parameter:
Input voltage: 380v 50hz
Input power: 2 x 2.2 kw
Cutting motor rotary speed: 2800r/min
Working air pressure: 0.5~0.8mpa
Air consumption: 60L/min
Blade specification Φ500 x Φ30 x 4.4 x Z120
Cutting speed stepless speed regulation 0~3m/min
Max. cutting length 4200mm
Min. cutting length 375mm
Cutting width Max.135mm
Cutting height 90°: max. 300mm
45°: max. 200mm
Max. cutting section 135 x 300mm
Cutting angle 45°, 90°
Repeat locating length tolerance ±0.2mm
Cutting angle allowance ±5
Cutting profile surface planeness: ≤ 0.10mm
Cutting profile surface roughness: Ra12.5um
Dimensions: 5900 X 1300 X 1400mm
Quality Guarantee:
The Seller shall provide all spare parts needed, be responsible for spare parts replacement and TWELVE(12) months guarantee.
After guarantee period all costs of replacement, cost of spare parts, shipment cost, and others cost shall be covered by Buyer.
Technical service:
The seller will supply free online technical service, free training program for the buyer’s staff , on-site installation.
