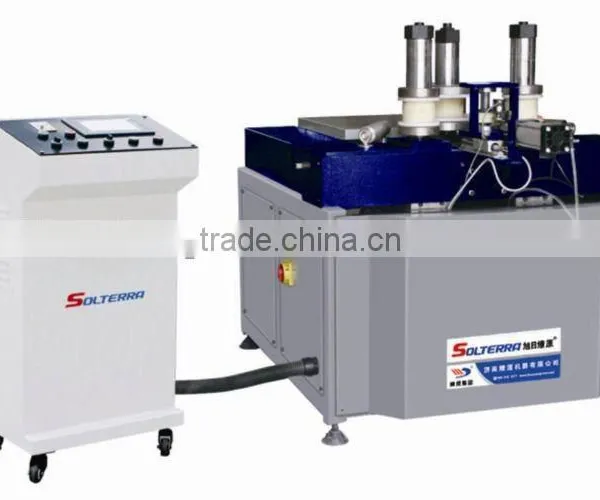

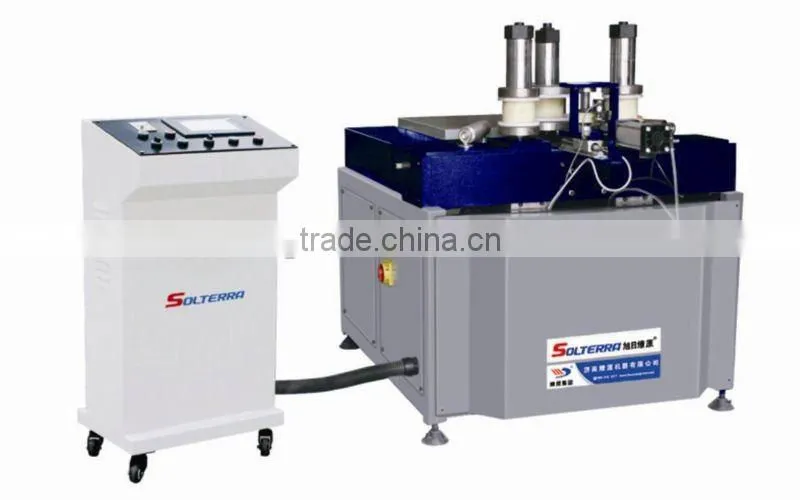

CNC Bending Machine/ Aluminum Profile Bending Machine/ Aluminum Profile
US$ 1 - 100,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
SLOTERRA
Model Number:
LWC-95
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2012HOT SALE CNC Three-axis Processing Center for Windows and DoorsUS$ 129,322.25 - 142,005.2MOQ: 1 Set -
High-speed 3 Axis Cnc Machine Center for Aluminum Window Curtain WallsUS$ 129,322.25 - 142,005.2MOQ: 1 Set
-
2012 Window Making Machines CNC Three-axis Processing CenterUS$ 129,322.25 - 142,005.2MOQ: 1 Set
-
Double Head Cutting Saw for Aluminum Profile LJZ2-CNC-500x4200NegotiableMOQ: 1 Set
-
Aluminium Profile Tenon Milling MachineNegotiableMOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
SLOTERRA
Model Number
LWC-95
Specifications
India Branch OfficeISO&CE
Factory established in 1991
One Year Warranty
Features and functions:
1. The machine is used for steel, copper, aluminum profile bending.
2. The machine adopts CNC controller, which make the machine features easy handling and high precision.
3. With different bending jig, the machine can process various profiles. The bending jig is easy for changing.
4. It features reliability, safety and high efficiency.
Technical parameter:
Power |
380V50HZ |
Motor |
2.25KW |
Rotation Motor |
2.2KW |
Diameter of bending |
100mm |
Max width of profile |
95mm |
Max diameter of rolls |
180mm |
Hydraulic cylinder of rolls |
160KN |
Lower shafts center distance |
350mm |
Roller-holding shafts center distance |
40mm |
Rotation speed of shaft |
1-8r/min |
Positioning precision |
0.05mm |
Top roll runout |
180mm |
Overall dimension |
1500×820×1560mm |
Weight |
1500kg |
