Lock-hole and Copy-routing Milling Machine LZF-300x100 / Window Making Machine / Hole Milling Machine for Aluminum and PVC
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Solterra
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 Hot Selling Aluminum Curtain Wall Machinery 3 Axis CNC Vertical Machining CenterUS$ 1 - 82,500MOQ: 1 Set -
Aluminum Profile Multi Spindle Copy Router--LXFF2-1900X125US$ 1 - 200,000MOQ: 1 Set
-
Hot Product!Milling Machine/End Milling Machine-LXD200/window Milling MachineUS$ 1 - 100,000MOQ: 1 Set
-
CNC Bending Machine/ Aluminum Profile Bending Machine/ Aluminum ProfileUS$ 1 - 100,000MOQ: 1 Set
-
2012HOT SALE CNC Three-axis Processing Center for Windows and DoorsUS$ 129,322.25 - 142,005.2MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Solterra
Model Number
LZF-300x100
Type
Other, Horizontal and vertical
CNC or Not
Normal
Voltage
380V
Power(W)
2.25KW
Dimension(L*W*H)
1000x1150x1600mm
Certification
ISO9001
Warranty
12 months
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Over 20 year's experienceIndia branch office

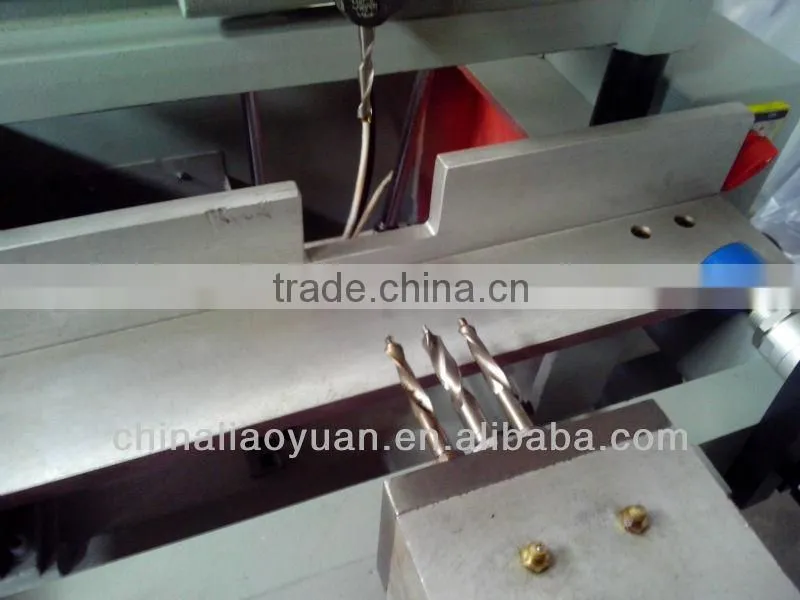

Three-hole driller© router
Milling holes for handle installation
Features and functions:
1. For copy routing lock holes, hinge slots and weep holes on pvc profiles
2. Vertical copy head does copying
3. Horizontal triple drilling head does open holes for handles on pvc profilesand reinforcement steel
4. Triple drilling, copy router or hinge slot motors can be used independently.
5. Pneumatic profile clamping system
6. One-pass clamping can complete two processesand achieve drilling three holes in horizontal direction and replicate routing in the vertical direction.
Technical parameter:
| Power supply | 380V 50Hz |
| Input power | 2.25kW |
| Centers distance of three-hole drilling head | 21.5x21.5mm |
| Diameter of the three-hole drilling head | 12mm |
| Milling cutter diameter | 5mm 8mm |
| Copy-routing range | 300x100mm |
| Overall dimension | 1000x1150x1600mm |

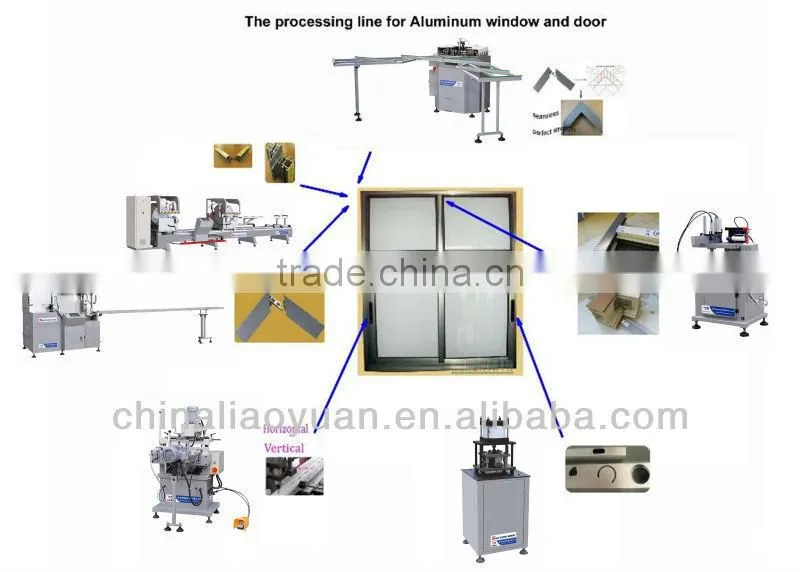

Other machines for pvc windows and doors fabrication:
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2001
Factory Size
10,000-30,000 square meters
Total Employees
101 - 200 People
