QT 4-15 full automatic cement block making machine in china

Specifications

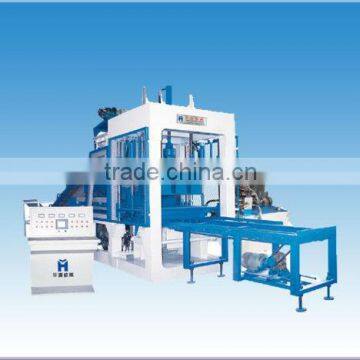

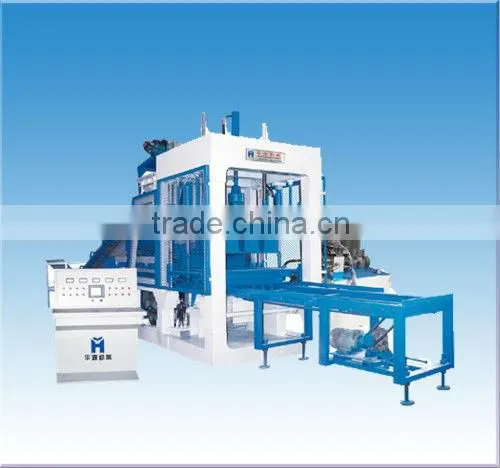

HYM 4-15 full automatic cement block making machine
cement block making machine
cement hollow brick making machine
hydraulic

2013 New type 4-15 cement block making machine

 cement block making machine

cement hollow brick making machine

HYM 4-15 cement block making machine

HYM full automatic cement brick making production line 4-15

1,Main technical Specifications:.

1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.

2.  Uses Japan’s Mitsubishi PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.

3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.



2,Raw materials :

crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .

multiple uses, it can produce all type of standard building blocks by changing mould.

1,Multi-holes block and hollow block .

2,Ceram site heat preservation block.

3,Composite heat preservation concrete block

The above production come with good heat preservation performance, and it meets the new national energy conservation policy.



Cycle Time	15-20(s)	Total Power	22(kw)
Vibration Type	hydraulic vibration	Vibration Frequency	3800-4500(Times/sub)
Machine Dimension	8200×4350×2700(mm)	Pallet Size	850×560×20(mm)
Vibration Force	68KN	Gross Weight	6200(kg)
Production/Mould	4pcs/m(390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm)	Productions/8h	5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm) 9636--28800pcs (200x100x60mm)



3.Main Features:

1) Uses Germany Siemens PLC control system and Siemens Touch Screen.

A. Visualization screen with easy operation;

B. Is able to set up, update and amend the production perimeters, to maximize the production output;

C. Dynamic display of the systems status, automatic trouble shooting and warning notice;

D. Has automatic-locking function, avoiding mechanical accidents caused by operational mistakes;

E. Is able to troubleshoot the machinery via teleservice

2) Uses high-dynamic proportional and directional valves, which automatically adjust the oil flow and pressure as per specific working requirements, to buffer the hydraulic cylinder when working; uses integrated high-pressure and soft oil pipes, with easy installation;

3) Uses multi-shaft rotating and compulsory feeding, which greatly improves the density and intensity of the blocks, and reduces the feeding time as well;

4) Integrated structure of vibrating and moulding platforms, which reduces the weight of the machine, and improves the vibrating efficiency;

5) Uses double-line aero vibration-proof system, which reduces the vibrating force on the mechanical parts, improves the using lifetime of the machine, and reduces the noise;

6) High-precision guide bearings are used to assure the precise movement between the tamper head and the mould. .7) Heavy-duty machine
