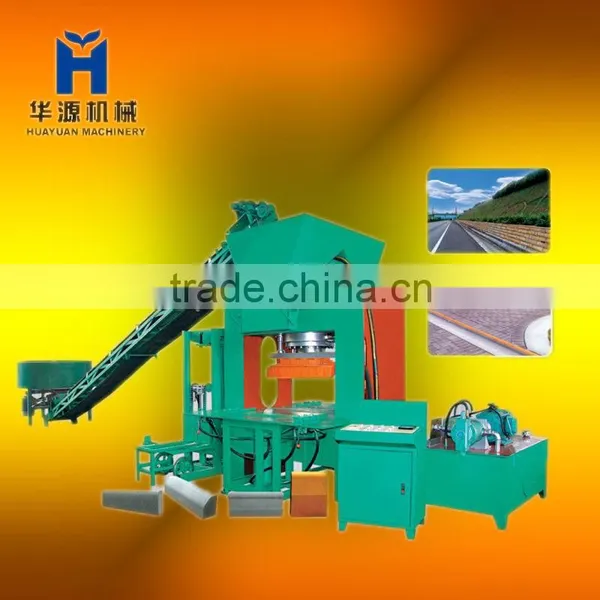

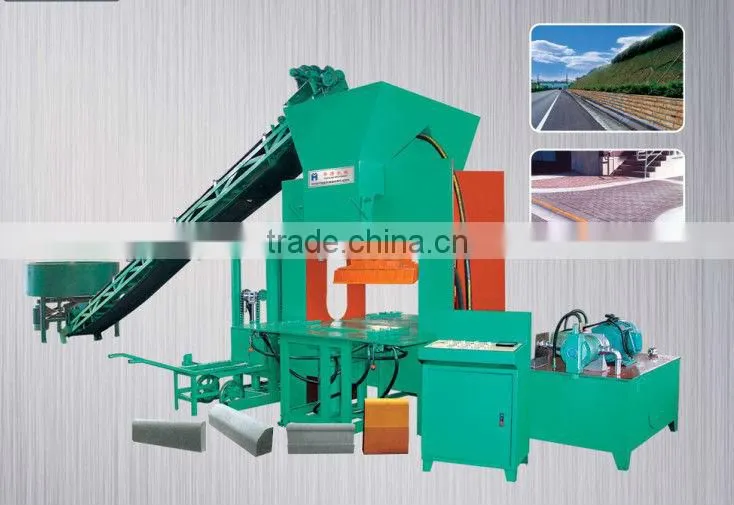

HY300t Type Paver Block Making Machine

HY300t Type Paver Block Making Machine photo-1
US$ 20,000 - 24,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Concrete
Payment & Shipping
Payment Methods:
Port of Shipment:
xiamen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Paving Block Making Machine
Brick Raw Material Concrete
Processing Brick Production Line
Method Hydraulic Pressure
Automatic No
Capacity 800pcs
Place of Origin Fujian, China
Brand Name HYM
Model Number HY300T
Voltage 380V
Power 16.5KW
Dimension(L*W*H) 8000X2900X2600MM
Certification ISO90001.2000
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

HY300t type paver block making machine
paver block making machine
earth brick making machine
glass block making machine

HY300t type paving block making machine
paver block making machine
earth brick making machine
glass block making machine

HY300t type paver block making machine





Main technical Specifications:

HY3000-type semi-automatic hydraulic curbstone molding machine,



HY3000type paver stone semi-automatic hydraulic making machine, the main frame structure of plate, solid, durable, high pressure, and adopts hydraulic cylinder push and pull mold, mold positioning accurately, whole machine high degree of automation, stable performance, density of pressed products, angular, high compressive strength, bending strength, suitable for all kinds of special shape, large size, high intensity, lu yanshi and fabrication, etc.

The machine makes a variety of large size curbstones with lengths up to 1000mm. mold-making for different thickness and dimensions can be customized.



Main technical parameters

 Max pressure

 3000KN

 Cylinder diameter

 360mm

 Pump pressure

 31.5MPa

 Pump displacement

 63ml/r

 Motor power

 16.5KW/380V



Machine Size



 8000x2900x2600(mm)

 Production/8hours

 600~800pcs(Paving stone)









HY300t type paver block making machine
