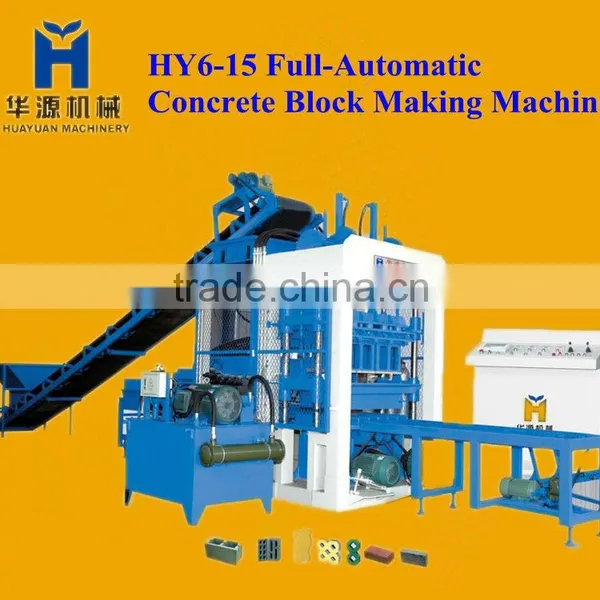

Full automatic concrete block making machine QT6-15brick making machine
block making machine
concrete brick making machine
Specifications
1.High efficiency and accuracy;
2.Two cylinders to make it high presure;
3.Automatic PLC control
4.electric&hydraulic system
1,Main technical Specifications:
Oriented column: made of special steel, chrome plated , and can bear powerful suppress and wears well.
Mold head: synchronize with mechanic, electricity and hydraulic. Products made by the same pallet are within narrow degree of errors.
Feeding: Sensor and hydraulic are droved synchronically in proportion, the force to swing material and arch-breaking generates strong centrifugal power to feed materials, which results in rapid feeding and particularly good for thin-walled products with multi-holes.
Vibration: Hydraulic drive and multi-source vibration system, the computer-controlled hydraulic drive generated vertical synchronization. Adjustable frequency makes it possible to feeding in low-frequency. High frequency operation guarantees good effects of different raw materials and the vibration acceleration is up to 17.5.
Control system: Computer control, HMI, electric parts uses brands like Mitsubishi. With experienced production actions, design philosophy integrated international and Chinese trends. To operate it requires small training and no experts. Its strong memory makes it possible to be upgraded.
Store and distribute materials devices: the computer-controlled material supply avoids suppressing materials, and ensures well-distributed feeding and stable and well product intensity.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2,Main technical parameters
CycleTime |
15-20(s) |
Total Power |
31.4kw |
Vibration Type |
hydraulic or moto vibration |
Vibration Frequency |
3800-4500(Times/Sub) |
Machine Dimension |
9450×3300×2700(mm) |
Pallet Size |
850×680×20(mm) |
Vibration Force |
68KN |
Gross Weight |
7500(kg) |
Rated Pressure |
25(mpa) |
Stacking Machine Power |
3(kw) |
Production /mould |
6pcs/M (390x190x190mm) 15pcs/M (240x115x90mm) 21pcs/M (200x100x60mm) |
Productions /8hours |
8640--11520pcs 21600--28800pcs 43200--57600pcs About 27000 pcs |
Full automatic concrete block making machine QT6-15
brick making machine
block making machine
concrete brick making machine
