Help CenterFull Automatic Concrete Color Brick Making Machine HY QT 4-15
Related Products
-
HY300t Type Pavement Block Making MachineUS$ 20,000 - 24,000MOQ: 1 Set -
QT4-15 Middle-size Block Making MachineryUS$ 29,000 - 35,000MOQ: 1 Set
-
QT4-15 Unfired Block Building MachineUS$ 29,000 - 35,000MOQ: 1 Set
-
QT4-15 New Machinery for Block, BrickUS$ 29,000 - 35,000MOQ: 1 Set
-
Hydraulic Vibration Block Making Machine QT5-15US$ 49,400 - 49,400MOQ: 1 Set
Specifications
full automatic concrete color brick making machine HY QT 4-15fly ash brick making machine
small concrete block machine
small machine and big capacity fly ash block making machine
fly ash brick making machine
small concrete block machine
small machine and big capacity fly ash block making machine
full automatic color brick making machine HY QT 4-15

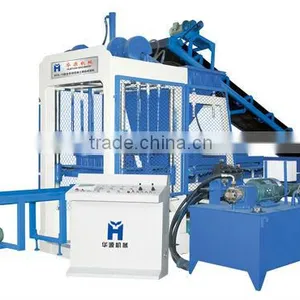

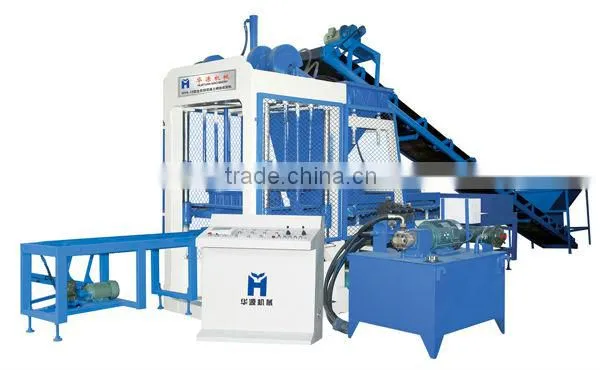

full automatic concrete color brick making machine HY QT 4-15
1,Main technical Specifications:.
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Uses Japan’s Mitsubishi PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
2,Raw materials :
crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Cycle Time |
15-20(s) |
Total Power |
22(kw) |
Vibration Type |
hydraulic vibration |
Vibration Frequency |
3800-4500(Times/sub) |
Machine Dimension |
8200×4350×2700(mm) |
Pallet Size |
850×560×20(mm) |
Vibration Force |
68KN |
Gross Weight |
6200(kg) |
Production/Mould |
4pcs/m(390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm) |
Productions/8h |
5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm) 9636--28800pcs (200x100x60mm) |
