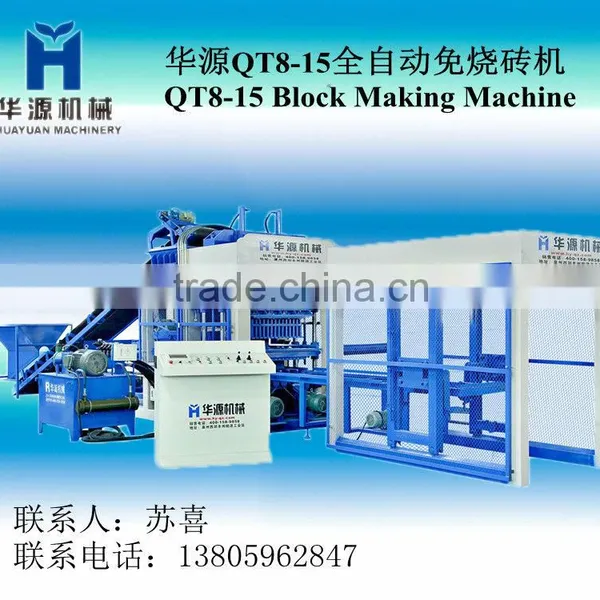

Help CenterConstruction Hollow Block Making Machine Full Automatic QT8-15
Related Products
-
Hydraulic Brick Forming Machine (HY300T)US$ 24,000 - 28,000MOQ: 1 Set -
QT4-15 Unfired Hollow Block Making MachineUS$ 29,000 - 35,000MOQ: 1 Set
-
Automatic Concrete Block Machine QT8-15US$ 50,000 - 58,000MOQ: 1 Set
-
Block Buliding Machine QT5-15US$ 49,400 - 49,400MOQ: 1 Set
-
QT4-15Machinery for Small Business ---block Making MachineUS$ 29,000 - 35,000MOQ: 1 Set
Specifications
Full automatic earth interlocking brick making machineconcrete block making machine
glass blocks making machine
Automatic block making machine in china 2013 new technology
oncrete block making machine
glass blocks making machine
automatic cement block making machine
full automatic hydraulic concrete block making machine
full automatic hydraulic earth interlocking brick making machine
Main technical Specifications:
1. Machine frame: adopt high strength steel and special welding technology manufacturing, very strong. |
2.Realization of full automatic block production, saves the operation time, provide the production efficiency. |
3. Mould head: mechanical and electrical hydraulic synchronous drive, the same height error rarely plate products, good product consistency. |
4. Broken arch type cloth device (particularly favorable to porous brick cloth, the more homogeneous) |
5. Configuration material feeding device, two fabric to produce various color face or perfect floor tiles. |
6. multi-purpose of the machine. change the mold to produce various specifications of hollow block, multi-holes brick, paver brick and planting grass brick, slope protection brick, etc. |
7. Control system has the self-locking function, to avoid the misoperation. Can implement remote fault diagnosis through telephone calls, real-time safeguard customer production run smoothly. |
Production raw materials: the stone powder, sand, gravel, cement, can be a lot of adding fly ash, slag, steel slag, coal gangue, ceramsite, perlite and other industrial waste
Multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Main technical parameters
Cycle Time |
15-20(s) |
Total Power |
38.1(kw) |
Vibration Type |
hydraulic vibration |
Vibration Force |
95KN |
Gross Weight |
10500(kg) |
Vibration Frequency |
3800-4500(Times/sub) |
Pallet Size |
900×840×25(mm) |
Machine Size |
9800×3600×2800(mm) |
Production per Mould |
8pcs/M(390x190x190mm) 18pcs/M(240x115x90mm) 39pcs/M(240x115x51mm) 28pcs/M(200x100x60mm) |
Production/8hours |
11520—15360pcs(390x190x190mm) 29800—39450pcs(240x115x90mm) 56000—75800pcs(240x115x53mm) 40320—53760pcs(200x100x60mm) |
