Specifications
1,High automatic and easy to operate ;2, High-heat treatment special technology to make the mould more durable and more firm
Main technical Specifications:

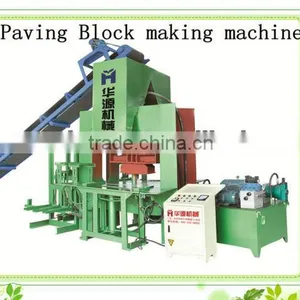

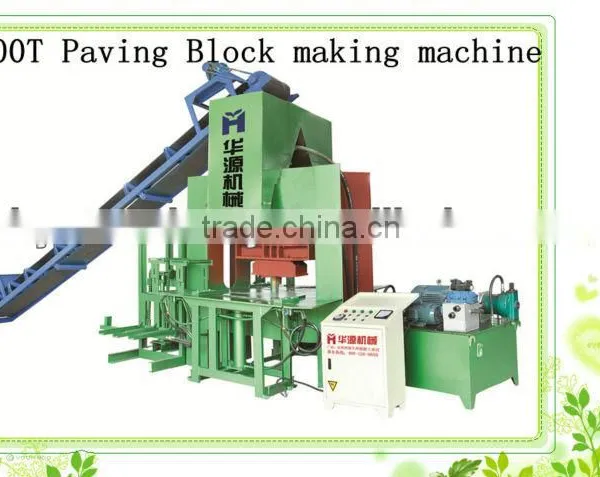

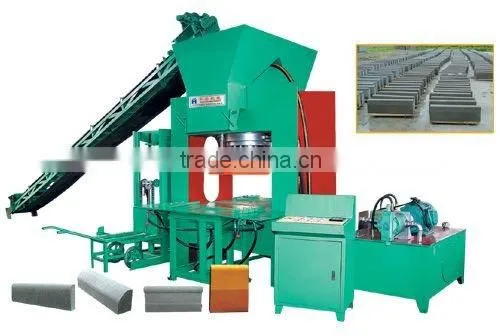

HY3000-type semi-automatic hydraulic curbstone molding machine,
Its main structure is made of plates, which is strong, durable, and powerful. It uses hydraulic push cylinder to lift mold, so that it guarantees accurate mold positioning. It operates stably in high degree of automation; and manufactures high density products with smooth and sharp angles and edges, which are able to stand powerful strength and suppress. This machine is suitable to produce special shapes, large size, high-intensity Curbstones and prefabricated parts.
The machine makes a variety of large-size curbstones with lengths up to 1000mm. mold-making for different thickness and dimensions can be customized.
Main technical parameters
Max pressure |
3000KN |
Cylinder diameter |
360mm |
Pump pressure |
31.5MPa |
Pump displacement |
63ml/r |
Motor power |
16.5KW/380V |
Machine Size
|
8000x2900x2600(mm) |
Production/8hours |
600~800pcs(Paving stone) |
|
|
