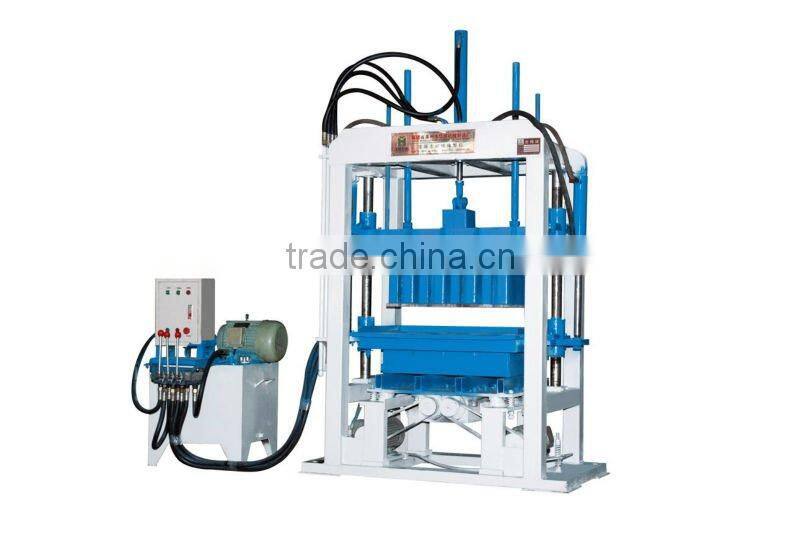

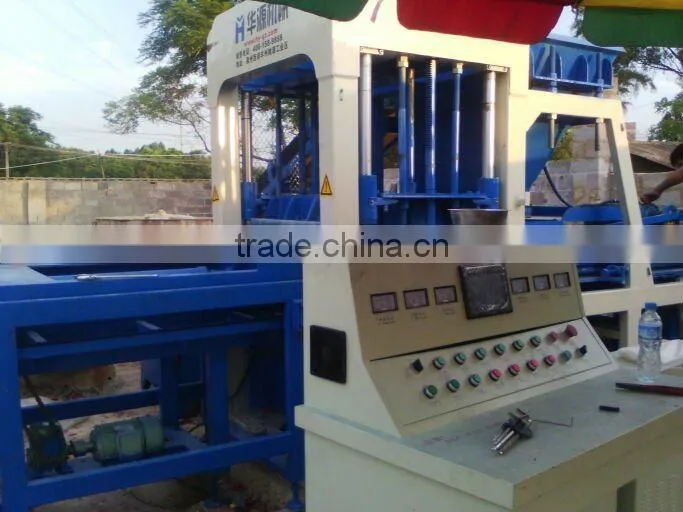

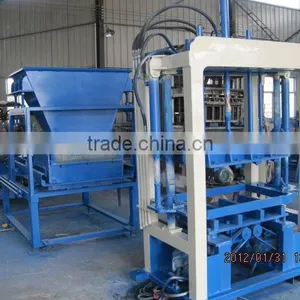

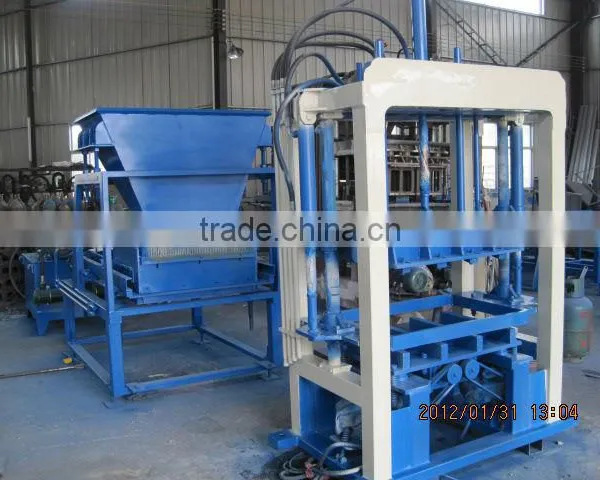

HYM-4-40 Manual Block Making Machine Machine of Block Machine Offers

US$ 12,000 - 16,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Interlock Block Making Machine

Brick Raw Material:

Cement

Fujian Nanan Huayuan Machinery Manufactory

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Interlock Block Making Machine

Brick Raw Material Cement

Processing Brick Production Line

Method Hydraulic Pressure

Automatic No

Capacity 30sets/month

Place of Origin Fujian, China

Brand Name HYM

Model Number HY4-40

Voltage 380V

Power 15.5kw

Certification ISO9001:2000

After-sales Service Provided Engineers available to service machinery overseas

1.block machine offers
2.used brick making machine
ncrete block making machine
4.cinder block machine
ISO9001:2000

1)Main technical Specifications:

Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .

multiple uses, it can produce all type of standard building blocks by changing mould.

1,Multi-holes block and hollow block .

2,Ceram site heat preservation block.

3,Composite heat preservation concrete block

The above production come with good heat preservation performance, and it meets the new national energy conservation policy.

Cycle Time	25-30(s)	Total Power	15.5(kw)
Vibration Type	moto vibration	Vibration Frequency	3800-4500(Times/sub)
Machine Dimension	1600×800×2200(mm)	Pallet Size	850×560×20(mm)
Vibration Force	25KN	Gross Weight	1800(kg)
Production/Mould	4pcs/m (390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm)	Productions/8hours	960-1500pcs(390x190x190mm) 2800-4600pcs(240x115x90mm) 6200-7000pcs(240x115x53mm) 3600--5700pcs (200x100x60mm)
