Help Center(HYM3-25) Fly Ash Brick Making Machinery Semi-automatic Block Making Machine Cement Block Machine
Related Products
-
HY-QT3-25 Mobile Block Making MachineUS$ 15,000 - 20,000MOQ: 1 Set -
QT4-40 The Most Potential Concrete Hydraulic Block MachineUS$ 10,000 - 12,000MOQ: 1 Set
-
New Small Scale Industries Machines Salt Lick Block Making MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
HY3-25 Semi-automatic but Easy Operate Block Making Machine Aac Block Machine and PriceUS$ 15,000 - 20,000MOQ: 1 Set
-
Huayuan QT4-25 Semi Automatic Concrete Block Making MachineUS$ 10,000 - 12,000MOQ: 1 Set
ncrete block making machine price
2.fly ash brick making machinery
3.brick making machinery
4.cement block machine
1.Main technical Specifications:
1,its face mix device is able to produce pavers with color layer. |
2,Compact design semi-automatic control result in easy operation. Low investment brings you cost-saving |
3,Our machines , with harmonic cooperation with mechanical, electrical and hydraulic machines functions, guarantees a reliable and high output of concrete products |
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , ect. .
multiple uses, it can produce all type of standar d building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2.Main technical parameters:
Cycle Time | 20-30s/ time | Capacity/8 hours | Paving block 150-200square Hollow block 2400-3000pcs |
Vibration frequency | 4500-5100 Times/sub | Oil pump motor | Y132S2-4 N=5.5kw |
Jack cylinder | 80X300 Φ50 | Side cylinder | 63X250 Φ40 |
Rated pressure of hydraulic system | 8.5Mpa | Total Power | 21.4kw |
Pallet Size | 680 x 535 x 20mm | Gross Weight | About 3000kg |
Machine Dimension | 4000 x 3500 x 2300mm | Load capacity | Standard block 21pcs, Hollow block 3pcs |

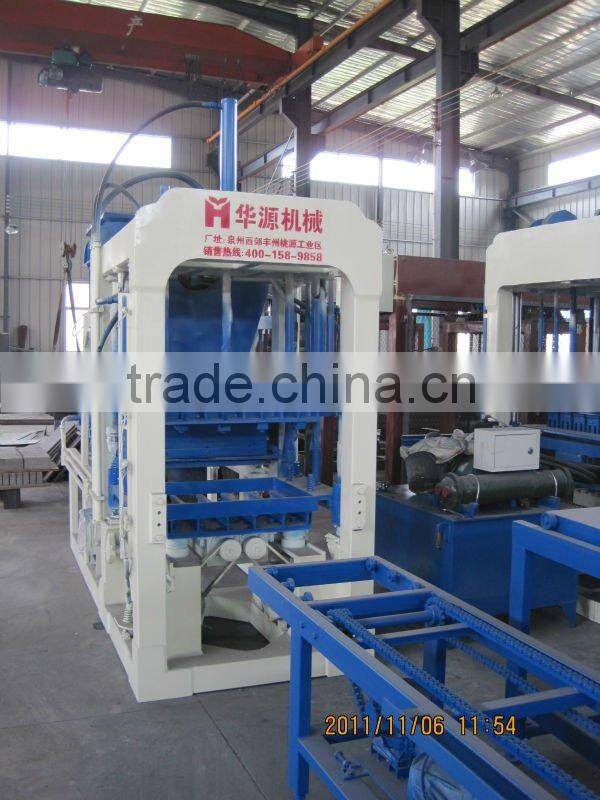

3.Product shows:

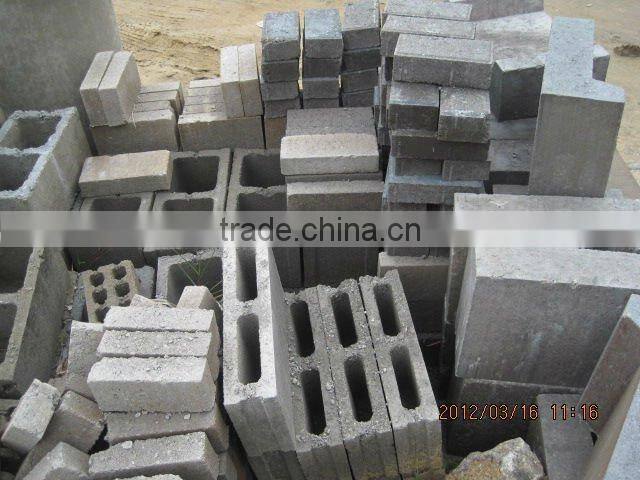

4.Block and brick Samples:
