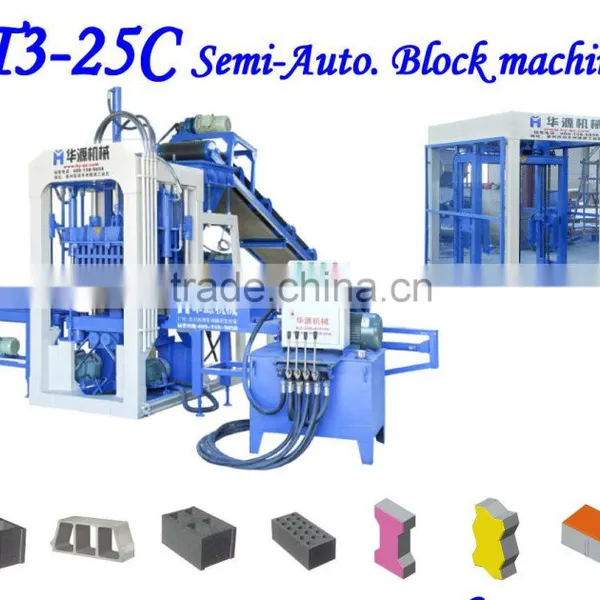

QT3-25 Small Scale Industries Machines
1,cycle time:25-30s
2,pallet size:680*535*20mm
3,color brick making machine
China famous factory who make the Small Scale Industries Machine for QT3-25 concrete block making machine
1,China famous factory who make the cement brick making machine QT3-25 Small scale industries machines, concetre block making machine,brick making machine.
2,easy operated and cheaper cement hollow brick making machine,oncrete hollow brick making prodction line,paver brick making machine,
Our company is special in concrete block making machine and machinery for small industries , our products include:
(A)block making machine; (B)brick making machine; (C)concrete block machine; (D)cement block machine; (E) small scale industries machines;(F)color paver machine (G) fly ash brick makig machine (H) machinery for small industries (I) Small scale industries machines
1,Main technical Specifications:
1,its face mix device is able to produce pavers with color layer by QT3-25 Small scale industries machines . |
2,Compact design semi-automatic control result in easy operation. Low investment brings you cost-saving |
3,Our machines , with harmonic cooperation with mechanical, electrical and hydraulic machines functions, guarantees a reliable and high output of concrete products |

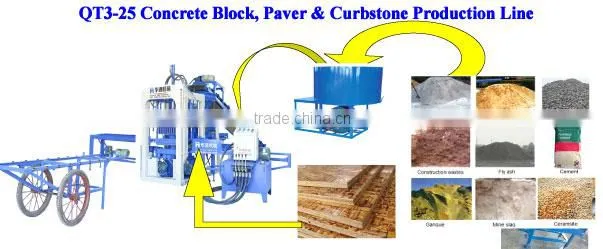

Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , ect. .
multiple uses, it can produce all type of standar d building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2,Main technical parameters of QT3-25 Small scale industries machines
Cycle Time |
20-30s/ time |
Capacity/8 hours |
Paving block 150-200square Hollow block 2400-3000pcs |
Vibration frequency |
4500-5100 Times/sub |
Oil pump motor |
Y132S2-4 N=5.5kw |
Jack cylinder |
80X300 Φ50 |
Side cylinder |
63X250 Φ40 |
Rated pressure of hydraulic system |
8.5Mpa |
Total Power |
16.3KW |
Pallet Size |
680 x 535 x 20mm |
Gross Weight |
About 3000kg |
Machine Dimension |
4000 x 3500 x 2300mm |
Load capacity |
Standard block 21pcs, Hollow block 3pcs |
3,Productivity capacity:
Length( L*W*H, mm) |
Pieces/Mould |
Pieces/Hour |
Pieces/Day (8 Hours) |
Remarks |
|
Solid blocks |
240×115×53mm |
20 |
3,000 |
24,000 |
|
Perforated blocks |
240×115×90mm |
10 |
1,500 |
12,000 |
|
Hollow blocks |
390×190×190mm |
3 |
450 |
3,600 |
|
Hollow blocks |
400×200×200mm |
3 |
450 |
3,600 |
|
4, Superiority of the Model of QT3-25 small scale industries machines:
2.Mix 10% cement for blocks & bricks making and the product intensity is up to 15 Mpa; 3.Can add block raw materials automatically and the blocks can be stacked Immediately.
4.Can be used to make various blocks & bricks in dimension, shape and use, and various block raw materials are applicable
5. Nature of blocks produced by this model: High density; anti-freeze, good impermeability; insulation, heat insulation, thermal insulation performance; precise dimensions.
6. It is a multi-purpose machine, which produces all kind of hard shoulders of highways, river brick, slope protection brick, square brick, brick piers, and other bricks such as planting grass products. You may also produce colored blocks if you add a pigment mixer.

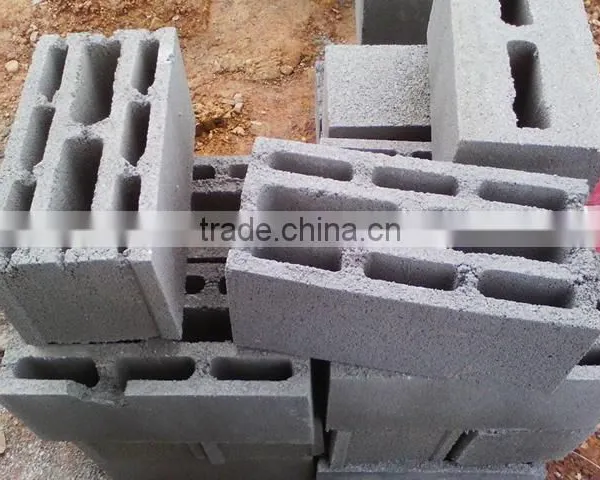

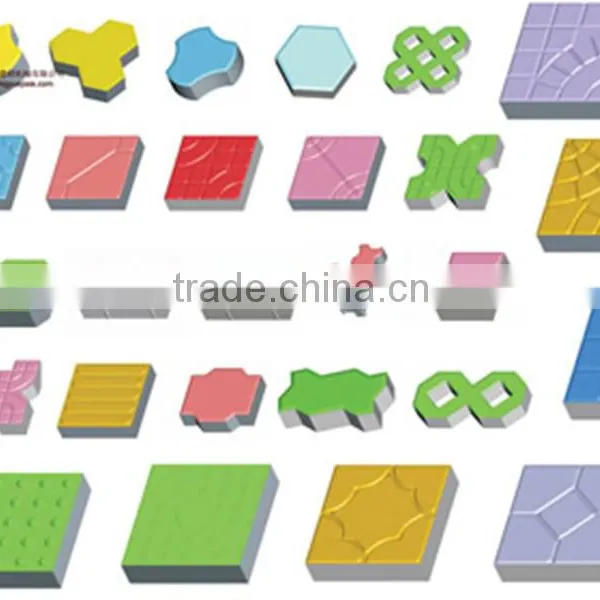

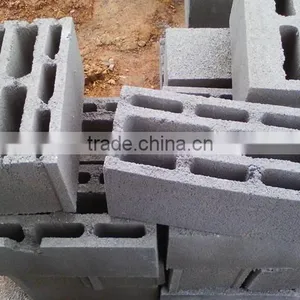

5,Block & Brick Samples

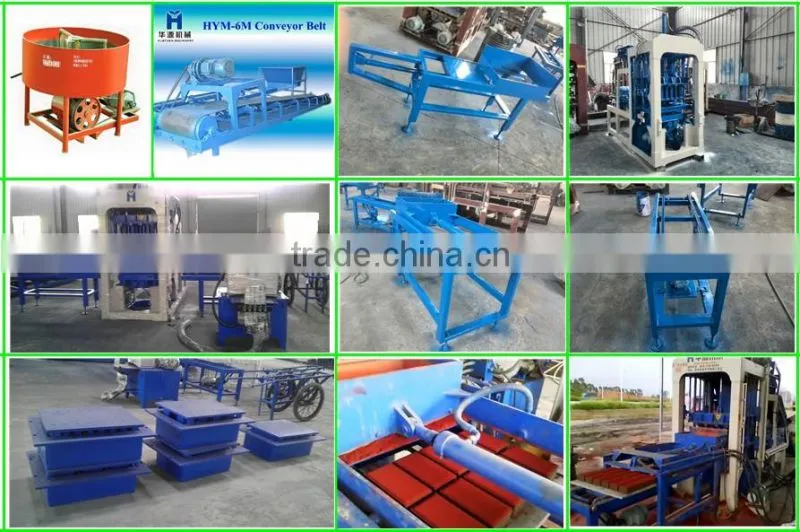

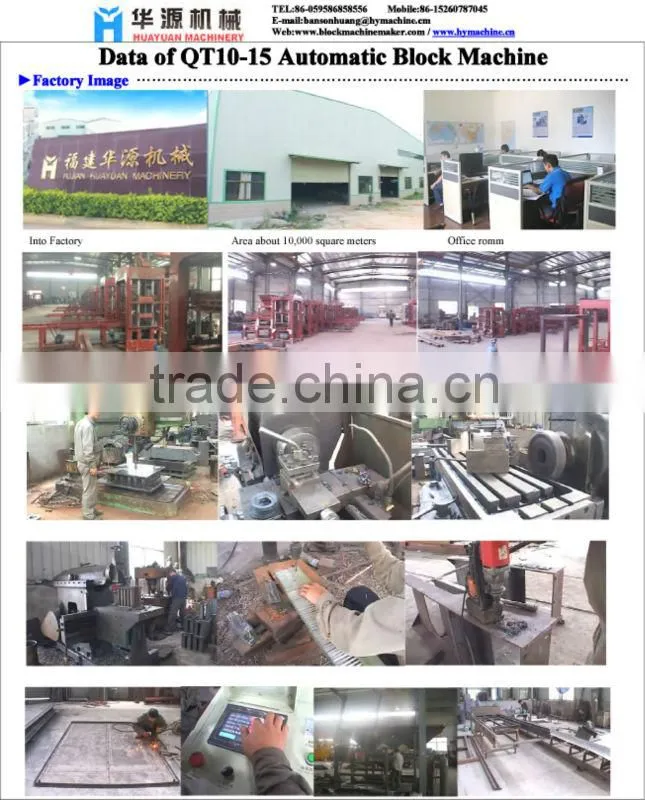

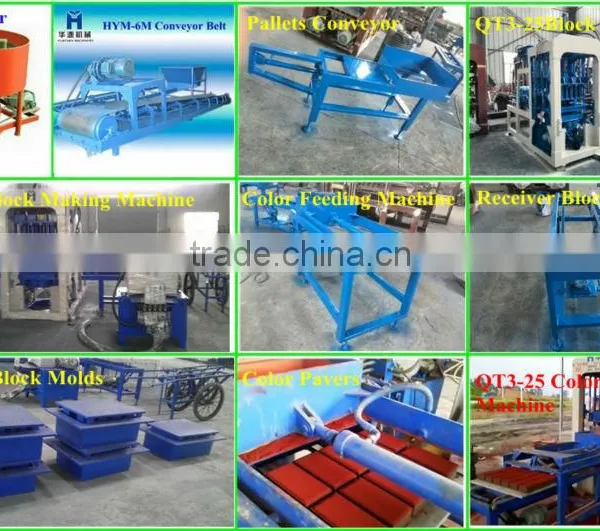

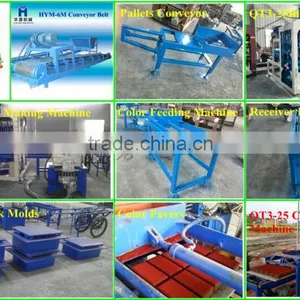

6,Photos of Our Factory for making Small scale industries machines

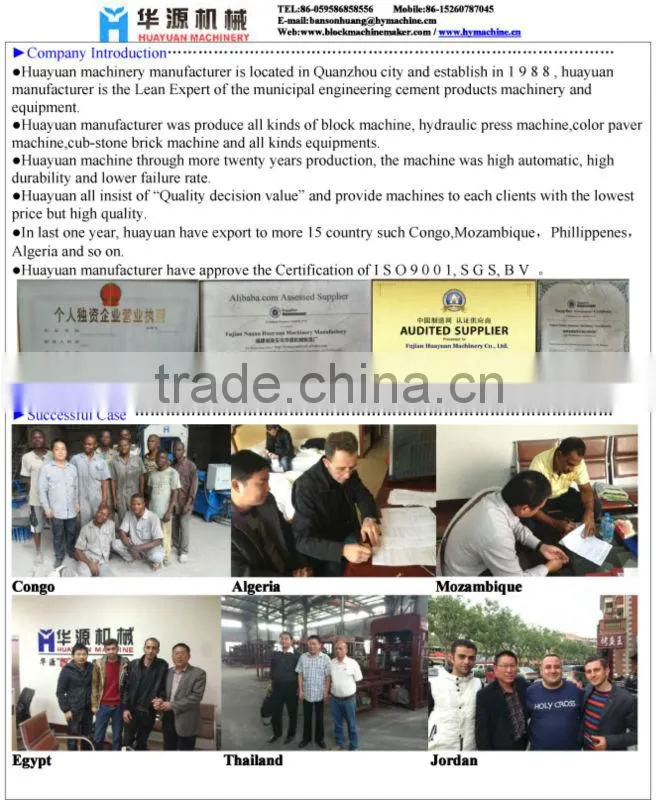

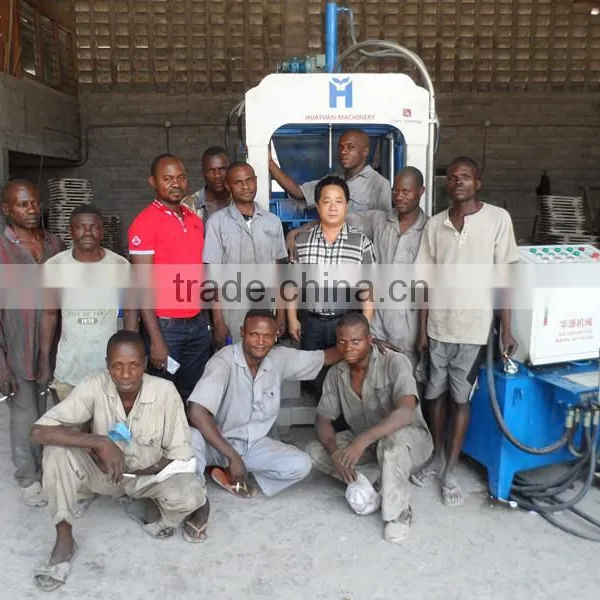

7, Small scale industries machines was at Cogo,Africa and other contries:
Our service and big advantages of our small scale industries machines:
1 Full service: installation, training, commissioning, engineers available to service overseas
2 One year guarantee, during the period we could supply spare parts if they are broken.
3 Electrical system consists of World Brand PLC control system , German Seimens and Schneider electronic element, Weinview Touch Screen. With data input and output, control system has safely logic control and trouble-shooting function.
4 The moulds are changeable, and it's able to produce various kinds of blocks, bricks, interlocks, pavers and curbstones in different types, sizes, shapes, and color layers.
5 With surface pigments mix device, it's able to produce pavers with color layer.
6 Heavy-duty machine frame, which uses high-intensity steel and advanced heat treatment, make it wear resistant.
