Specifications
1.small invest and high return2.easy operated, high capacity.
3.heavy-frame, long life span

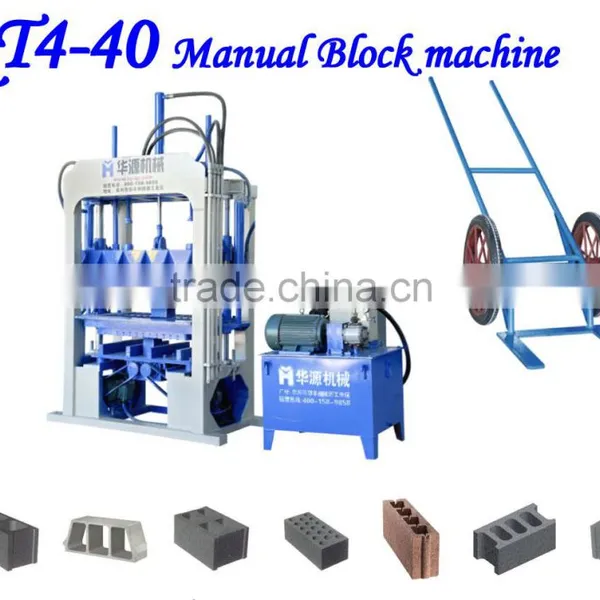

QT4-40 small Manual block forming machine operated by manpower
1.Main specification for QT4-40 small manual block forming machine
|
Cycle Time
|
40-45(s) |
Vibration Type |
Vibration extrusion forming |
Motor frequency |
50HZ |
Total Power
|
15.5(kw) |
Rated Pressure |
8.5Mpa |
Gross Weight
|
1500kg |
|
Pallet Size
|
850x560x20mm |
Machine Dimension
|
800×1600×2200(mm) |
2.Brick sizes and capacity
blocks |
240x115x90mm |
12 |
4200-6000pcs/shift |
solid bricks |
240x115x51mm |
26 |
9100-13000pcs/shift |
hollow bricks |
390x190x190mm |
4 |
1400-2000pcs/shift |
3.advantages of concrete brick shaping machine QT4-40
1. reasonable design, compact structure, all mechanical transmission, low failure rate.
2. fluctuation pressure, strong vibration, suitable for high strength block production forming pallet (3-5 storey height).
3. multi-usage, with different mould can produce various specifications of the block.
4. block compactness uniform strength is high, its performance can be comparable with large equipment.
5. famous brand electrical appliances, quality goods bearing, performance is stable and reliable.
6. a automatic protection device, high safety coefficient, not easy attaint parts.
7. high technology, high quality, high efficiency, to ensure the high rate of return on investment.
4.Raw materials of concrete brick shaping machine QT4-40
crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.

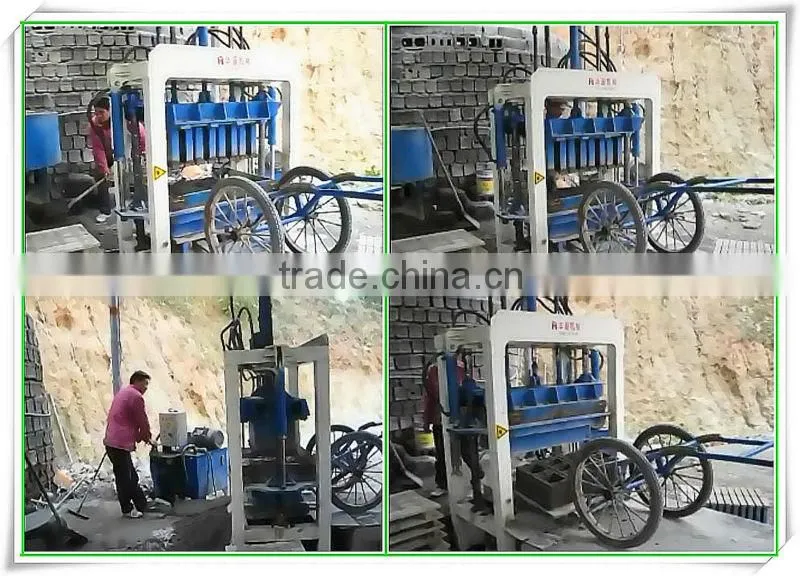

5.Machine Display
