1.Describe of JS750
This type of mixier can mix the plastic and half-dry hard concrete,fluid concrete and light aggregate, it is widely applied to the common constraction like brige,rode and each kind of precast product factory. It can work independently or be used as facility concrete plant, which is applied with correspond batching machine. It has high prduction efficiency,easy for driving,reposfully and low noise. The electrical system adopts import component, which is good performance and reliability.
2.Technology materials
| Type | JS750 |
| Capacity of material --IN(L) | 1200 |
| Capacity of material --OUT(L) | 750 |
| Productivity(m3/h) | ≥37.5 |
| Maximum diameter of / Cobble | 80 |
| Bone material (mm) /Crushed stones | 60 |
| Mixing fan / Turning speed(r/min) | 32.6 |
| Mixing engine / Type | Y200L-4 |
| Total Power(kw) | 19.1 |
| Mixing engine /Type | YEZ132S-4-B5 |
| mix engine Power(kw) | 5.5 |
| Pump / Type | 50DWB20-8A |
| Motor Power(kw) | 7.5 |
| Hosting speed of material holder | 19.2 |
| Outside size(mm) / Transport state | 4150*3636*4900mm |
| Working state | 4950*3636*6530mm |
| Weight (kg) | 4000 |

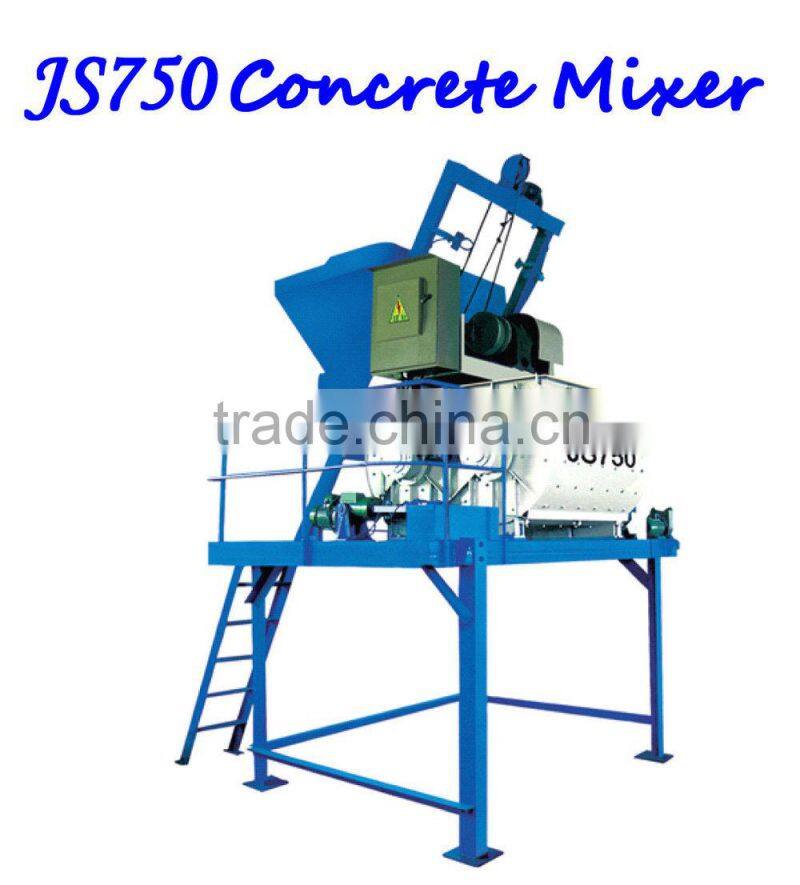

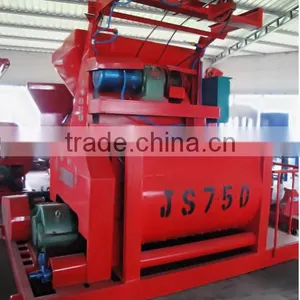

3.Pictures of product

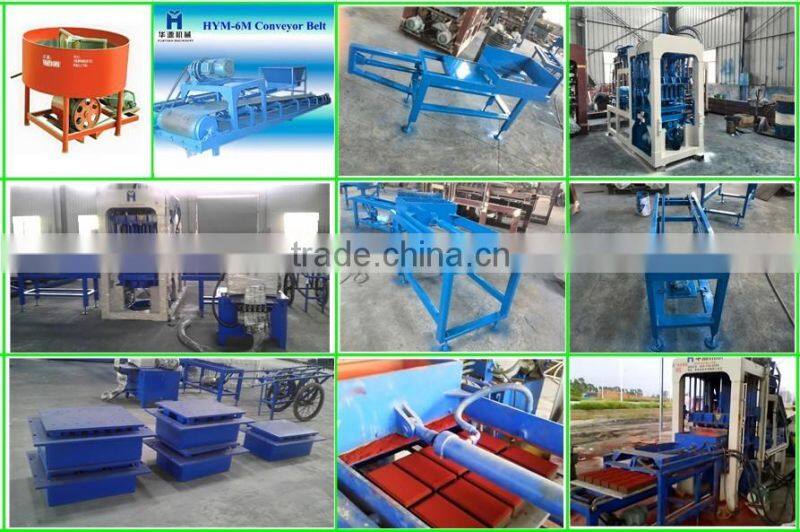

4.Workshoip and product display
5.Customer visit
6.Our service
Our company has product with reliable performance, have after-sale service team with rich experience of block machine and paverment block machine. We follow the tides closely; the internet technology is applied to every process of producing and operation. We supply the latest product information and technical service through internet activity. We believe you not only need a product but also good after-sale service. We not only value technology and quality of the product, also we are willing to supply service with comfortable, convenient, assured and carefree.
Before Sales
1. Guide our customers to deploy the most useful equipment item according to their requirement.
2. Provide technical data, including equipment bill, layout, base specification and installation picture for reference.
3. Design and manufacture product according to the customers' special requirement.
4. Dispatch the technical person to reach the locale to layout field, design the best installation flow and scheme for reference for free.
During Sales
1. Manufacturing product according to the technology standard strictly.
2. Test the machine according to relevant stipulate of the equipment.
3. Verify the product strictly after manufacturing complete.
4. Delivery according to the contract.
After Sales
1. Dispatch special after-sales service staff to help customer install and adjust the machine, trial run and train the operator on the site.
2. Warranty policy: three guarantees of quality, the product will be guarantee for 1 year (except wearing part). The service life of the machine depends on maintenance. We will repair the machine for free when meet equipment trouble during the warranty period meanwhile customer maintenance the machine according the operation procedure. We will supply lifelong maintenance guide, also we will timely solve all problems the operator meet during operation.

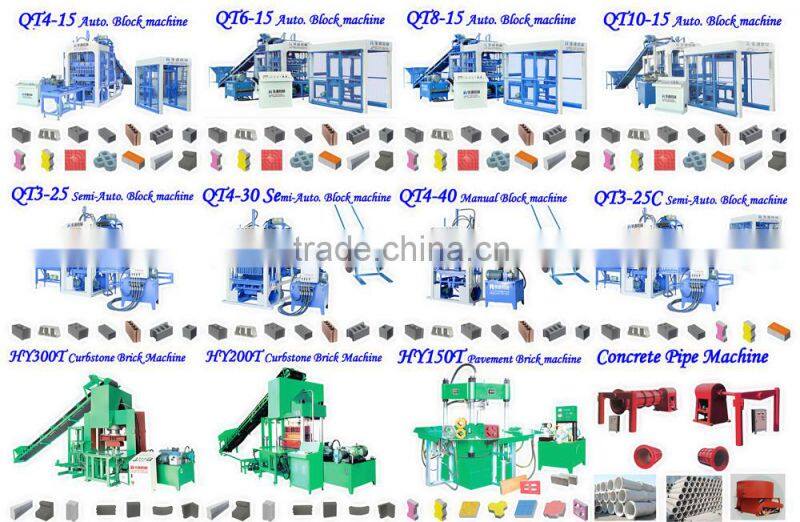

7.Related product
8.Why choose us
If you are interested in our concrete mixer or brock making machine,please contactme:
Skype:live:kevinshangfinder
TEL:+86 15060641046
