Specifications
Hydraulic qt8-15 block making machine for sale1.hollow brick machine
lid brick machine
3.paver brick machine

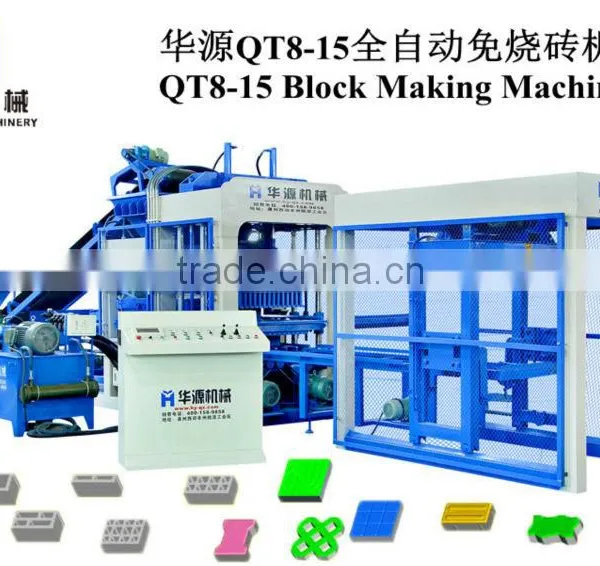

11520-15360pcs/day qt8-15 block making mahcine for sale

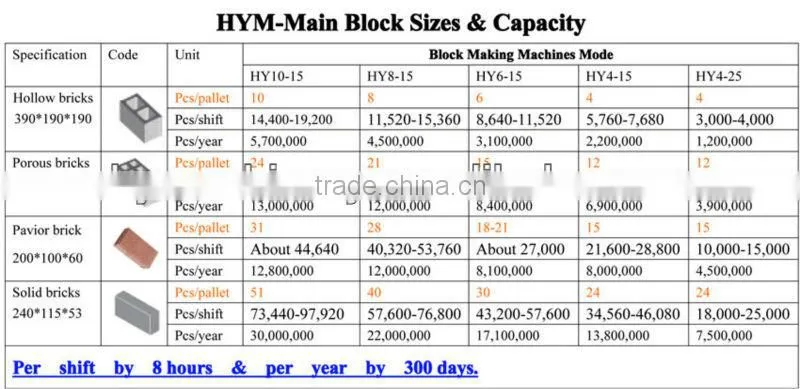

1.Bricks size and Output of QT8-15 block making machine
Block Type |
Block Size |
Output Per Mould |
Output Per Shift (8 Hours) |
Block Picture |
Multi-hole Block |
240*115*90mm |
18 (pcs) |
25,920-34,560 (pcs) |
|
Standard Block |
240*115*51mm |
40 (pcs) |
57,600-76,800 (pcs) |
|
Hollow Block |
390*190*190mm |
8 (pcs) |
11,520-15360 (pcs) |
|
Color Paver Block |
200*100*60mm |
28(pcs) |
31,600-40,320( pcs) |
|

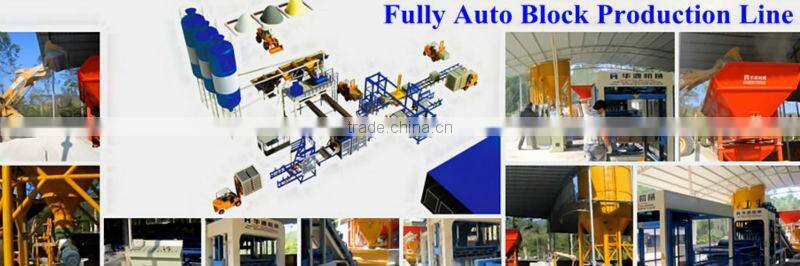

3. Flow chart

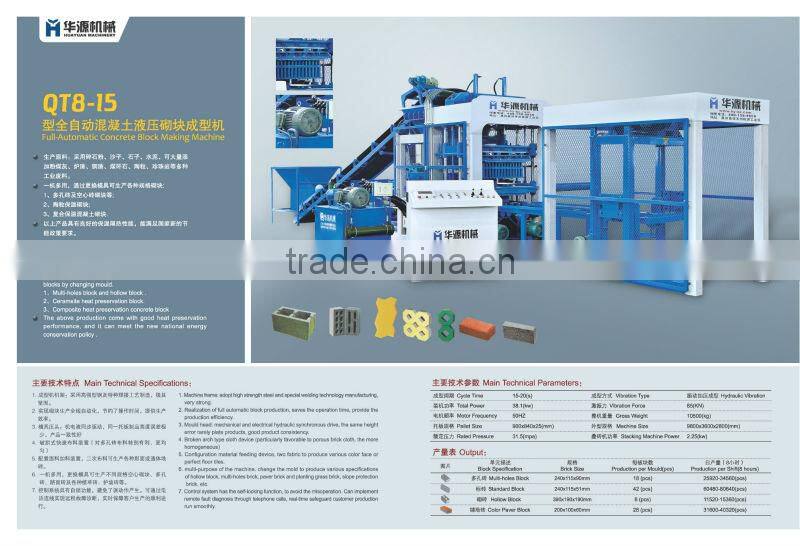

3. Itroduction of QT8-15 block making machine
1. Super-strong steel structure made of extensive imported original parts, ensuring more stability and reliability for the concrete block machine body.
2. The whole process uses a PLC aptitude control and dialogue system of human-machine interface, easy to analyze the chance signal, ensure the best operation effect.
3. High-efficient and super-strong vibration system, computer-control flow pressure of the hydraulic system, realize vertically synchronous vibration, frequency conversion, and braking, with synthetic output compounded with double vibration sources, thus greatly increase product compactness and mold-box service life.
4. The cloth system adopts semi-closed screen reticular rotational feeding unit to feed materials forcedly, with evenness and even speed, ensuring product intensity.
5. Fitted with special hydraulic loading unit, readily realize mass and automatic production, saving a great deal of human power, maintenance field, and circulating fund investment.
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
4.QTY8-15 block making machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.
5.Advantages of QTY8-15 block making machine A:Hydraulic from Taiwan, Hydraulic valve from Japan ,well-known brand,the quality is very good.
B:the PLC is Siemens,touch screen.
C:the steel is our best national standard No.45 steel.
D:the welding is the best welding technology in our country,anti-wear, aseismatic,anti Moist
E:the mould is high temperature carburizing heat treatment through 900 Degrees Celsius

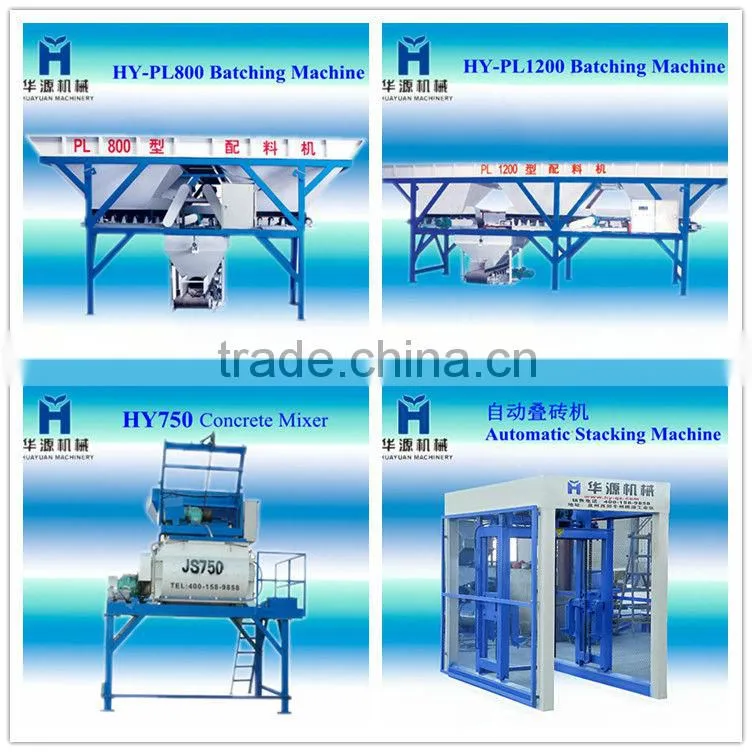

8.Other machine work with QT8-15 block making machine
Batching plant
- PL series of concrete batching plant is the front automatic batching equipment of concrete mixing equipment,
- can automatic complete the batching of sand, stone, cement and other material, according to the requirements
- of concrete proportion.This series of products are applicable to different working station.
- Component Part: store hopper, weighing systems, material feeding system, electronic control system,etc
- Structure form: in line or superimposed .
- Feeding way: pneumatic valve and belt conveyor.
- Strength: many kinds of combination forms, high precision weighing, simple operation, high automatic egree,etc
Concrete Mixer
1).The concrete mixer is the advanced, ideal type at home and abroad. Good mixing quality, high automation and efficiency, low energy consumption and noise as well as easy operation are the advantages of it.
2).Besides, it also has the strengths of high speed of discharging, long service life of liner and blades and easy maintenance.
3)Applies for the mix of plastic concrete, dry concrete, light weight aggregate concrete and different mortars.
4).Mtorized discharge port is applied in the machine, which makes it could be matched with dump car.
5).So it is the ideal machine for construction site and prefabrication.
Automatic Stacker
it is used to send the finished brick out automatic which is helpful to imporve the productivity effectively .
