Home > Products > Brick/block production line > QT10-15 high efficiency paver block maker machine

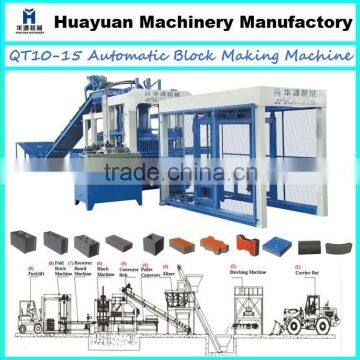

QT10-15 high efficiency paver block maker machine
- 20 Set / Sets per Month
- xiamen
- T/T
You May Like
-
brick making machine hollow block machine
-
Automatic block making production line QT4-15 porous block making machine 0086-13400860405
-
2014 Huayuan brand QT6-15 automatic concrete hollow block machine for sale
-
High capacity QT8-15 building block machine/porous block machine/solid block machine
-
Full automatic sand cement brick machine/ egg-laying brick machine/egg layer brick machine for house construction QT4-15
-
HOT ! QT6-15 hydraulic pressure solid brick machine,machine made building brick
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Concrete | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 20sets per month | Place of Origin | Fujian, China | |
| Brand Name | HYM | Model Number | QT10-15 full automatic brick making machine | |
| Voltage | 220V/380V | Power | 45.1KW | |
| Dimension(L*W*H) | 11500*4050*2800MM | Certification | ISO | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
QT10-15 high efficiency paver block maker machine
1.Bricks size and capacity
Block Type | Block Size | Output Per Mould | Output Per Shift (8 Hours) | Block Picture |
Multi-hole Block | 240*115*90mm | 24 (pcs) | 34,580-46,080 (pcs) | |
Standard Block | 240*115*51mm | 52 (pcs) | 74,880-99,840 (pcs) | |
Hollow Block | 390*190*190mm | 10 (pcs) | 14,400-19,200 (pcs) | |
Color Paver Block | 200*100*60mm | 36 (pcs) | 43,200-51,840( pcs) | |
2. Main Features and Parameters
. automatic cement block machine QT10-15 main advantages
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
Specification
| Cycle time | 18~25s |
| Vibrating force | 108 KN |
| Power | 45.1 KW |
| Weight | 12.8T |
| Dimensions | 11500*4050*2800MM |
| Pallet size | 1100*880mm |
| Machine Installation and Brick / Block Production Area | Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better |
| No. of Operator | 5 |
| Mixer | JS750 Mixer |
3.QT 10-15 cement block making machine other information
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:250-340T
6. water consumption per day:3%-5% of raw material Weight
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
