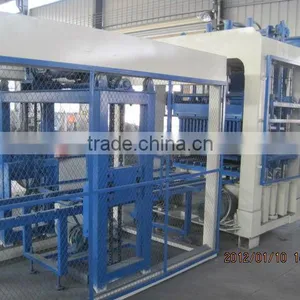

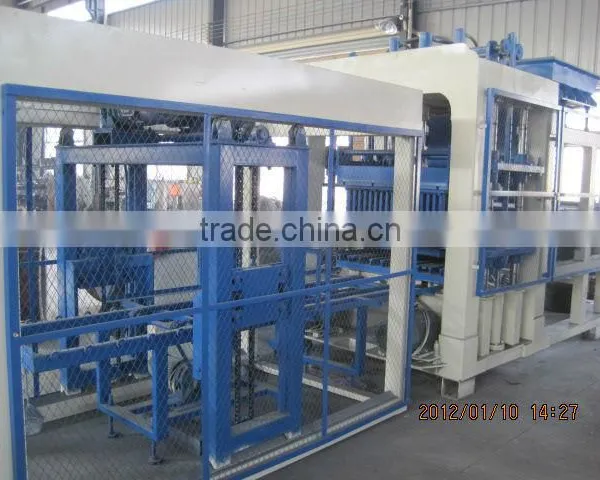

Help CenterSmall Block Machine QT10 New Model Full-automatic Hydraulic Block Production Line
Related Products
-
Low Price for QT10 New Model Full-automatic Hydraulic Block Production Line Foam Concrete Block Making MachineUS$ 85,000 - 92,000MOQ: 1 Unit -
Fully Automatic Concrete Block Making Machine Price in India QT6-15 Concrete Blocks Making MachineUS$ 50,000 - 56,000MOQ: 1 Set
-
2013 Latest Technology Fly Ash Brick Making Machine QT8-15 Fly Ash Brick Making Machine in India PriceUS$ 48,000 - 55,000MOQ: 1 Set
-
2015 Full Automatic Interlock Brick Machine Price QT6-15 Hydraform Brick Making Machine in South AfricaUS$ 37,500 - 50,000MOQ: 1 Set
-
New Technology QT5-15 Automatic Cement Brick Machine From Famous Brick Making Machine China SupplierUS$ 25,460 - 33,000MOQ: 1 Set
Block Machine1: SIEMENS PLC control and German Frequency small block machine .
2: QT10-15 Fully Automatic block making machine
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine
1,Main technical parameters:
| Cycle time: 15-20(s) | Vibration Type: hydraulic or moto |
| Total Power: 45.1kw | Vibration Force: 105(KN) |
| Vibration Frequency: 3800-4500(times/sub) | Gross Weight: 12800(kg) |
| Pallet size : 1100×880×25mm | Machine Size:11500×4050×2800(mm) |
| Rated Pressure: 31.5(mpa) | stacking power:3kw |
| Block Specification : | Production per shift (8 hours) |
| 390×190×190mm 10(pcs) | 14,400-19,200(pcs) |
| 240×115×53mm 51(pcs) | 73,440-97,920(pcs) |
| 240×115×90mm 24(pcs) | 34,560-46,080(pcs) |
| 200×100×60mm 31(pcs) | about 44,640(pcs) |
2,Main Technical Specifications:
A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
3.Clay Brick Sizes and capacity:
Brick | Sizes | Output/ mould | Output/Shift(8hours) | picture |
Blocks | 390x190x190mm | 10 | 14,400-19,200 |
|
Porous bricks | 240x115x90mm | 24 | 34,560-46,080 |
|
Interlocking block | 200x100x60mm | 31 | About 44,640 |
|
Solid bricks | 240x115x53mm | 51 | 73,440-97,920 |
|
4. Production Flow Introduction
5.Products display:
6.Block and brick Sample:
