1,manual block making machine price
2,cement interlocking block machine
3.brick making machine
4concrete block making machine
Concrete Brick making machine,brick making machine,concrete brick machine,concrete block making machine,hollow brick machine,hollow brick making machine
1,Main technical parameters:
| Cycle time: 15-20(s) | Vibration Type: hydraulic vibration |
| Total Power: 37.4kw | Vibration Force: 85(KN) |
| Vibration Frequency: 3800-4500(times/sub) | Gross Weight: 10500(kg) |
| Pallet size :900×840×25mm | Machine Size: 9800*3600*2800mm |
| Rated Pressure: 31.5(mpa) | |
| Block Specification : | Production per shift (8 hours) |
| 390×190×190mm 8(pcs) | 11,520-15,360(pcs) |
| 240×115×53mm 40(pcs) | 57,600-76,800(pcs) |
| 240×115×90mm 21(pcs) | 30,240-40,320(pcs) |
| 200×100×60mm 28(pcs) | 40,320-53,760(pcs) |
2,Main Technical Specifications:
A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
3.Clay Brick Sizes and capacity:
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
8 |
11,520-15,360 |
|
Porous bricks |
240x115x90mm |
21 |
30,240-40,320 |
|
Interlocking block |
200x100x60mm |
28 |
40,320-53,760 |
|
Solid bricks |
240x115x53mm |
40 |
57,600-76,800 |
|
4. QTY8-15 full automatic concrete block making machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : three or four
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:220-230T
6. water consumption per day:3%-5% of raw material .Weight.

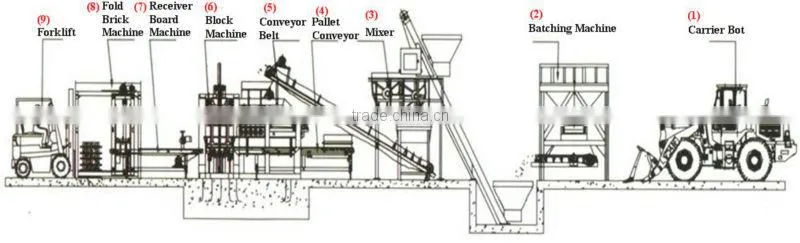

5. Production Flow Introduction:
6.Products display:
7.Block and brick Sample:
8.Contact:
