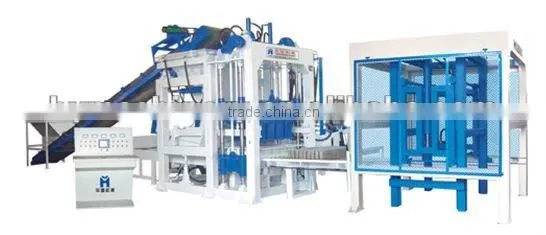

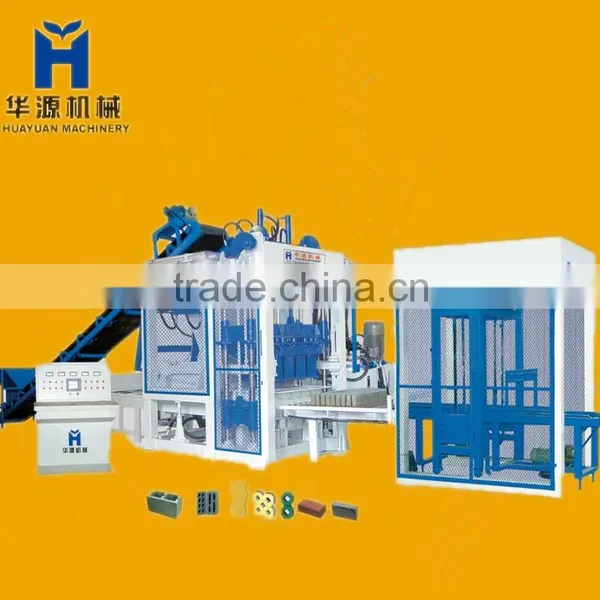

QT8-15 Full-Automatic Concrete Block Making Machine Granite Block Cutting Machine

1,High automatic and easy to operate ;
2,granite block cutting machine
3,Two cylinders to make it high pressure.

1.Main technical Specifications:

Oriented column: made of special steel, chrome plated , and can bear powerful suppress and wears well.

Mold head: synchronize with mechanic, electricity and hydraulic. Products made by the same pallet are within narrow degree of errors.

Feeding: Sensor and hydraulic  are droved synchronically in proportion, the force to swing material and arch-breaking generates strong centrifugal power to feed materials, which results in rapid feeding and particularly good for thin-walled products with multi-holes..

Vibration: Hydraulic drive and multi-source vibration system, the computer-controlled hydraulic drive generated vertical synchronization. Adjustable frequency makes it possible to feeding in low-frequency. High frequency operation guarantees good effects of different raw materials and the vibration acceleration is up to 17.5.

Control system: Computer control, HMI, electric parts uses brands like Mitsubishi. With experienced production actions, design philosophy integrated international and Chinese trends. To operate it requires small training and no experts. Its strong memory makes it possible to be upgraded.

Store and distribute materials devices: the computer-controlled material supply avoids suppressing materials, and ensures well-distributed feeding and stable and well product intensity.

Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .

multiple uses, it can produce all type of standard building blocks by changing mould.

1,Multi-holes block and hollow block .

2,Ceram site heat preservation block.

3,Composite heat preservation concrete block

The above production come with good heat preservation performance, and it meets the new national energy conservation policy.

2.Main technical parameters

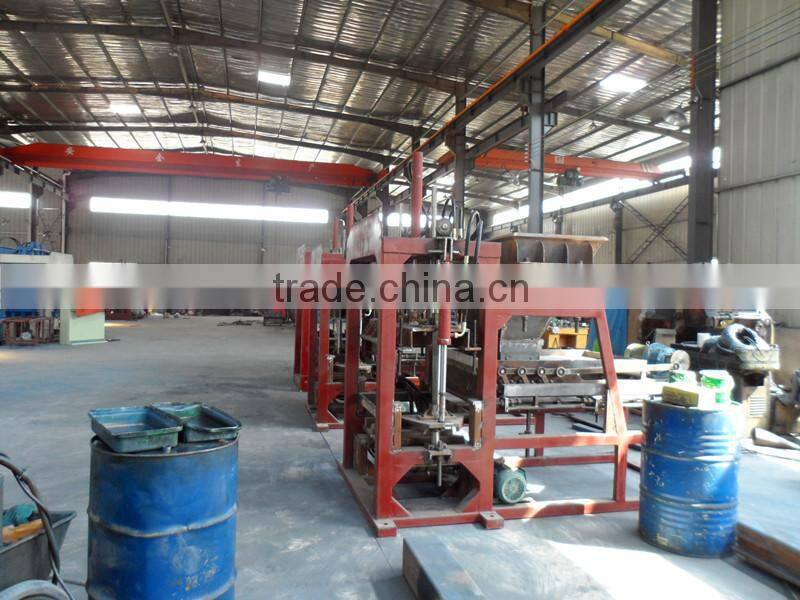

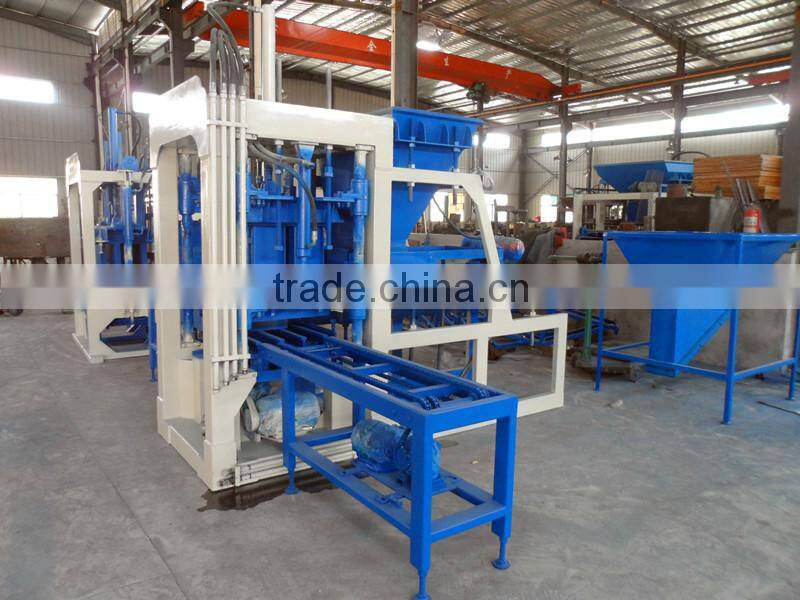

3.Worksho and products Display:

4.Block and Brick Sample:
