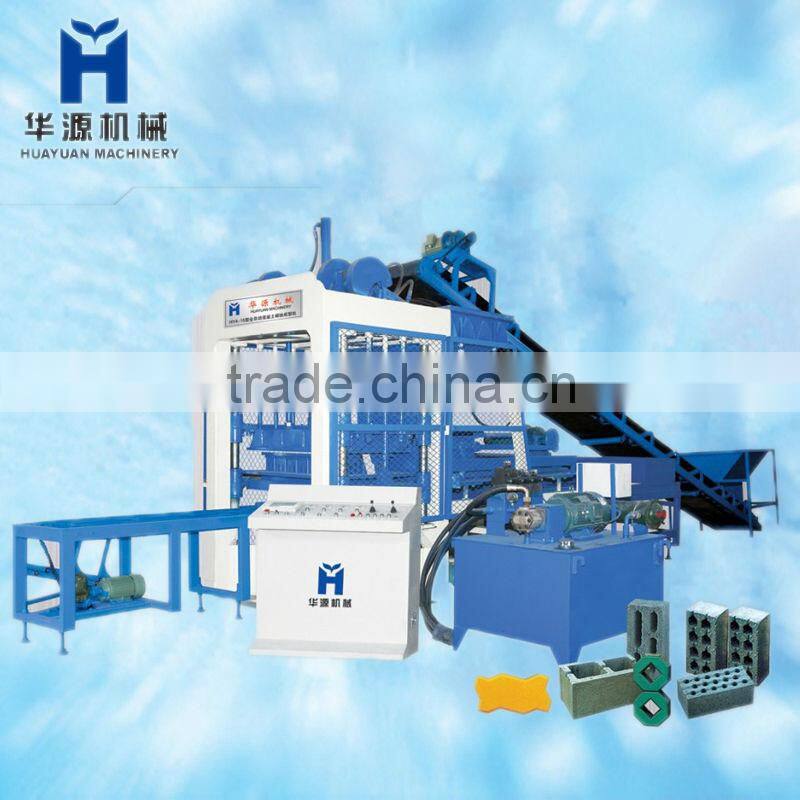

Help CenterNewly Advanced QT4-15 Cement Brick Making Machine Plastic Pallets for Brick Block Making Machine
Related Products
-
HY10-15 Full Antomatic Block Making Machinery Concrete Cutting MachineUS$ 85,000 - 92,000MOQ: 1 Unit -
HY 2012 High Competitive Low Cost Brick Making Machine Mini Cement PlantUS$ 58,000 - 65,000MOQ: 1 Set
-
HY6-15 Highly Output Concrete Block Making Machine Fly Ash Brick Making Machine in IndiaUS$ 30,000 - 36,000MOQ: 1 Set
-
HY Small Size Block Making Machine Portable Block Making MachineUS$ 29,000 - 35,000MOQ: 1 Set
-
2013 Newly Advanced QT4-15 Cement Brick Making Machine Used Concrete MixersUS$ 49,000 - 55,000MOQ: 1 Set
1,plastic pallets for brick block making machine
2,small scale industries machines
ncrete block making machine
1,Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Useing intellent PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
2, Main technical parameters:
Cycle Time | 15-20(s) | Total Power | 23.6kw |
Vibration Type | hydraulic or moto vibration | Vibration Frequency | 3800-4500(Times/sub) |
Machine Dimension | 8200×4350×2700(mm) | Pallet Size | 850×560×20(mm) |
Vibration Force | 68KN | Gross Weight | 6200(kg) |
Production/Mould | 4pcs/m (390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm) | Products/8h | 5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm 9636-28800pcs (200x100x60mm) |
3Brick Sizes and capacity:
Brick | Sizes | Output/ mould | Output/Shift(8hours) | picture |
Blocks | 390x190x190mm | 4 | 5,760-7,680 |
|
Porous bricks | 240x115x90mm | 12 | 17,280-23,040 |
|
Interlocking block | 200x100x60mm | 15 | 21,600-28,800 |
|
Solid bricks | 240x115x53mm | 24 | 34,560-46,080 |
|
4,Block production line
5,QTY4-15 hollow block making machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : five or eight.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:
(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. Raw material consumption per day:100-130T
6. water consumption per day:3%-5% of raw material Weight.
6.QTY4-15 Block making machine guarantee:
Our hollow block making machine is of one year guarantee,during the period we could supply spare parts if they are broken.
7,QTY4-15 block making machine production pressure:
Hollow blocks can reach 8-10Mpa,Solid bricks can reach 10-12Mpa,so they have a high pressure,can be used widely.

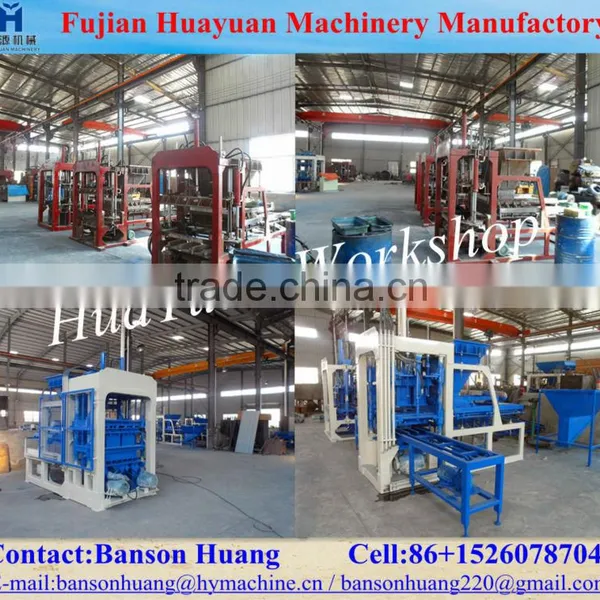

8,Workshop & Products display
9, Block and brick Sample:
