Help Center2013 the Best Price QT6-15 Automatic Manual Hollow Block Making Machine,concrete Block Factory for Sale, Fly Ash Brick Machine
Related Products
-
2013 High Competitive QT4-15 Automatic Cement Brick Machine,fly Ash Brick Making Machine, Brick Making Machine PriceUS$ 25,000 - 32,000MOQ: 1 Set -
HY 2012 High Competitive Low Cost Brick/Block Machine QT8-15 Block MachineryUS$ 58,000 - 65,000MOQ: 1 Set
-
2013 Newly (Low Investment)QT6-15 Concrete Block Making Machine Brick Making MachineUS$ 50,000 - 56,000MOQ: 1 Set
-
(With SIEMENS Hydraulic System From Germany) HY10-15 Automatic Block Making Machinery, Made in China Block Making MachineryUS$ 85,000 - 92,000MOQ: 1 Unit
-
2013 Newly Advanced QT4-15 Cement Brick Making Machine Manufacturing MachineUS$ 49,000 - 55,000MOQ: 1 Set
1.manual hollow block making machine
ncrete block factory for sale
3.fly ash brick making machine
4. fly ash brick machine
1.Main technical parameters:
Cycle Time |
15-20 Sec |
Vibration Type |
hydraulic vibration |
Total Power |
37.4kw |
Vibration |
68(KN) |
Vibration Frequency |
3800-4500(times/sub) |
Gross Weight |
7500(kg) |
Pallet Size |
880×680×20(mm) |
Machine Size |
9450×3300×2700mm |
Rated Pressure |
25(mpa) |
Stacking Machine Power |
2.25kw |
2.Main technical Specifications:
1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.
2. Easy to change mechanical action according to different raw materials.
3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.,
Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .
multiple uses, it can produce all type of standard building blocks by changing mould.
1,Multi-holes block and hollow block .
2,Ceram site heat preservation block.
3,Composite heat preservation concrete block
The above production come with good heat preservation performance, and it meets the new national energy conservation policy.
Cycle Time |
15-20(s) |
Total Power |
37.4(kw) |
Vibration Type |
hydraulic vibration |
Vibration Frequency |
3800-4500(Times/sub) |
Machine Dimension |
9450*3300*2700(mm) |
Pallet Size |
850×680×20(mm) |
Vibration Force |
68KN |
Gross Weight |
7500(kg) |
Production/Mould |
Productions/8hours(pcs) |
||
6pcs/m (390x190x190mm) |
8,640---11,520 |
||
15 pcs/m (240x115x90mm) |
21,600---28,800 |
||
30 pcs/m (240x115x53mm) |
43,200---57,600 |
||
18-21 pcs/m (200x100x60mm) |
About 27,000 |
||
3. QTY6-15A hollow concrete block machine other information:
1. Area: Workshop area: 150-200m2, all factory area 3000m2, the bigger, the better.
2. Workers : two or three
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight::
(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG
5. raw material consumption per day:160-170T
6. water consumption per day:3%-5% of raw material .Weight.
4. Production Process:
5.Production Flow Introduction:
6.Block & Brick Sample:
7. Product Show:

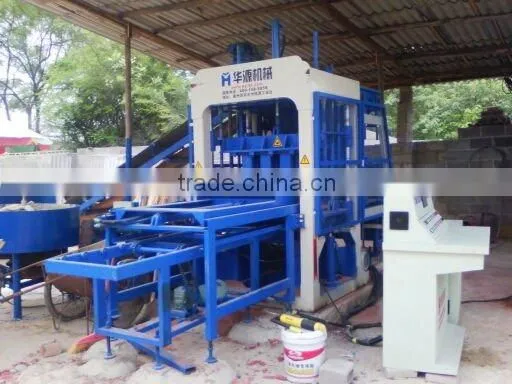

8. Customer Production Field:
