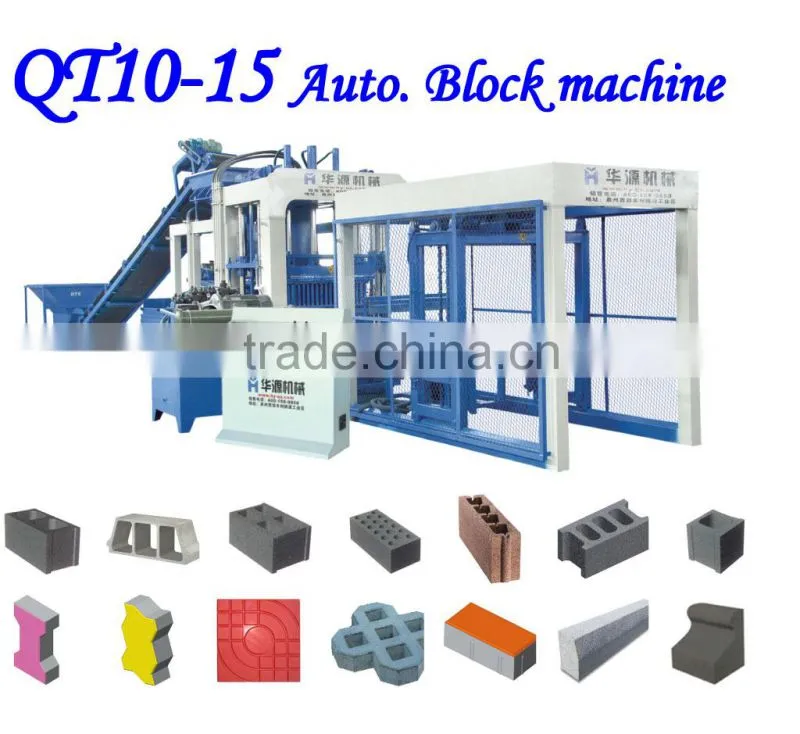

Help Center(With SIEMENS Hydraulic System From Germany) HY10-15 Automatic Block Making Machinery, Made in China Block Making Machinery
Related Products
-
2013 Newly Advanced QT4-15 Cement Brick Making Machine Manufacturing MachineUS$ 49,000 - 55,000MOQ: 1 Set -
China Best Full Antomatic Block Making Machine, Brick MachineUS$ 85,000 - 92,000MOQ: 1 Unit
-
2013 High Competitive QT6-15 Automatic Manual Hollow Block Making Machine, Concrete Block MachineUS$ 40,000 - 70,000MOQ: 1 Set
-
2013 The Best Price of Block Making Machine, Price Concrete Block MachineUS$ 29,000 - 35,000MOQ: 1 Set
-
HY Small Size Block Making Machine Fly Ash Brick Making Machine in India PriceUS$ 29,000 - 35,000MOQ: 1 Set
ncrete block making machine
2.block making machinery
3.cement block making machine
4.brick making machines
1,Main technical parameters:
| Cycle time: 15-20(s) | Vibration Type: hydraulic or moto |
| Total Power: 45.1(kw) | Vibration Force: 105(KN) |
| Vibration Frequency: 3800-4500(times/sub) | Gross Weight: 12800(kg) |
| Pallet size : 1100×880×25mm | Machine Size:11500×4050×2800(mm) |
| Rated Pressure: 31.5(mpa) | |
| Block Specification : | Production per shift (8 hours) |
| 390×190×190mm 10(pcs) | 14,400-19,200(pcs) |
| 240×115×53mm 51(pcs) | 73,440-97,920(pcs) |
| 240×115×90mm 24(pcs) | 34,560-46,080(pcs) |
| 200×100×60mm 31(pcs) | about 44,640(pcs) |
2,Main Technical Specifications block making machinery :
A. Intelligence PLC touch screen and pure electrical element (high automatic and easy to operate ) ;
B. Arch breaking type of rapid feeding device (better feeding multi-hole bricks with better uniformity) ;
C. Forming production faster and with higher compactedness ;
D. High-heat treatment special technology (to make the mould more durable and more firm) .
Raw materials :crushed stone ,sand, cement, many types of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite , etc.
Multiple uses. It can produce all types of standard building blocks by changing mould.
A, Multi-holes block and hollow block ;
B, Ceramsite heat preservation block;
C, Composite heat preservation concrete block.
3.Clay Brick Sizes and capacity block making machinery :
Brick |
Sizes |
Output/ mould |
Output/Shift(8hours) |
picture |
Blocks |
390x190x190mm |
10 |
14,400-19,200 |
|
Porous bricks |
240x115x90mm |
24 |
34,560-46,080 |
|
Interlocking block |
200x100x60mm |
31 |
About 44,640 |
|
Solid bricks |
240x115x53mm |
51 |
73,440-97,920 |
|

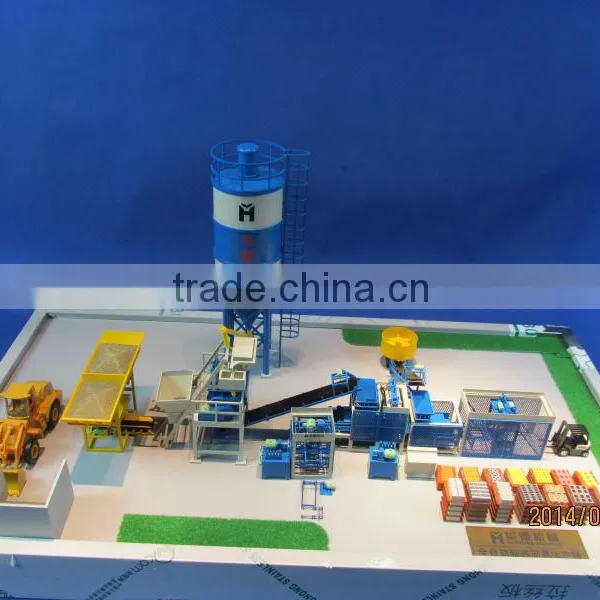

4. Production Flow Introduction block making machinery
6.Block and brick Sample block making machinery :
