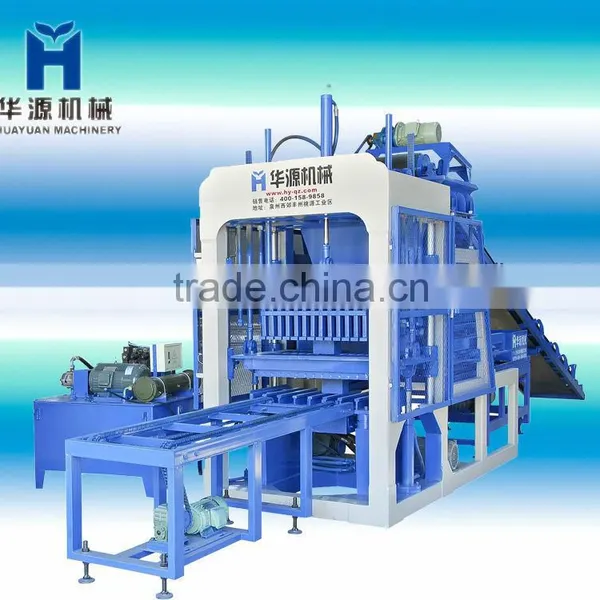

HUAYUAN block making machine offer in malaysia

Specifications

1,High automatic and easy to operate ;
2,automatic PLC control;
3.multifuntion,superior quality;
4.double moulding system.

Main technical Specifications:

1. It consists of mechanic, electricity and hydraulic in one machine, and it runs automatically in circulation each procedure is interlocked, and the pressure is automatically assigned.

2.  Useing  intellent PLC control system, PCL touch screen , easy to change mechanical action according to different raw materials.

3. Fault self-diagnosis, comport for remote control guarantees technical support and maintenance.



Raw materials :crushed stone ,sand, cement, etc; many type of industrial waste, like, lime, fly ash, slag, coal gangue, gravel, perlite, ect. .

multiple uses, it can produce all type of standard building blocks by changing mould.

1,Multi-holes block and hollow block .

2,Ceram site heat preservation block.

3,Composite heat preservation concrete block

The above production come with good heat preservation performance, and it meets the new national energy conservation policy.



Cycle Time	15-20(s)	Total Power	22(kw)
Vibration Type	hydraulic or moto vibration	Vibration Frequency	3800-4500(Times/sub)
Machine Dimension	8200×4350×2700(mm)	Pallet Size	850×560×20(mm)
Vibration Force	68KN	Gross Weight	6200(kg)
Production/Mould	4pcs/m (390x190x190mm) 12 pcs/m (240x115x90mm) 24 pcs/m (240x115x53mm) 15 pcs/m (200x100x60mm)	Products/8h	5236-7680pcs(390x190x190mm) 17280-23040pcs(240x115x90mm) 34560-46080pcs(240x115x53mm 9636-28800pcs (200x100x60mm)
